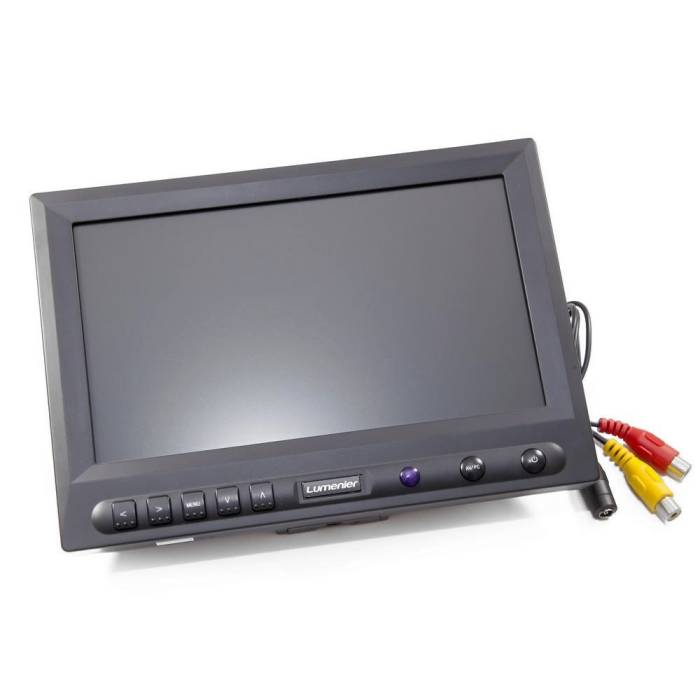

8" Lumenier LCD FPV Monitor

8" Lumenier LCD FPV Monitor

Back Ordered

Only left for same day shipping. Order now!
8" Lumenier LCD FPV Monitor
A 8" super bright LCD screen, an excellent choice for a FPV monitor.

About this product

This FPV monitor is a medium sized 8" super bright LCD screen. Excellent choice for your FPV monitor, or as a secondary backup screen for your friends to watch. The 450cd/m² is plenty bright for outdoor applications where you need a bright screen, and the included sun shade will help keep unwanted light off the screen, reducing glare.

This monitor will not go to a blue or black screen when video signal is lost or static. Perfect for an FPV application where you don't want your screen to go blank.


  • Image: 8" TFT LCD
  • Resolution: 800x480
  • Input resolution up to 1920x1440
  • Horizontal frequency range: 30-60KHz
  • Field frequency range: 60-75Hz
  • Pixel Size 0.0736(W)x0.207(H)mm
  • Display Ratio: 16:9
  • Brightness: 450cd/m²
  • Viewing Angle: 70°/70°(L/R) 50°/70°U/D
  • Contrast Ratio: 500:1
  • Response time: 15ms
  • Input Voltage: DC 6-16V (2s-4s compatible)
  • Speaker built in, 1W
  • Power Consumption: ≦8W
  • Input Singal:  RCA video and audio
  • NTSC/PAL Manually Selectable in Menu
  • Size: 209 x 147 x 35 mm
  • Weight: 620g with cables and sun shield
  • Mounting: Standard 1/4-20 tripod and VESA mounts


  • 8" LCD Monitor
  • Sun Shield with Hook and Loop Strips
  • 2.1mm Barrel plug power adapter with pigtail for easy hookup to FPV ground station.(center pin positive)
  • A/V Breakout Cable RCA video and audio
  • Manual

More Information

SKU 1277
UPC (GTIN) 652118489736
Manufacturer Lumenier
Item Returns This item can be returned
