7" Lumenier Ultra-Thin IPS Panel FPV Monitor w/ 5.8GHz 32CH Diversity Rx

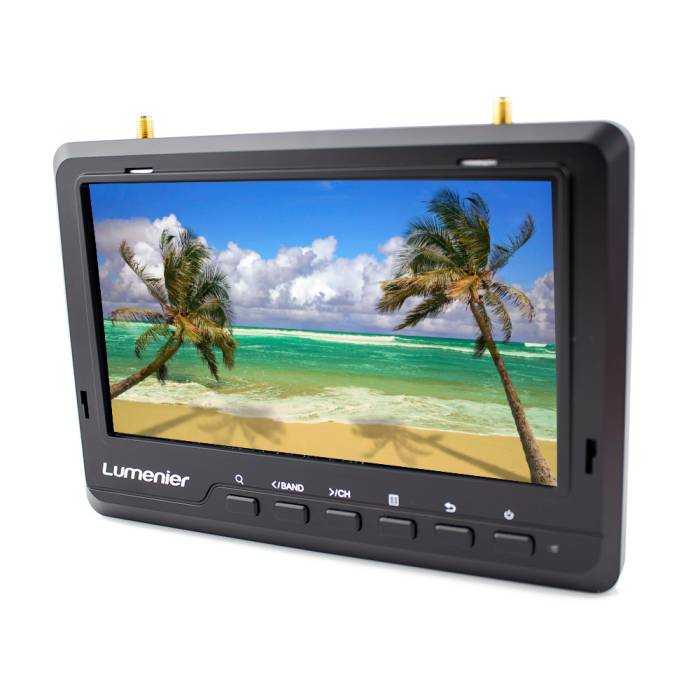

A 7" super bright and slim IPS high resolution screen with a 5.8GHz 32CH diversity receiver including Raceband.
Share

About this product

This super slim FPV monitor features a 5.8G 32CH Diversity Receiver 7” IPS Screen with a super bright LCD 600cd/m². The input signals are AV and RF. The OSD displays battery status and channel information. This monitor is an excellent choice for your primary FPV monitor, or as a secondary backup screen for your friends to watch. The 600cd/m² is plenty of brightness for outdoor applications where you need a bright screen, and the included sun shade will help keep unwanted light off the screen, reducing glare. Perfect for outdoor operation. One of the best features of this monitor is that it will not go to a blue or black screen when video signal is lost, instead, the image turns to white noise. This monitor also comes equipped with Raceband frequencies listed in the image below.

Specifications

  • Image: 7" IPS Panel
  • Dual 32 channel 5.8GHz diversity receiver (SMA)
  • Access the Auto RF Search feature by holding the "CH" button for 2 seconds
  • Resolution: 1024x600
  • Horizontal frequency range: 30-60KHz
  • Field frequency range: 60-75Hz
  • Display Ratio: 16:9
  • Brightness: 600cd/m²
  • Backlight: LED
  • Viewing Angle: 85°/85°(L/R) 85°/85°U/D
  • Contrast Ratio: 800:1
  • Response time: 10ms
  • Input Voltage: DC 9-18V (2s-4s compatible)
  • Speaker built in, 1W
  • Power Consumption: ≦13W
  • Input Singal:  RCA video and audio, RF
  • HDMI Mode 480i /480p /576i /576p,720p /1080i /1080p (50/60Hz)
  • NTSC/PAL Manually Selectable in Menu
  • Size: 191mm x 134mm x 23mm
  • Mounting: Standard 1/4"-20 tripod
  • Includes Raceband frequencies

Includes

  • 7" Super Slim LCD Monitor with 5.8GHz 32CH diversity receiver.
  • 2x 5.8GHz antennas (2 whip)
  • Removable plastic pop-up Sun Shield
  • AC/DC wall adapter
  • Manual

More Information

SKU 3064
UPC (GTIN) 652118489682
Manufacturer Lumenier
NDAA Compliant No
Item Returns This item can be returned
