7" Lumenier 1000cd/m² Panel FPV Monitor w/ 5.8GHz 39CH Diversity Rx, Battery, DVR

7" Lumenier 1000cd/m² Panel FPV Monitor w/ 5.8GHz 39CH Diversity Rx, Battery, DVR

Out of Stock

Only left for same day shipping. Order now!
7" Lumenier 1000cd/m² Panel FPV Monitor w/ 5.8GHz 39CH Diversity Rx, Battery, DVR

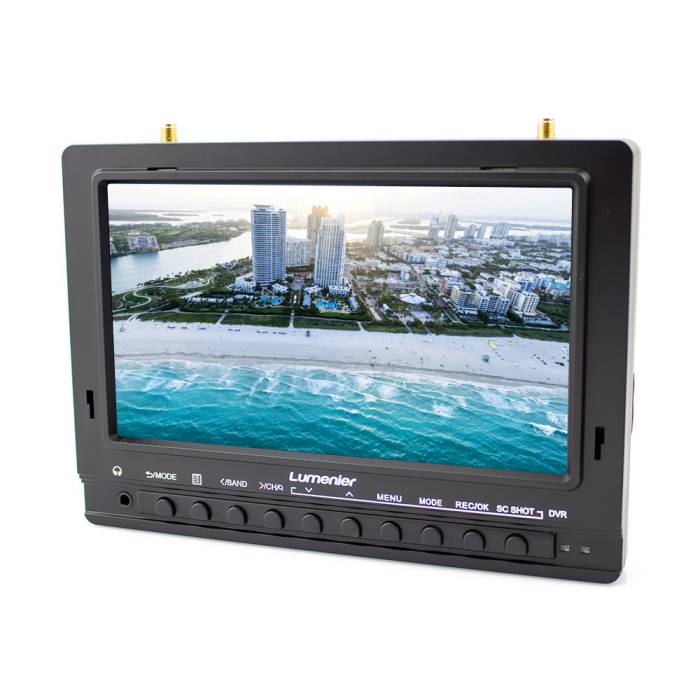

A 7" super bright and slim 1000cd/m² LCD LED lit screen with a 5.8GHz 39CH diversity receiver including Raceband and built in rechargeable battery.

About this product

This 7" FPV monitor is a medium sized 7" screen with a super bright LCD and 5.8GHz 39CH diversity receiver,  built in rechargeable battery. Excellent choice for your primary FPV monitor, or as a secondary backup screen for your friends to watch. The 1000cd/m² is plenty of brightness for outdoor applications where you need a bright screen, and the included sun shade will help keep unwanted light off the screen, reducing glare. The integrated rechargeagble battery keeps your FPV ground station compact and easy to use. This monitor will not go to a blue or black screen when video signal is lost, instead it will go to static. This monitor also comes equipped with raceband frequencies listed in the image below.


  • Image: High Brightness 7" TFT LCD
  • Dual 39 channel 5.8GHz diversity receiver (SMA)
  • Access the Auto RF Search feature by holding the "CH" button for 2 seconds
  • Resolution: 800x480
  • Built in rechargable battery (2200mAh 2s 7.4v LiPo)
  • Horizontal frequency range: 30-60KHz
  • Field frequency range: 60-75Hz
  • Display Ratio: 16:9
  • Brightness: 1000cd/m²
  • Backlight: LED
  • Viewing Angle: 70°/70°(L/R) 50°/70°U/D
  • Contrast Ratio: 500:1
  • Response time: 10ms
  • Input Voltage: DC 9-19V (2s-4s compatible)
  • Speaker built in, 1W
  • Power Consumption: ≦13W
  • Input Singal:  RCA video and audio, HDMI, RF
  • HDMI Mode 480i /480p /576i /576p,720p /1080i /1080p (50/60Hz)
  • NTSC/PAL Manually Selectable in Menu
  • Size: 188mm x 134mm x 33mm
  • Weight: 540g with battery
  • Mounting: Standard 1/4"-20 tripod


  • 7" Slim LCD Monitor with 5.8GHz 39CH diversity receiver.
  • Built in rechargable battery (2200mAh 2s 7.4v LiPo)
  • 2x 5.8GHz antennas (2 whip)
  • Removable plastic pop-up Sun Shield
  • AC/DC wall charger
  • Manual



Frequancy (MHz)

Ch1 Ch2 Ch3 Ch4 Ch5 Ch6 Ch7 Ch8
IRC / Fat Shark 5740 5760 5780 5800 5820 5840 5860 5880
IRC RaceBand 5658 5695 5732 5769 5806 5843 5880 5917
E 5705 5685 5665 5645 5885 5905 5925 5945
B 5733 5752 5771 5790 5809 5828 5847 5866
A 5865 5845 5825 5805 5785 5765 5745 5725

More Information

SKU 3065
UPC (GTIN) 652118489651
Manufacturer Lumenier
Item Returns This item can be returned
