RunCam Night Camera Prototype

The RunCam Night Camera Prototype is an advanced camera designed for low-light and nighttime applications, boasting a large sensor and versatile recording capabilities. It’s an ideal choice for enthusiasts and professionals looking to capture clear and detailed footage in various nighttime activities.

• Equipped with a large 1/1.8” sensor and sensitivity of 32000 e-/Lux-sec, ensuring exceptional low-light performance.
• Offers 2.7k @ 30fps recording capability, capturing high-quality videos even in challenging lighting conditions.

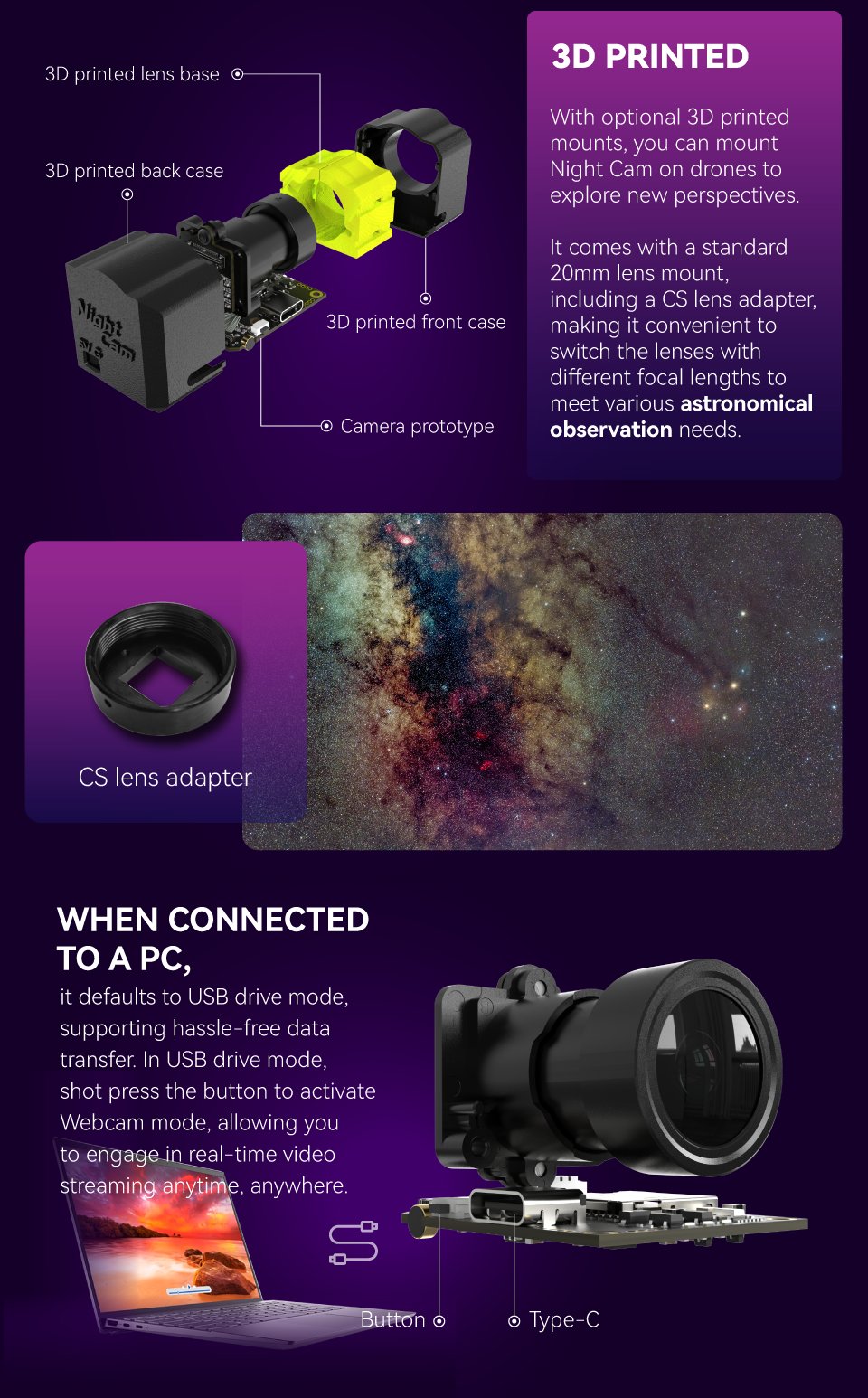

• Features a 3D printed lens base and back case, including a CS lens adapter, allowing for convenient lens switching to cater to different focal lengths and astronomical observation needs.
• When connected to a PC, it defaults to USB drive mode for easy data transfer. A short press of the button activates Webcam mode, enhancing its versatility.
• Designed as an ideal night companion, suitable for a range of applications like wildlife monitoring, capturing nightscapes, or engaging in astronomical observations.
• The camera’s specifications include a FOV of D:133° H:112° V:60°, automatic ISO and shutter settings, and MP4 video format.
• Connectivity is facilitated through a Type-C USB port, and it's powered by DC 5V (Molex 2P 1.25mm) with a current of 400mA@5V.
• Lightweight and compact, with the PCB weighing 20g and the printed shell weighing 32g, and dimensions of PCB: 3528mm and Printed Shell: 3831*34mm.

• Model: RunCam Night Cam
• Image Sensor: 1/1.8” Sensor
• Sensitivity: 32000 e-/Lux-sec
• Video Resolution: 2.7K@3~30fps (auto)
• Lens: FOV D: 133° H: 112° V: 60°
• ISO: Auto
• Shutter: Auto
• Video Format: MP4
• USB: Type-C
• Power: DC 5V (Molex 2P 1.25mm)
• Current: 400mA@5V
• Net Weight: PCB: 20g, Printed Shell: 32g
• Dimensions: PCB: 3528mm, Printed Shell: 3831*34mm

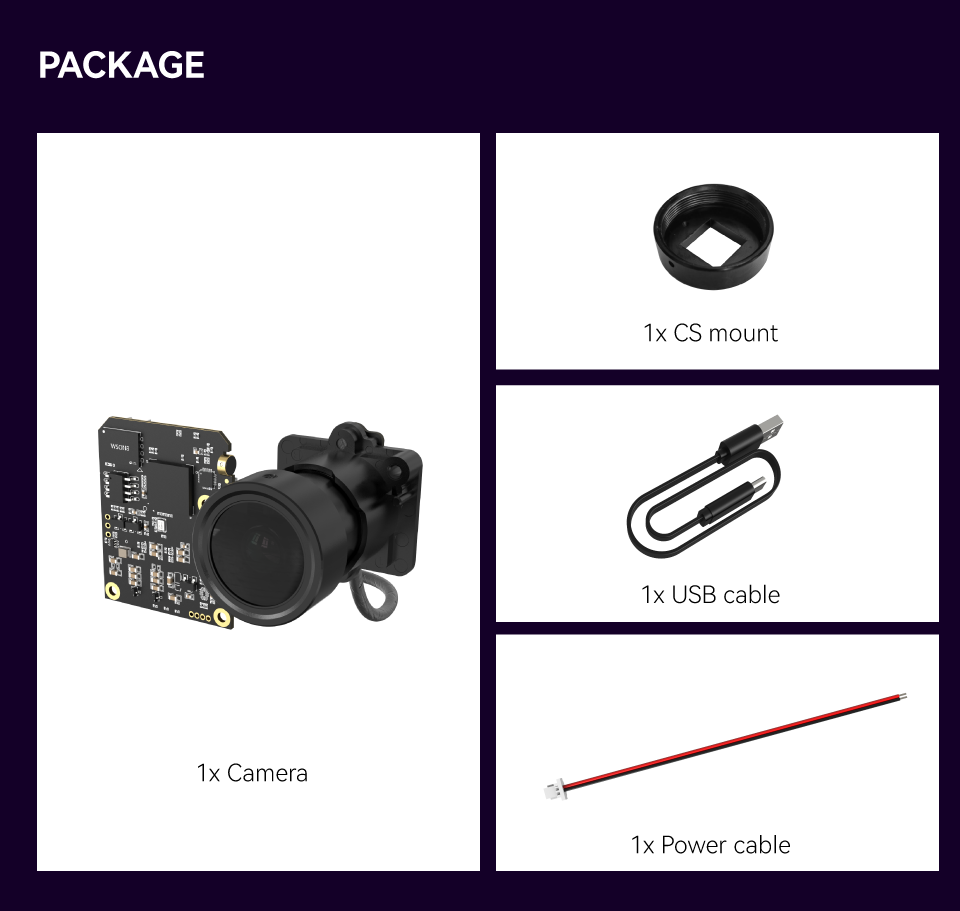

• 1x RunCam Night Camera Prototype
• 1x CS Mount
• 1x USB Cable
• 1x Power Cable
