Fat Shark Mojo 600TVL CCD NTSC FPV Camera
Fat Shark Mojo 600TVL CCD NTSC FPV Camera
$44.99
$9.99
Fat Shark Mojo 600TVL CCD NTSC FPV Camera

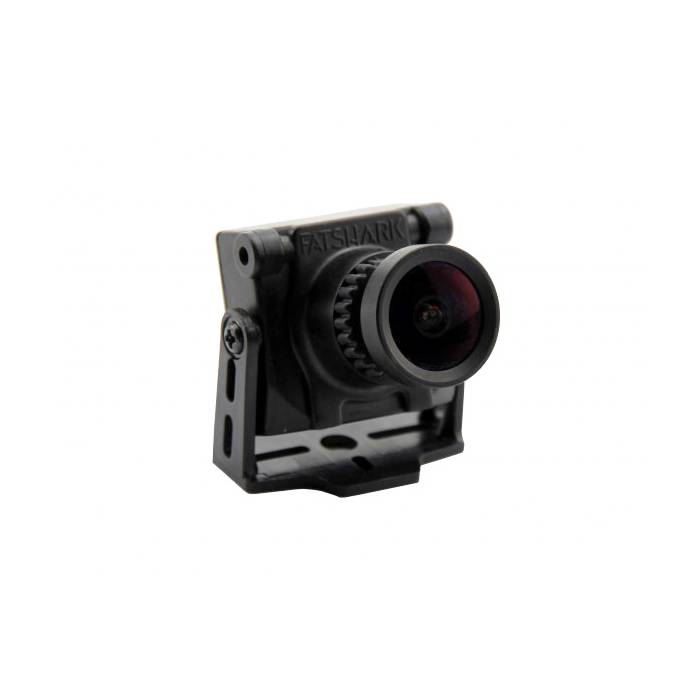

An ultra-low latency CCD camera from FatShark. Replacement for the FPV camera on the Immersion RC Mojo 230 drone.
About this product
The 600TVL CCD Mojo Eye CCD camera adds new digital signal processing technology (DSP) to the Racecam line of Fat Shark cameras. The result is superior light handling in a reliable, tried and trusted form factor. Expect better transitions from light to dark, better exposure when dealing with mixed sunny and shady images and a strong foundation on which the system is built.
Fat Shark’s series of 600TVL Race Cams are designed as solid, reliable FPV cameras for everyday flight. Priced aggressively for novice or budget pilots, the cameras are inexpensive enough to order in bulk and yet high performance enough to put on a competition level multicopter.
Features
- Ultra-low latency in line with industry peers
- 2.9mm, 148 degree Field of View wide angle race lens
- Integrated OSD with navigable settings for customized performance
- Industry-compatible pivot mounts for a wide range of quad configurations
- Hot-swap capability with the Immersion RC Vortex 230 Mojo quad
- NTSC (FSV1234) support
Specifications
- Mechanical: 25x27x12(lens) mm, 13.5g (plastic cased) + 5g/9g cable
- Maximum gain: 0-18
- Operating voltage: 3.5-6.5V
- Power: 110mA @ 5V
- Operating Temp: -10 to 60C
- Imager: 1/3" Sony Super HAD CCD
- Resolution: 600 TVL
- Lens FOV: 148 degrees
Includes
- 1x Mojo CCD Camera
- 1x Control Cable
- 1x 3pin Cable
- 1x Cloth
More Information
SKU | 8572 |
---|---|
UPC (GTIN) | 840630112342 |
Manufacturer | Fat Shark |
NDAA Compliant | No |
Item Returns | This item can be returned |
