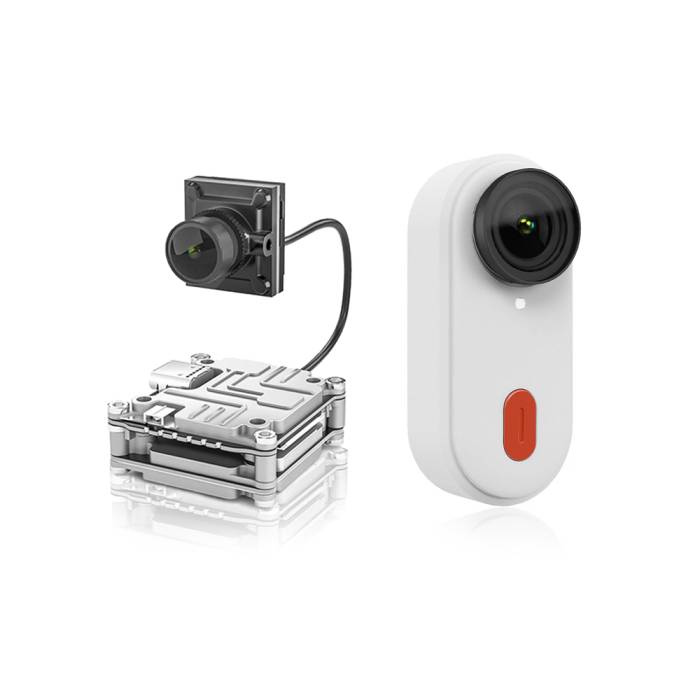

Caddx Nuts Combo - Nebula Pro Nano Vista Kit + Peanut Camera

Caddx Nuts Combo - Nebula Pro Nano Vista Kit + Peanut Camera

Back Ordered

Only left for same day shipping. Order now!
Earn
Caddx Nuts Combo - Nebula Pro Nano Vista Kit + Peanut Camera
The Caddx Nuts Combo combines the Nebula Pro Nano Vista Kit with the Caddx Peanut Camera for all of your HD action flying needs!

About this product

The Caddx Nuts Combo combines the Nebula Pro Nano Vista Kit with the Caddx Peanut Camera for all of your HD action flying needs!

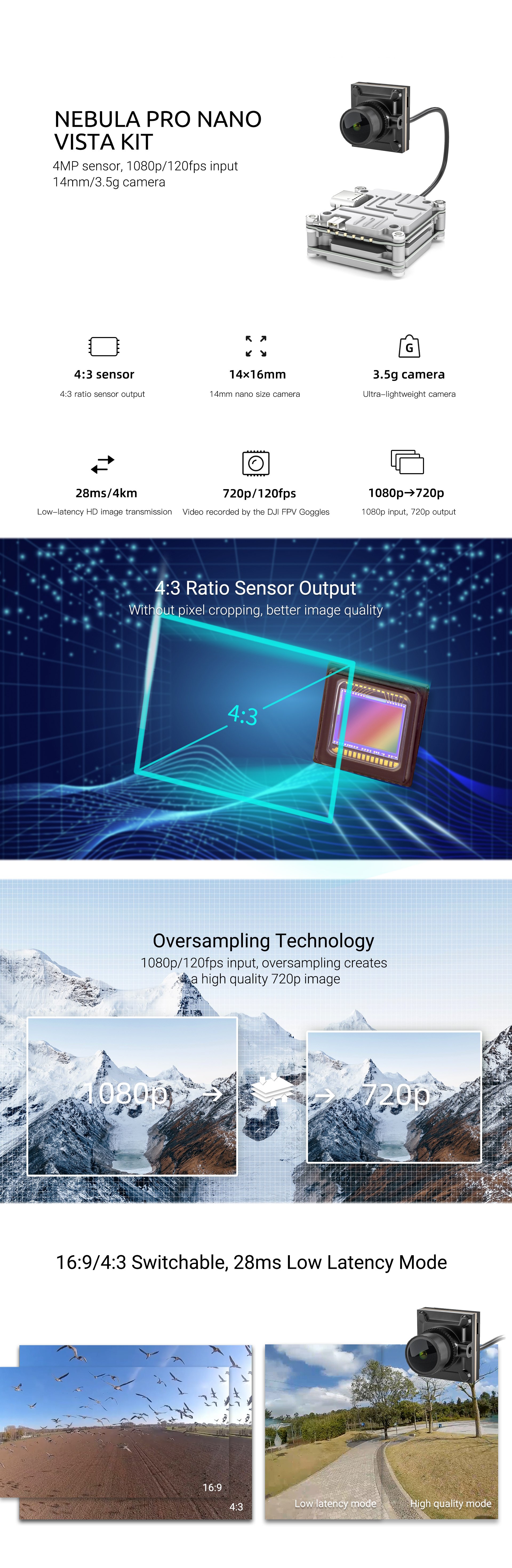

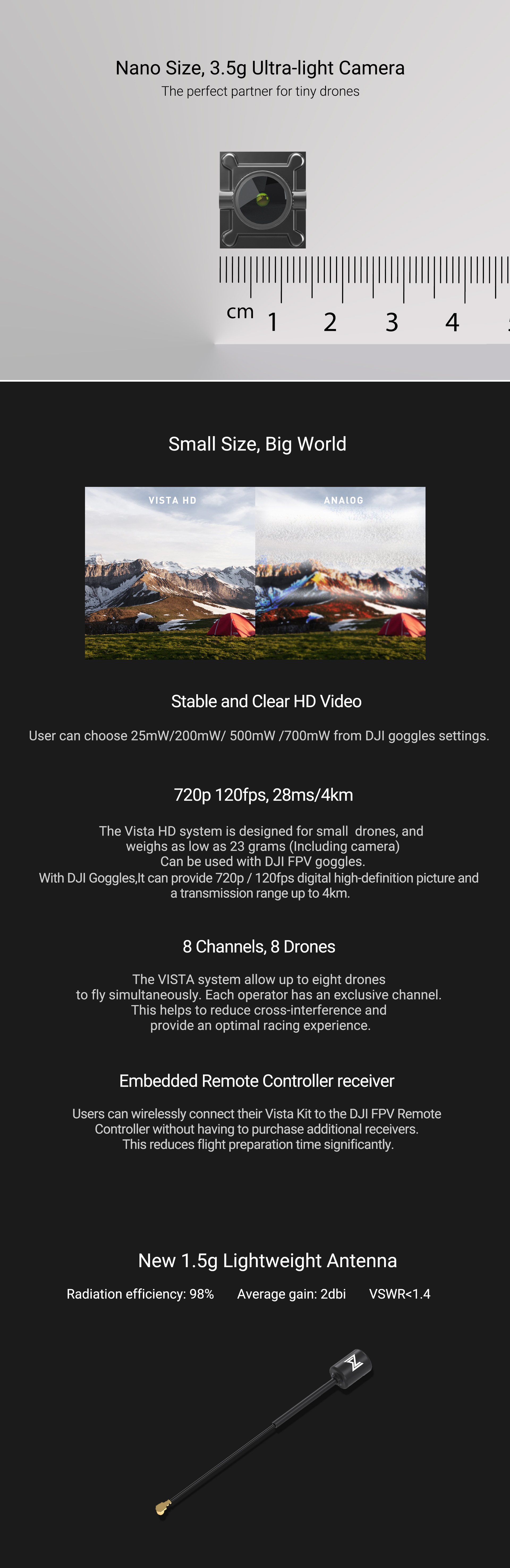

CADDX NEBULA PRO NANO VISTA KIT

The Nebula Pro Nano Vista Kit is another advanced video transmission module by Caddx and fully authorized by DJI that supports a 5.8GHz digital video signal and switchable 16:9/4:3 1080p to 720p image transmission. The Caddx Nebula Pro Nano with Vista is designed for FPV drones and it can be used with DJI FPV Goggles, which provide digital high-definition pictures and a transmission range up to 4km. The Vista system allows up to eight drones to fly simultaneously. Each operator has an exclusive channel, which helps reduce cross-interference and provides an optimal racing experience.

User can wirelessly connect their Vista Kit to the DJI FPV Remote Controller and DJI FPV Goggles without having to purchase additional receivers, as well as mount on racing drones!

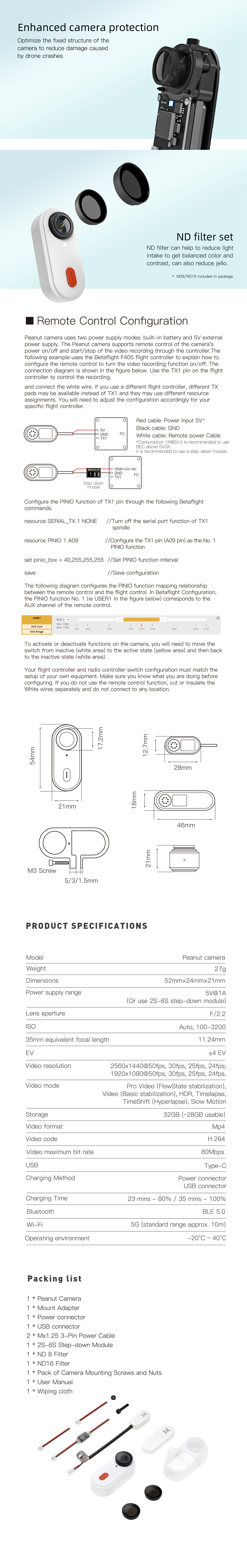

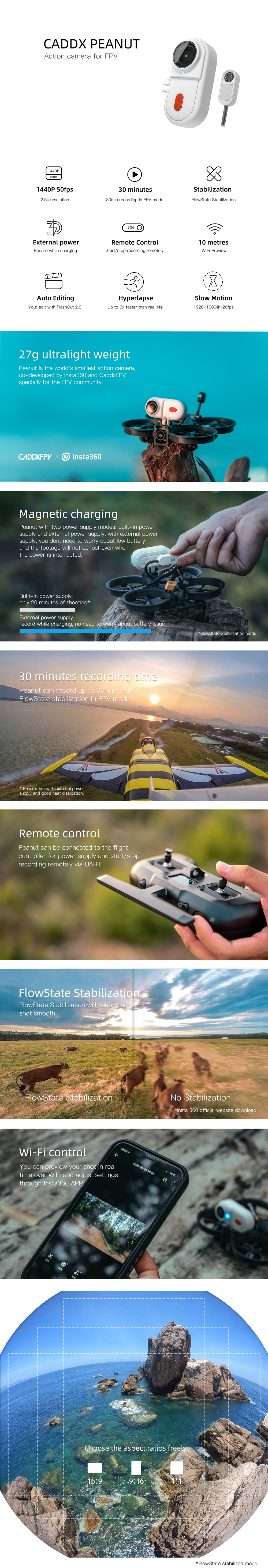

CADDX PEANUT ACTION CAMERA

Say hello to the smallest FPV Action camera yet, the Caddx Peanut! Recording at up to 2.5k at 50fps with super-smooth stabilization with FlowState, you'll get amazing HD footage to create amazing videos of your FPV skills.

Co-developed by Insta360 and Caddx, the Peanut was made specifically for the FPV community. No more hacks and customized settings just to get it looking good for FPV.

The Peanut is small and super lightweight (27g) so it won't slow you down. Able to be externally powered while recording, you don't have to worry about a low battery on the Peanut. If you prefer to use the built-in battery, that is also an option.

Features

CADDX NEBULA PRO NANO VISTA KIT

  • Switchable 16:9/4:3 1080p to 720p image transmission
  • Caddx Vista Unit with Nebula Pro Nano Camera
  • Caddx Peanut Action Camera
  • Weighs in at only 3.5 grams
  • Low 28ms latency

CADDX PEANUT ACTION CAMERA

  • Remote Control (Start/stop recording from your RC TX)
  • Remote Preview over WiFi w/ 10 Meter Range
  • External Power (Record While Charging)
  • 6X Hyperlapse & 120fps Slow Motion
  • 30 Minute Recordings in FPV Mode
  • 2.5k Resolution (1440p 50fps)
  • ND8 & ND16 Filters Included
  • Auto Editing w/ FlashCut 2.0
  • FlowState Stabilization
  • Ultra Light at 27g

Caddx Nebula Pro Nano Vista Kit

Caddx Nebula Pro Nano Vista Kit

Specifications

CADDX PEANUT ACTION CAMERA

  • Video mode: Pro Video (FlowState stabilization),Video (Basic stabilization), HDR, Timelapse, TimeShift (Hyperlapse), Slow Motion
  • Input Voltage: 5V 1A (or use 2-6S Step Down Module)
  • Video Resolutions:
    • 2560x1440@50fps, 30fps, 25fps, 24fps
    • 1920x1080@50fps, 30fps, 25fps, 24fps
  • Charging Time: 23min to 80%, 35min to 100%
  • Charging Method: USB-C, Power Connector
  • 35mm equivalent focal length: 11.24mm
  • Safe Operating Temp: -20° to 40°C
  • Storage: 32gb (~27gb useable)
  • Video Max Bitrate: 80Mbps
  • Dimensions: 52x24x21mm
  • Wifi: 5GHz (~10m Range)
  • Lens aperture: F/2.2
  • ISO: Auto, 100-3200
  • Video Codec: H.264
  • Video Format: MP4
  • Bluetooth: BLE 5.0
  • Weight: 27g
  • EV: +4 EV

CADDX NEBULA PRO NANO CAMERA

  • Latency: 12-28ms (low latency mode), 30-40ms (high quality mode)
  • Image Sensor: 1/3 inch CMOS Sensor
  • Field of View: 150°(D);122°(H);93°(V)°
  • Aspect Ratio: 16:9 & 4:3 (Switchable)
  • Dimensions: 16.5x16x14mm
  • Resolution: 720p/120fps
  • Lens Size: 2.1mm f/2.1
  • Cable Length: 8cm
  • Aperture: F/2.0
  • Weight: 3.5g

CADDX VISTA UNIT

  • Min.latency: (end-to-end) Low Latency Mode (720p 120fps): 21-28ms
  • Transmitter Power: (EIRP) FCC/SRRC/MIC: <30dBm / CE: <14dBm
  • Max.Transmission Distance: FCC/SRRC: 4km / CE: 0.7km
  • Power Output: 25mW / 200mW / 500mW / 700mW
  • Supported Flight Controller System: F3 / F4 / F7
  • High Quality Mode: (720p 60fps): 30-40ms
  • I/O Interface: USB-C, Ipex3, 3-in-1 port
  • Operating Frquency: 5.725-5.850GHz
  • Dimensions: 30x29x13mm
  • Weight: 20.8g (unit only)
  • Input Power: 7.4-26.4V

Recommended (Not Included)

Upgrade your Vista HD system with a smaller and lighter antenna!

Includes

CADDX NEBULA PRO NANO VISTA KIT

  • 1x Caddx Nebula Pro Nano Vista Kit w/ 8cm Coaxial Cable
  • 2x M2 Screws 3/4/5mm
  • 1x User Manual
  • 1x 3-in1 Cable
  • 1x Antenna

CADDX PEANUT ACTION CAMERA

  • 1x Caddx Peanut Action Camera
  • 2x Mx1.25 3-Pin Power Cable
  • 1x 2-6S Step-Down Module
  • 1x Lens Cleaning Cloth
  • 1x Power Connector
  • 1x USB Connector
  • 1x Mount Adapter
  • 1x Hardware Kit
  • 1x ND16 Filter
  • 1x ND 8 Filter
  • 1x Manual


More Information

SKU 18056
UPC (GTIN) 764613343847
Manufacturer Caddx
NDAA Compliant No
Item Returns This item can be returned
