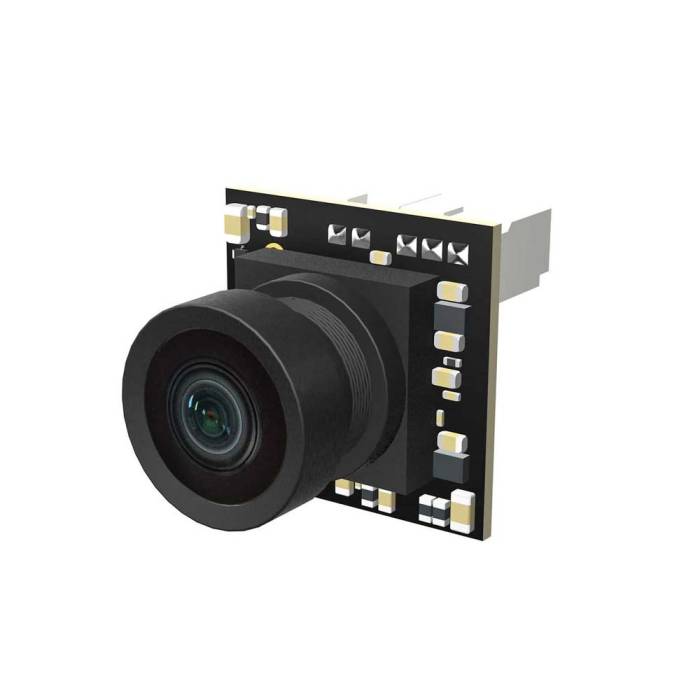

Caddx Ant Lite 1200TVL FPV Camera (FPVCycle Edition)

The Caddx Ant Lite 1200TVL FPV Camera is a micro camera that comes with a 1.8mm lens. Similar to the Caddx Ant camera, the Lite version uses the same electronics and sensors; however, the only difference is the camera lens and lens mounting apparatus. The lens selected for the Lite version was chosen among a dozen options and is slightly sharper than the standard Ant lens.

The Ant Lite (FPVCycle Edition) features a camera ratio of 4:3, NTSC and PAL (switchable), 1/3" CMOS sensor, global WDR, among other specs that make this camera great for flying small builds!

Specifications

• Model: Caddx Ant lite
• Image Sensor: 1/3" CMOS Sensor
• Horizontal Resolution: 1200 TVL
• TV System: NTSC and PAL(switchable)
• MENU: Support
• IMAGE: 4:3
• Synchronization: Internal
• Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000
• S/N Ratio: >52dB (AGC OFF)
• Video Output: CVBS
• Lens: 1.8mm/F2.5
• Min. illumination: 0.001Lux
• Auto Gain Control: YES
• BLC: YES
• WDR: Global WDR
• DNR: 3D DNR
• Dimensions: 14* 14mm
• Wide Power Input: DC 5-24V
• Work Temperature: -20°C~+60C
• Work Humidity: 20%~80%
• Weight: 1.7 g (N.W.)

Includes

• 1 x Caddx Ant Lite 1200TVL FPV Camera (FPVCycle Edition)
