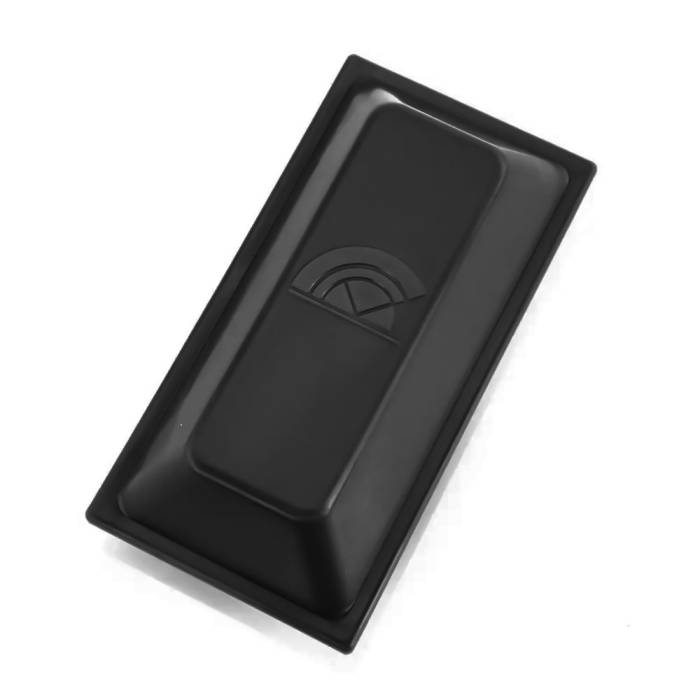

Offering both high gain and a wide flight beam, the Pepperbox Xtreme is the ultimate FPV antenna. It utilizes new Patent Pending vector-phasing technology also found in the Crosshair Xtreme giving both longer range and better signal clarity. You don’t have to compromise coverage for long range with a Pepperbox Xtreme.  With a gain of 13.25dbic and a flight beam of 165 degrees, the sky is yours to wander and explore as far as your aircraft can fly.

Specifications

• Gain: 13.25dbic
• Axial ratio: 0.99 (measured)
• Bandwidth: 5300-6300MHz
• Flight beam (horizontal): 165 degrees
• Flight beam (vertical): 65 degrees
• -3db point: +/- 55 degrees
• Polarizaton: Right Hand Circular (RHCP)
• Dimensions: 10.3cm x 5.2cm x 2cm
• Weight: 32.8g (1.15oz)

Includes

• 1x Pepperbox XTREME Antenna
• 1x 7.5cm SMA extension cable
