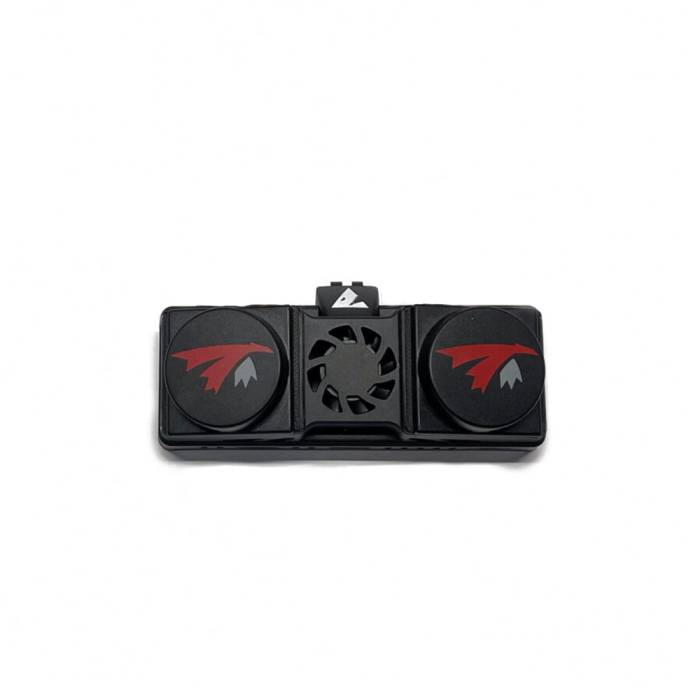

Swap the included patch antennas from the Shark Byte digital HD FPV system with high-quality X-AIR circular polarized directional antennas! This is the adaptation of the renowned X-AIR into a slick low profile mount for the Shark Byte RX5. Simply pop out the white panels and stick them on for an easy upgrade and a killer look. The improved beamwidth of 120deg yields an amazing flight experience even in the toughest conditions. Fill the remaining ports with a pair of singularity stubby antennas and performance has never been so convenient!

Crosshair-type elements provide a 10Dbi circular polarized beam.
The X-air MK II is an improved crosshair type antenna designed by TrueRC. Ultimately compact at this performances level.

Low profile design, only 15mm thick.
Most compact antennas of this gain level are at only 15mm thickness. Nice and clean install, almost as if it was from the factory.

Fit the Shark Byte digital HD FPV receiver perfectly.
An interface plate is added to the X-air that fix onto the Shark Byte RX5 front shroud. Included adhesive makes installation quick and easy.

Pair them with our ever-popular singularity stubby.
Add a pair of singularity stubby or OCP antennas for the ultimate in performances and convenience! Check options.

Features

• Circularly Polarized
• Direct replacement for stock patch antennas
• Compact low-profile design on your goggles, easy to store and transport
• High 10 dBic for unsurpassed long-range and signal penetration
• Large SWR and axial ratio bandwidth, work even out of the 5.8GHz band ‘
• U.fl connector snaps directly to the internal board.

Specfications

CP Antenna

• Bandwidth: 5.1GHz-7.0GHz
• Gain: 10 dBic
• Polarization: RHCP
• Beam-width*: 120deg
• Beam-width @-3dB**: 68deg
• Connector: U.fl
• Dimension: 34mm x 34mm x 15mm
• Weight: 8.8g each
• Include adhesive mount for installation onto Shark Byte RX5
• *Coverage of individual antenna where reception is at least equivalent to an omni.
• **Coverage of individual antenna where at least 70% of the max range is obtained.

Includes

• 2x X-AIR MK II Antennas

Note: Stubby antennas NOT included.
