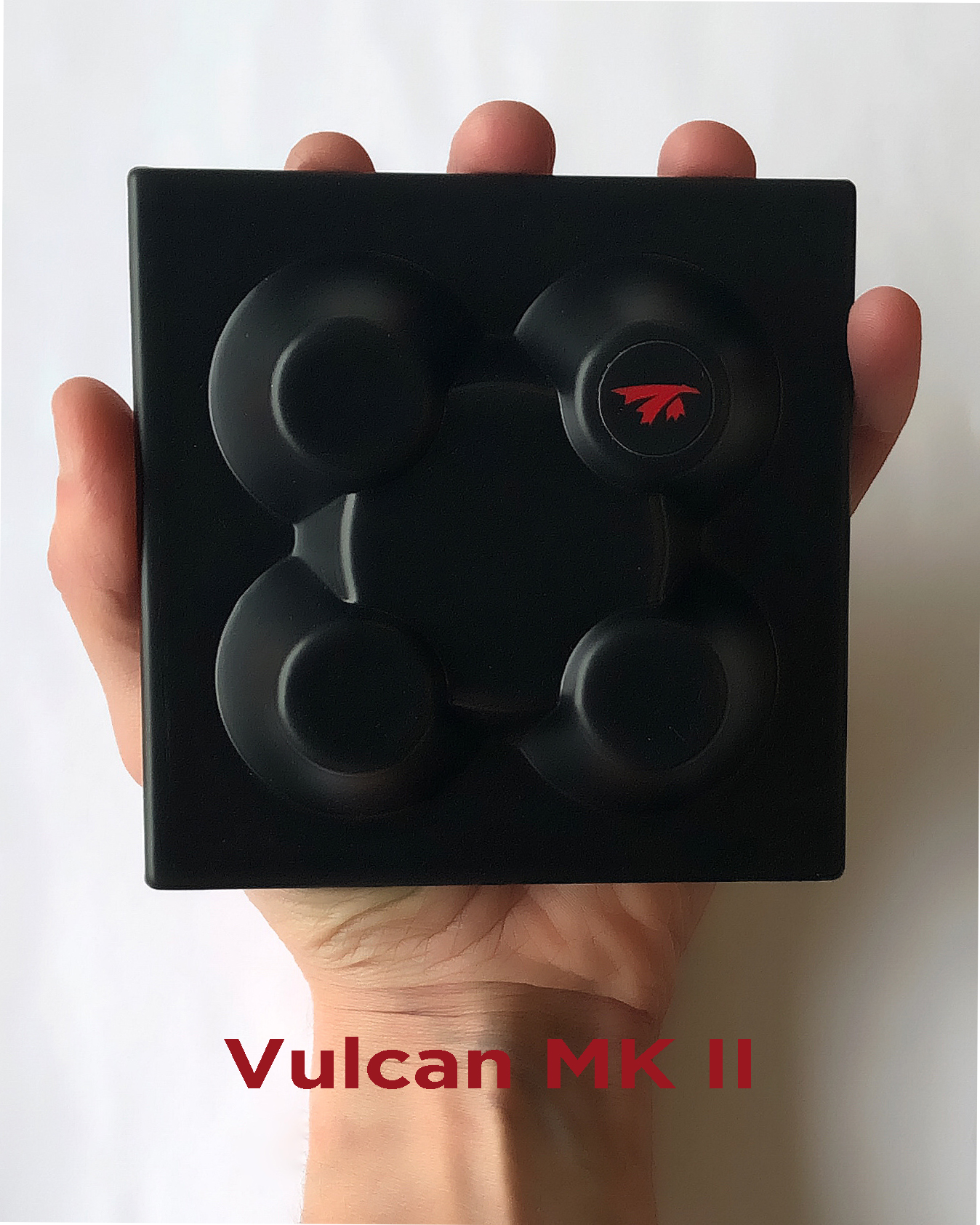

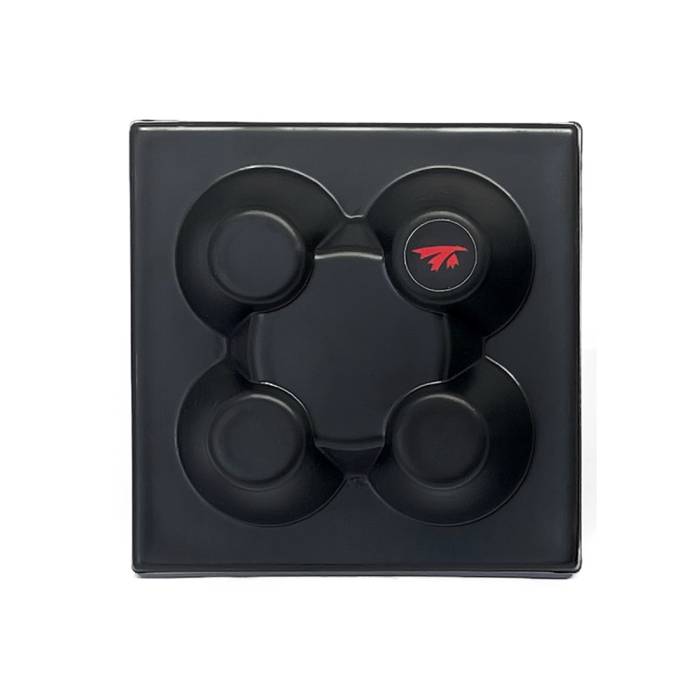

TrueRC Vulcan MK II 5.8GHz Antenna

Packing an awesome 18dBic punch, and now in an ultra-compact 103mm panel, the Vulcan MK II Antenna from TrueRC is pushing the limit! The “Vulcan II” is an array of four snipers adapted to work together as a single CP high-gain antenna.

Specifications

• Dimensions: 103mm x 103mm x 50mm
• Polarization: LHCP or RHCP
• Beam-width @-3dB**: 20deg.
• Frequency: 5.6-6.0GHz
• Beam-width*: 38deg
• Polarization: LHCP or RHCP
• Connector: SMA
• Gain: 18 dBic
• Weight: 80g

*Coverage where reception is at least equivalent to an Omni.
**Coverage where at least 70% of the max range is obtained.

Includes

• 1 x Vulcan MK 2 Antenna (LHCP or RHCP)
• 1 x SMA Connector
