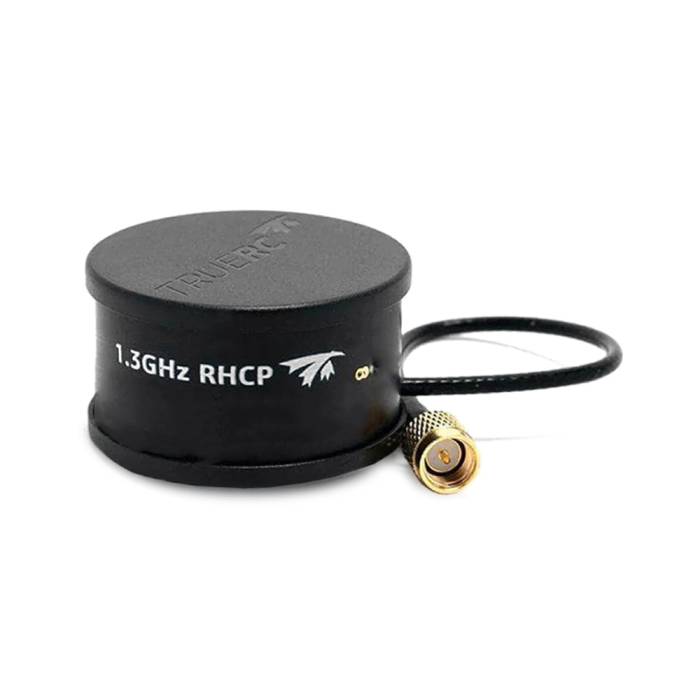

TrueRC Singularity 1280/58 1.3GHz RHCP Antenna (Side Feed) - SMA

The 1258/1280MHz(side fed) model is 47mm in diameter, 23mm high. It can be stem fed or side fed for flat surface mounting.

To begin, it has an extremely high axial ratio, the highest we ever measured on a CP antenna. Secondly, it has no lobes to get caught in things, bend and tangle up, making it more durable and practical. Last but not the least, it occupies less than one tenth of the volume used by a skew planar wheel (also known as clover-leaf). It is, by far, the most compact CP omnidirectional antenna ever made.

Specifications

• Frequency: 1.258-1.280GHz
• Gain: 1.6 dBic
• Axial Ratio: 1.0 (incredible)
• Connector: SMA
• Dimensions: 1.85″x0.91″+ 6″ cable (exit from side)
• Weight: 15g
• Type: RHCP
