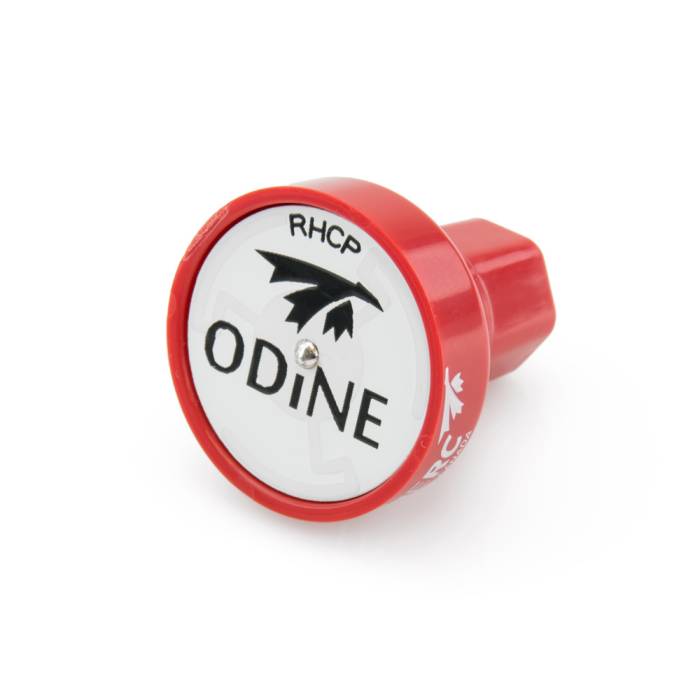

TrueRC ODiNE 5.8GHz SMA Antenna (RHCP)

The ODiNE stems from the Pagoda Antenna, but TrueRC re-engineered it into a much more compact antenna and maximized efficiency. Its strong polycarbonate case is also an inherent part of the RF design. The microwave-grade PCBs and their shell work together to bring all the performances we know of the pagoda, in a neat stubby form factor.

Specifications

• Bandwidth: 5.6GHz-6.0GHz
• Gain: 1.5dBic
• Radiation efficiency: 98%
• Weight: 5.4g
• Dimensions: D:23mm H:24mm
• Connector: SMA
• Weight: 0.01 kg
• Dimensions: 2 x 2 x 7 cm
• Polarization: RHCP

Includes

• 1x Odine Antenna
