TrueRC Matchstick 5.8GHz Antenna - Carbon Edition
TrueRC Matchstick 5.8GHz Antenna - Carbon Edition
Select options for stock status
About this product

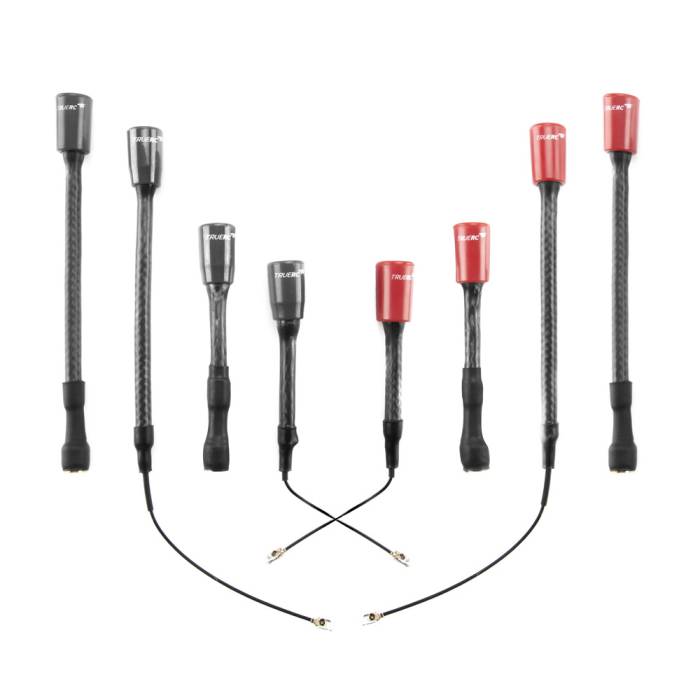

Introducing... the new TrueRC Matchstick Antenna - Carbon Edition! The Matchstick was designed to take a beating. Made with a hardened stubby case connected to a carbon fiber reinforced coax cable, the Matchstick gives you grade-A performance that will survive the worst. Choose between SMA and U.Fl connectors with multiple cable lengths available.
Note: This is one single antenna. Multiple options are sold separately.
Features
- U.Fl or SMA Cables (Long, Regular, or Standard)
- Carbon Fiber Reinforced Cables
- LCHP or RHCP
Specifications
- Cross-Polar Rejection: -15 to -30dB (1.9%)
- Size (Regular): 12.7mm x 70mm
- Cable: Carbon Fiber reinforced
- Size (Long): 12.7mm x 125mm
- Polarization: LHCP or RCHP
- Bandwidth: 5.6GHz-6.0GHz
- Radiation Efficiency: 99%
- Connector: SMA or U.Fl
- Weight (Regular): 6.2 g
- Size: 12.7mm x 70mm
- Weight (Long): 7.8 g
- US. Pat. 10,804,618
- Can. Pat. 2968566
- SWR: <=1.5:1
- Weight: 5.9 g
3D Print File
Includes
- 1x TrueRC Matchstick 5.8GHz Antenna - Carbon Edition (Choose Connector and Length)
- Note: This is one single antenna. Multiple options are sold separately.
FPV Regulatory Notice
The use and operation of this type of product in the USA and many other countries may require a license and some countries may forbid its use entirely. In the USA, you will need a "HAM" amateur radio license. Learn more about HAM licenses, and find a HAM license exam session in your area. It is your responsibility to ensure that the use of this product meets the requirements imposed by your government's rules and regulations for RF devices. Do not purchase this product if you are unsure of the government requirements or are not able to comply with them. GetFPV cannot be held responsible for your actions if you purchase and/or use this product in violation of your government's regulations. By agreeing to our terms and conditions during the check-out process, you also agree to have read and to understand this notice.
More Information
| SKU | 17757 |
|---|---|
| Manufacturer | TrueRC |
| NDAA Compliant | No |
| Antenna Frequency | 5.8GHz |
| Item Returns | This item can be returned |
