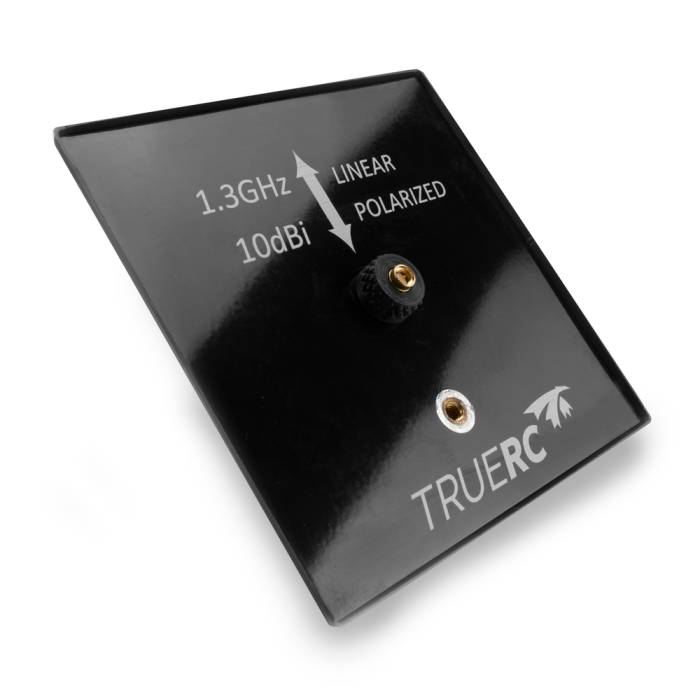

The TreuRC Line-AIR 1.3 is the latest redesign of the Biquad antenna. TrueRC has managed to pack the famous Biquad punch in less than half the typical size.  A 1/4-20 mounting point in the back makes it featherweight and super easy to attach to your ground station.

Features

• 15cm flexible low loss extension
• 1/4-20 mounting point
• Ultralight
• 1.3GHz

Specifications

• Mounting: Standard 1/4-20 flush thread
• Dimension: 152mm x 152mm x 27mm
• Beam-width @-3dB**: 68deg
• Frequency: 1230-1350MHz
• Radiation efficiency: 99%
• Connector: SMA male
• Beam-width*: 120deg
• Polarization: Linear
• Gain: 10 dBic
• Weight: 115g

**Coverage where at least 70% of the max range is obtained.

*Coverage where reception is at least equivalent to an omni.

Includes

• 1x TrueRC Line-Air 1.3GHz Linear Patch Antenna
• 1x 15cm flexible low loss extension
