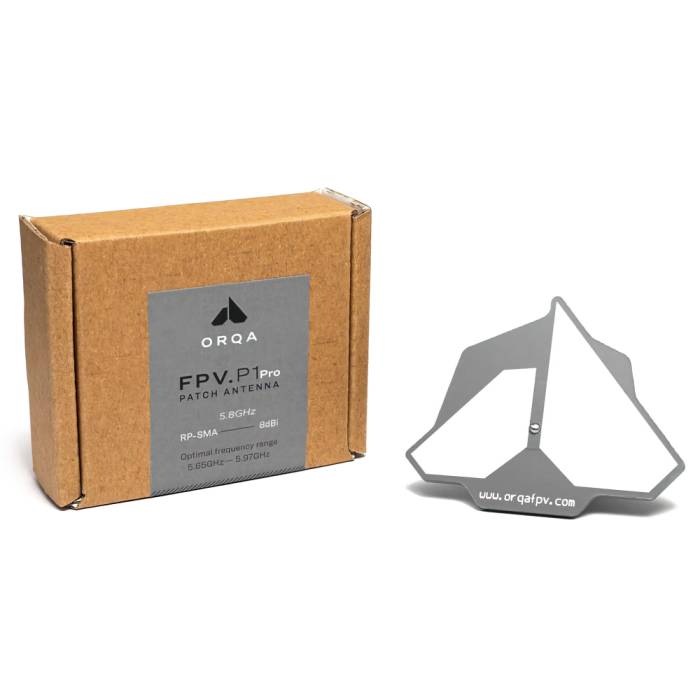

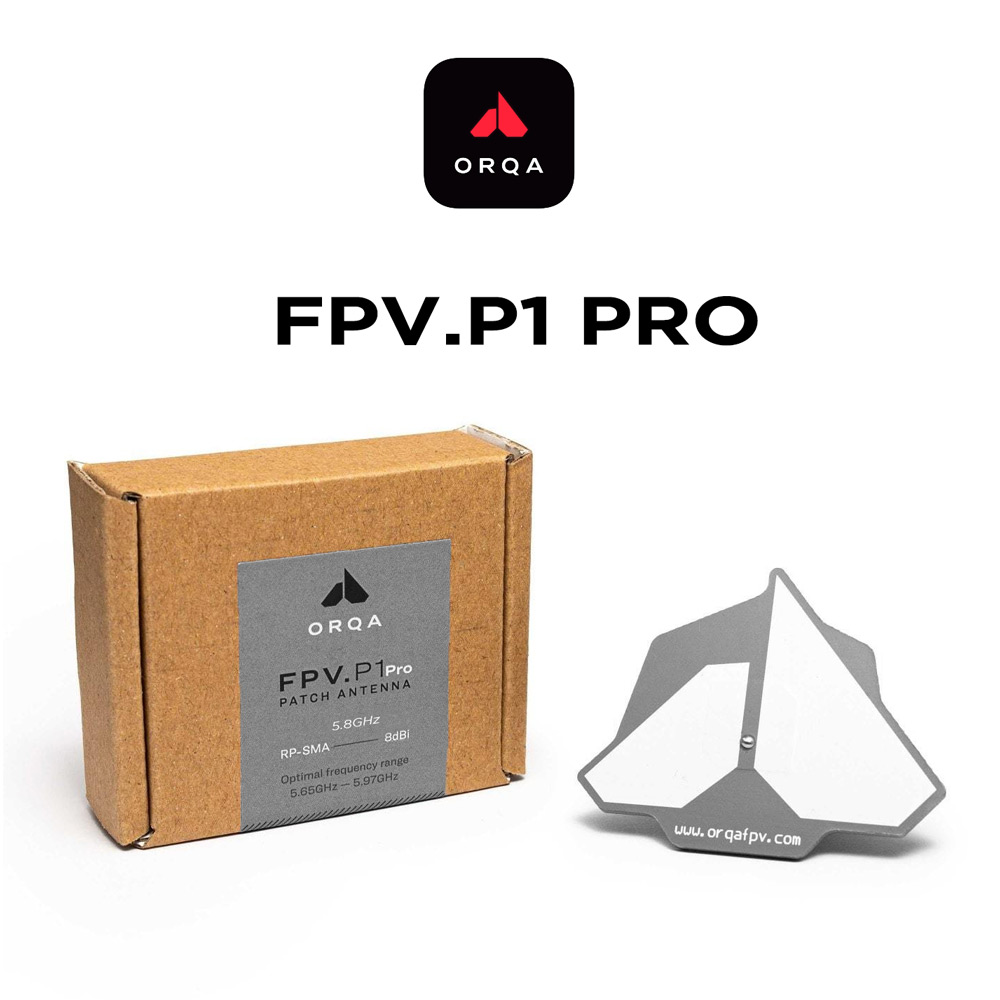

The Orqa FPV.P1 Pro is a redesign of its ancestor the FPV.P1 patch antenna, with 5.8GGz frequency. Now designed and manufactured with new material intended for use in satellite, aerospace, wireless, and military industries...

Features

• Designed and manufactured on a new material intended for use in satellite, aerospace, wireless and military industries
• Across the entire optimal frequency range, P1. Pro measures VSWR within the limits of the optimal range (below 1.4)
• Between 5.75GHz and 5.83GHz, the VSWR is well below 1.2 with excellent cross-polarization attenuation
• VSWR of 1.15 with an outstanding level of worst-case cross-polarization attenuation of 17dB
• The RF design of O1.Pro is finely tuned with a peak performance at 5.8GHz
• Outperforms the FPV.P1 by >2dB with the same form factor.
• Exceptional VSWR with solid cross-polarization
• Cross-polarization attenuation and transmitters
• VSWR proxy-to-power transmission efficiency

VSWR

Orqa has aimed to achieve exceptional VSWR with a solid cross-polarization attenuation. VSWR is proxy-to-power transmission efficiency (how well the antenna delivers the RF energy to the receiver).

CROSS-POLARIZATION ATTENTUATION

Tells us how resilient an antenna is to radio pollution from the multipath wave propagation (reflections of the original signal).

CROSS-POLARIZATION TRANSMITTERS

Cross-polarization transmitters - radio sources transmitting on the opposite polarization.

Specifications

• Frequency: Between 5.75GHz and 5.83GHz
• Polarization: Choose LHCP or RHCP
• Model: Orqa FPV.P1.Pro
• Color: Gray and White
• Connector: RP-SMA
• Gain: 8 dBi

Includes

• 1x Orqa FPV.P1.Pro 5.8GHz SMA Patch Antenna (LHCP or RHCP)
