Omnivision 5.8GHz U.FL FPV Antenna
Select options for stock status
About this product

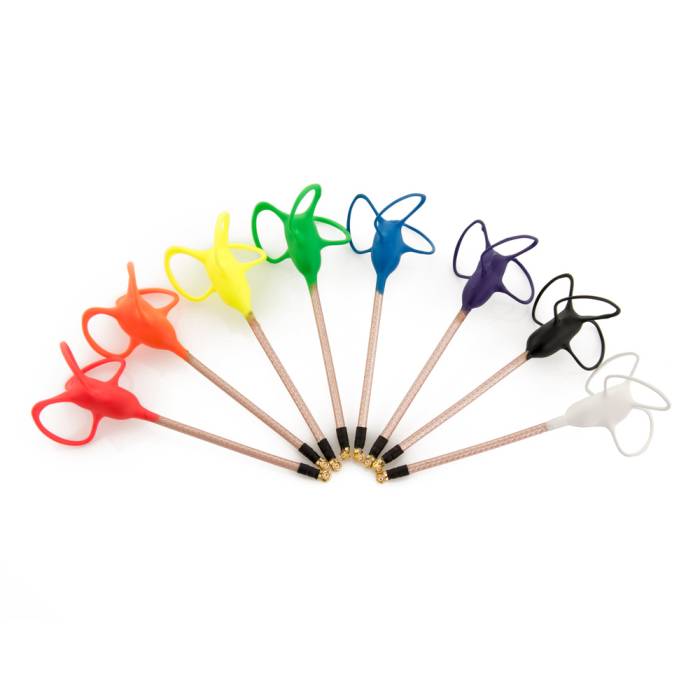

Omnivision Antennas antennas are hand built in the USA with video quality and durability first in mind. Available in both Right and Left-hand polarization (RHCP, LHCP) The 3 lobe works best as a video transmitter antenna paired with another antenna with matching polarization.
Each antenna is built using a high-quality coaxial cable with a reinforcement collar at the connector allowing the antenna to be as flexible as possible in a crash yet maintain its shape while in the air. The antennas feed point and lobe solder joints are reinforced with a low dielectric polyamide hot melt which relieves any stress to those vulnerable areas in a crash.
Whether you are using this antenna for fpv racing, ultralight, or aerial photography, Omnivision antennas will give you a clear signal.
Specifications
- Gain: 1.4 dBi
- Bandwidth: 57400MHz-5860MHz
- Weight: 2.8g
- Length: 55mm (connector to bottom of lobe)
- Polarization: LHCP or RHCP
- Connector: U.FL
More Information
| SKU | 8127 |
|---|---|
| Manufacturer | Omnivision |
| Country of Manufacture | United States |
| NDAA Compliant | No |
| Antenna Connector / Length | U.FL |
| Antenna Frequency | 5.8GHz |
