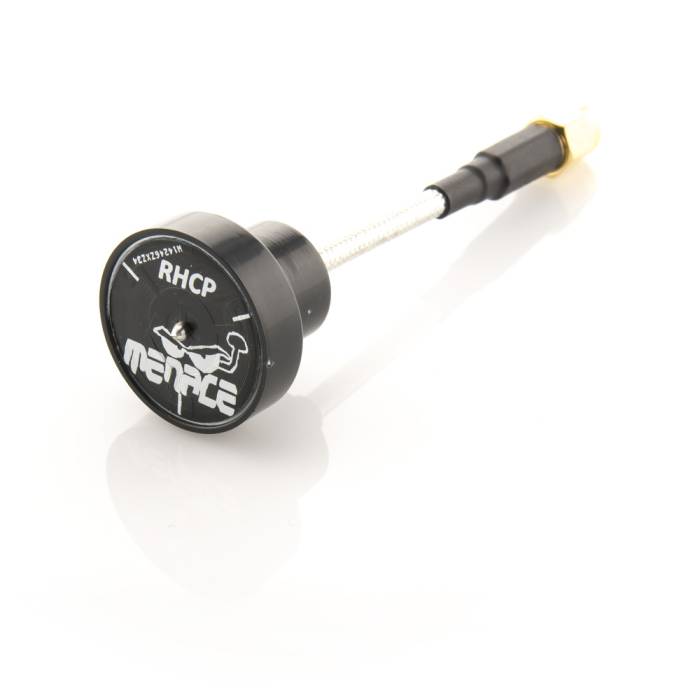

Menace RC Raptor Antenna 5.8Ghz Omni (RHCP)

The Menace Raptor antenna is a small compact Omni that delivers a smooth radiation pattern and a high axial ratio with its unique PCB pagoda construction designed by Maarten Baert.

Features

• Small 5.8Ghz Aero design with excellent omnidirectional pattern
• Unique PCB construction allows manufacturing within fine tolerances
• Gain 1.09db with a radiation efficiency of 92%
• Clearer video reception with up to 20% greater signal received than other Omni antenna topology with higher gain
• High Axial Ratio for reversed polarity rejection, ideal for send and receive as a pair.
• Robust injection molded case for crash protection
• Weighs less than 10grams

Specifications

• Center frequency: 5.8 GHz
• Frequency Range: 5550 – 6050 MHz
• Matching S11 < -20dB, VSWR <1.22
• Gain: 1.09dB with efficiency: 92%
• Axial Ratio: <1.3
• Beam width: 360 degrees
• Left or Right Hand Circular Polarised ( LHCP or RHCP)
• SMA Connector
• Height: 85mm
• Weight: 9.4grams

Includes

• 1x Raptor 5.8Ghz Antenna
