Happymodel ExpressLRS EP1 RX 2.4GHz Omnidirectional U.FL Antenna

This Happymodel ExpressLRS (ELRS) Omnidirectional U.FL Antenna is for the EP1 RX 2.4GHz Nano series receiver. The EP1 RX has an open-source program based on ExpressLRS. Due to the low-latency and high-refresh-rate RF module, they are very comfortable for FPV Racing and Long Range FPV. These are very suitable for Tiny whoops because of the ultra-light and Nano size!

Note: This is the antenna only. The EP1_RX is sold separately.

Features

• Designed by Jye Smith on the ExpressLRS development team.
• Ceramic Antenna
• Omnidirectional

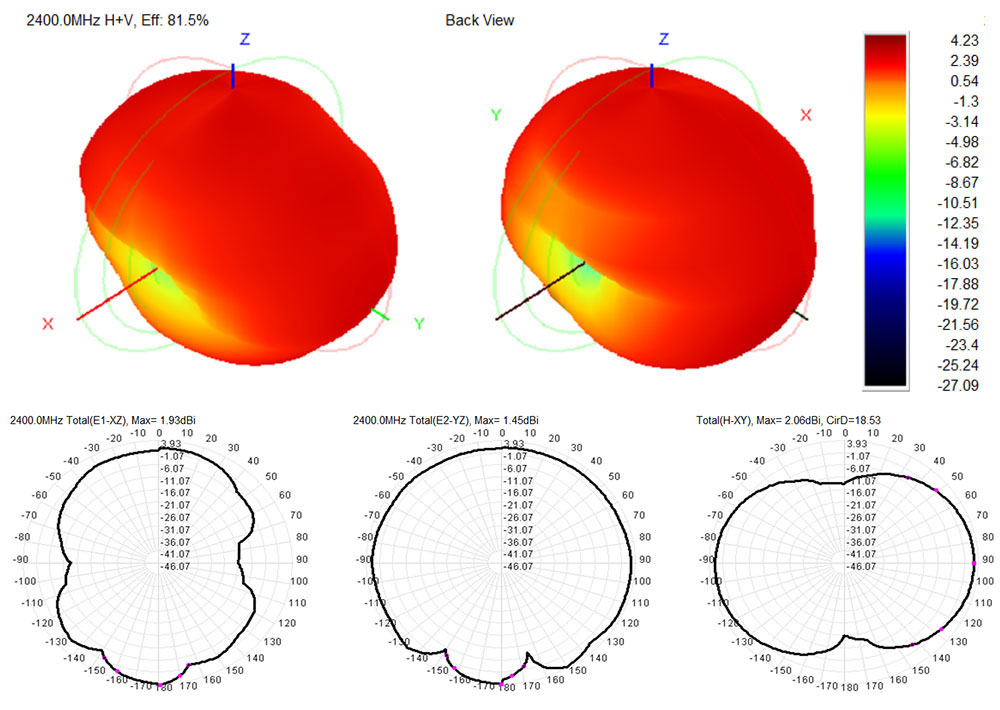

Specifications

• Antenna length: Optional 40mm (Regular) or 90mm (Long)
• Peak Gain Position (Theta): 180.00
• Upper Hem. Efficiency (%): 39.93
• Lower Hem. Efficiency (%): 41.54
• Peak Gain Position (Phi): 330.00
• Efficiency ThetaPol (%): 20.90
• Efficiency PhiPol (%): 60.56
• Frequency (MHz): 2400.0
• Compatability: EP1_RX
• Antenna width: 52mm
• Efficiency (dBi): -0.89
• Efficiency (%): 81.46
• Directivity (dB): 5.12
• Connector: U.FL
• Gain (dBi): 2.23

Includes

• 1x Happymodel ExpressLRS EP1 RX 2.4GHz Omnidirectional U.FL Antenna (40mm or 90mm)
