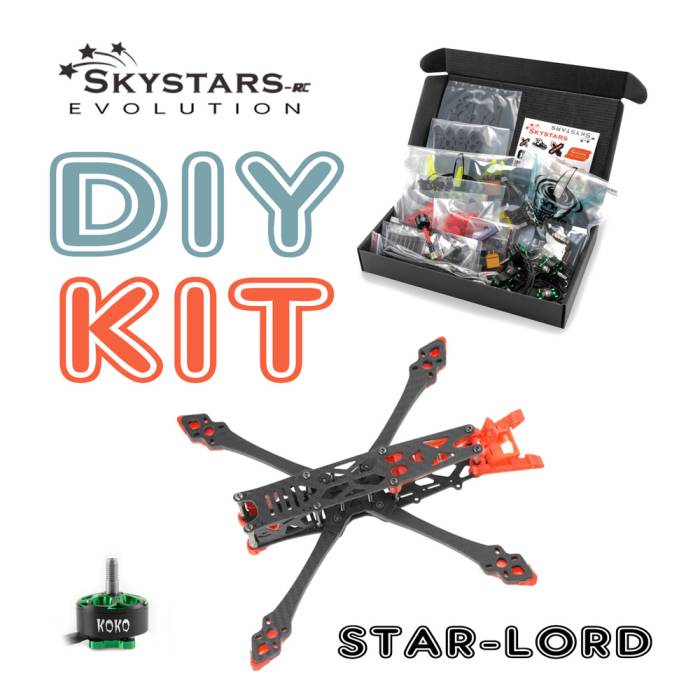

The SkyStars Star-Lord 228 5" 6S ARF Drone Kit features a 5" frame, HD stack, motors, and everything you need to start building your very own FPV quadcopter!

An amazing deal for a full drone ARF (almost-ready-to-fly) Kit. You will have to build it yourself, but that is half the fun!

You will need to use your own Rx and bind to the radio of your choice.

Note: Receiver, battery, goggles, and radio controller NOT included in this kit.

Features

• Gemfan Hurricane Propellers
• SkyStars KOKO 6S Motors
• F7 Flight Controller
• 1200TVL Camera
• RGB LEDs
• Lipo Straps
• 5" Frame
• 55A ESC

Specifications

SkyStars Star-Lord 228mm Frame Kit

• The thickness of the bottom plate: about 2.5mm
• The thickness of the top plate: about 2mm
• Item name: Star-lord 228mm frame Kit
• Arm Plate Thickness: about 6mm
• Screws: YFS 12.9 class screw
• Side Plate Thickness: 2mm
• Material: 3K Carbon fiber
• Wheelbase: 228mm
• Weight: 118g

SkyStars KM55 55A 4-in-1 ESC

• Input voltage: 3-6S LiPo
• Con.Current: 55A
• Peak Current: 70A≥ 10S
• Firmware: BLHeli_32
• Support: Dshot 600/1200
• Mounting hole : 20X20 mm/M3
• BEC: No
• Product size: 35*47*6.5mm
• Weight: 16.5g

SkyStars F7 3-6S 20x20 HD Flight Controller

• Mounting Holes: Standard 20mm/M3 square to the center of holes
• OSD: Betaflight OSD & DJI HD OSD (UART6)
• 6 hardware UARTS (UART1,2,3,4,5,6)
• MCU: STM32F722RGT6 216MHz
• Firmware: SKYSTARS F7HD
• Dimensions: 35x28x7mm
• Input Voltage: 3-6S Lipo
• IMU: MPU6000 (SPI)
• Buzzer Pad: YES
• Barometer: YES
• Blackbox: 16MB
• 5V 2A & 10V 2A
• Supports DJI
• Weight: 4.2g

SkyStars KOKO 2207 1950KV 6S Motor

• Lead Specification: 20#AWG 120mm
• Weight (Excluding Thread): 32.2g
• No Load Current (10V) : 1.3A
• Rated Voltage (Lipo) : 4S-6S
• Upper Current Limit: 42.3A
• Size：φ27.5*19.5*32.7mm
• Power Upper Limit: 980W
• Axle Diameter: 5 mm
• Slot Pole： 12N14P
• Resistance: 52 mΩ

Gemfan Hurricane 51433-3 Props

• Max. Blade Width 15.43mm
• Blade Diameter 129.3mm
• Material: Polycarbonate
• Hub Thickness: 7mm
• Shaft Hole: 5mm
• Diameter: 5.1"
• Weight: 3.8g
• Pitch: 4.33
• Blades: 3

Cyclone 5804 Pro VTX

• Power: 25/200/400 / 600mW
• Number of channels: 40
• Protocol: Smart Audio
• Input voltage: 7-24V
• Connector: MMCX
• Size: 36x36x5mm

Includes

• 1x SkyStars Star-Lord 228 V2 Frame (Carbon Fiber)
• 4x Gemfan 51499R Props (Color may vary)
• 1x 3D Printed Parts Set (Red)
• 1x KM55A 3-6S 4-in-1 ESC
• 4x 2207 1950KV 6S Motor
• 1x RHCP 5.8GHz Antenna
• 1x Skystars Sticker Sheet
• 1x Cyclone 5804 Pro VTX
• 1x 1200TVL Cam
• 2x Battery Straps
• 1x Sky F722 FC
• 1x Battery Pad
• 4x RGB LED
