SkyStars G4 Long Range 4" ARF Drone Kit w/ GPS - 4S

SkyStars G4 Long Range 4" ARF Drone Kit w/ GPS - 4S

Back Ordered

Only left for same day shipping. Order now!
SkyStars G4 Long Range 4" ARF Drone Kit w/ GPS - 4S

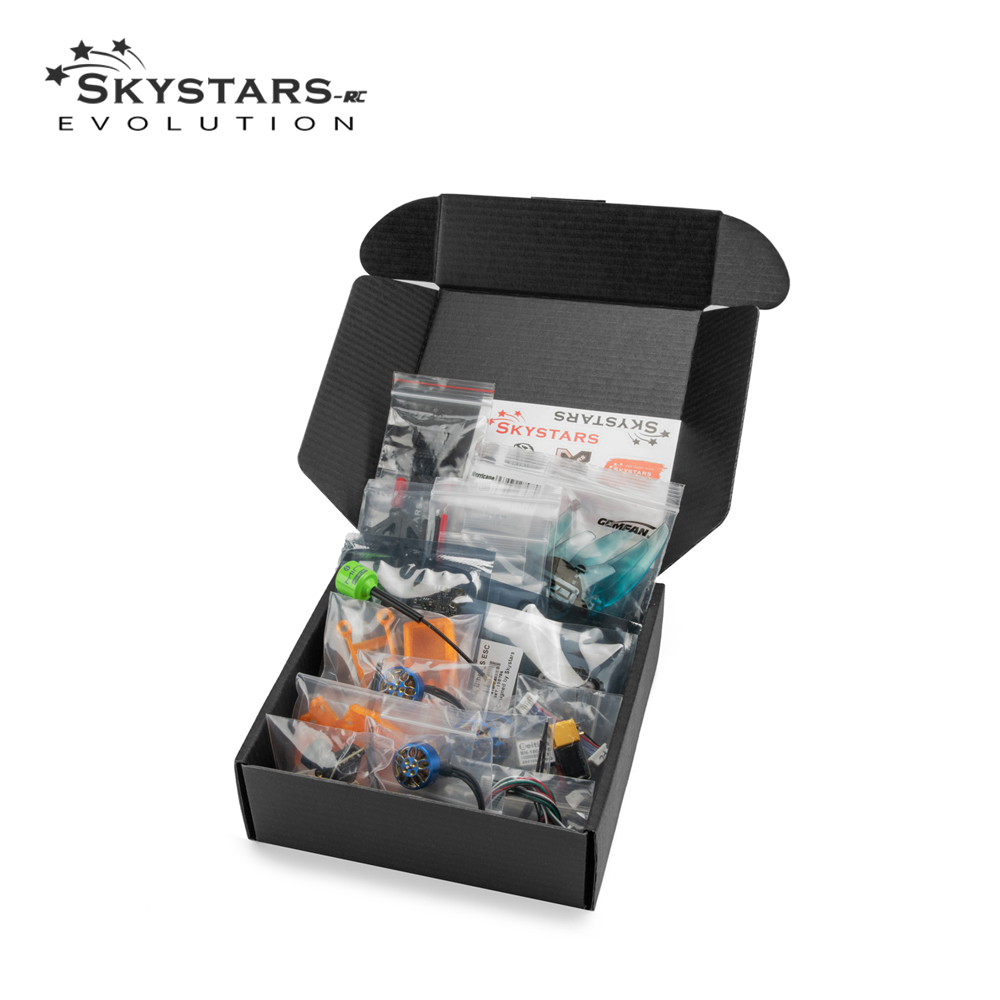

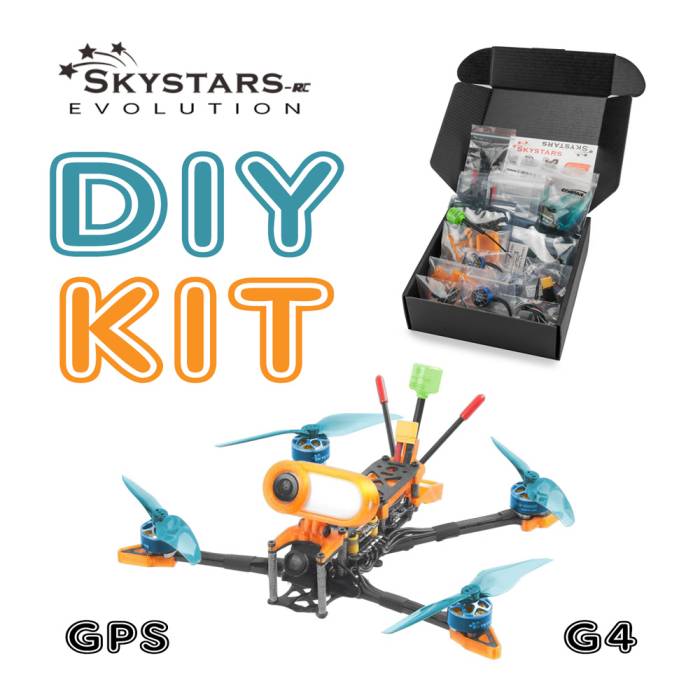

The SkyStars G4 4" LR FPV Drone Kit is a DIY Build Kit with Frame, Flight Controller, ESC, VTX, Motors, Camera, Antenna, Props, GPS, and many other items that make this a must-have!

About this product

The SkyStars G4 4" LR FPV Drone Kit includes a micro F4 flight controller, KM-35A 3-6S Blheli_S 4-in-1 ESC, 25mW/200mW/400mW switchable VTX, Skystars 1404 motors, CMOS 1200 TVL camera, RHCP antenna, Gemfan 4024 props, GPS, and many other items that make this a must-have!

An amazing deal for an ARF Drone Kit!

Note: You will need to use your own Rx and bind to the radio of your choice. The receiver, battery, goggles, and radio controller are NOT included. Antenna color may vary. This is a DIY Kit - Assembly Required.

VIDEO: SKYSTARS 4" LR DIY BASIC ASSEMBLY (soldering, build configuration and overview)

Features

  • DIY Build Kit with everything you need
  • 1404 Motors
  • 4" Arms
  • GPS

Specifications

  • Propellers: GEMFAN 4024 Clear Blue
  • Motors: SkyStars 1404 KV3800 (4S)
  • GPS: Model: Beitan-180 GPS
  • Camera: CMOS 1200 TVL

VTX

  • Control mode: button OR Channel changes and Pitmode setting through PWM With a microphone, you can switch the audio flexibly
  • Output power: 25mW/200mW/400mW switchable
  • Frequency: 5.8GHz 5 bands 40channels
  • BAT: 7-26V,BEC 5V-1A
  • FPV Transmitter

FRAME

  • The front stack hole supports 16/20/25.5 three-hole positions, the rear stack hole supports 20*20 hole positions
  • Motor mounting holes: 9-12mm 3 holes
  • Aluminum column: M2x25/ M2x20
  • Wheelbase 182mm
  • Net weight: 34g

FLIGHT CONTROLLER

  • Built-in Betaflight OSD to adjust PID
  • Model: SkyStars F4-DJU 20x20 FC
  • Micro F4 Flight Control Board
  • Size: 20*20mm mounting
  • CPU: STM32F405RGT6
  • Input Voltage: 2-6S Lipo
  • BEC Output: 5V@3A
  • Baro: YES
  • MPU: 6000

ESC

  • Model: SkyStars KM35 3-6S Blheli_S 4IN1 ESC
  • Input Voltage: 3-6S Lipo battery
  • Constant Current: 35A
  • Peak Current: 45A

ANTENNA

  • 5.8G RHCP FPV Transmitter Antenna
  • Radiation Pattern: Omnidirectional
  • Frequency Range:5.7GHz
  • Model: 4 Mini RHCP
  • Polarization: RHCP
  • Impedance:50Ω
  • Gain:2.8dbi

Includes

  • 1x Micro F4 DJI Flight Control Board + Connecting Wire
  • 1x 5.8G RHCP FPV Transmitter Antenna
  • 4x Skystars 1505 KV3800 (4S) Motors
  • 1x GEMFAN 4024 Propeller (Set of 8)
  • 1x KM-35A 3-6S Blheli_S 4IN1 ESC
  • 1x 25mW/200mW/400mW VTX
  • 1x CMOS 1200 TVL Camera
  • 1x 3D Printed TPU Parts Set
  • 1x XT-30U-Male Connector
  • 2x Antenna Protectors
  • 2x Connecting Wires
  • 1x Hardware Kit
  • 1x Battery Pad
  • 1x Base Plate
  • 1x LiPo Strap
  • 1x Capacitor
  • 8x Standoffs
  • 1x Top Plate
  • 4x 4" Arms
  • 1x X Plate
  • 1x GPS

More Information

SKU 17593
UPC (GTIN) 764613340822
Manufacturer SkyStars
Item Returns This item can be returned
