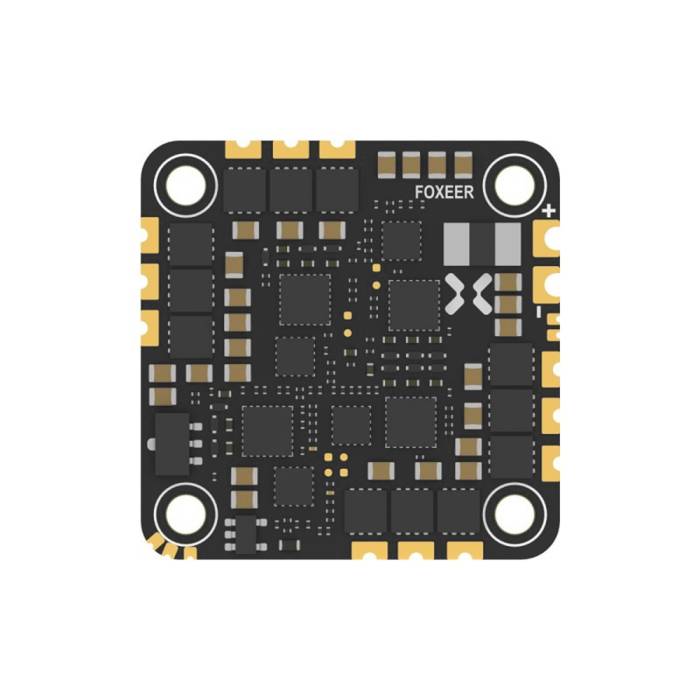

Foxeer Reaper F745 AIO V3 - F7 FC + 45A 2-6S BLHeli_S 4-in-1 Bluejay ESC
Foxeer Reaper F745 AIO V3 - F7 FC + 45A 2-6S BLHeli_S 4-in-1 Bluejay ESC
$99.99
Foxeer Reaper F745 AIO V3 - F7 FC + 45A 2-6S BLHeli_S 4-in-1 Bluejay ESC
The Foxeer Reaper F745 AIO V3 features an F7 flight controller and a 45A 2-6S BLHeli_S 4-in-1 Bluejay ESC.
About this product
The Foxeer Reaper F745 AIO V3 features an F7 flight controller and a 45A 2-6S BLHeli_S 4-in-1 Bluejay ESC.
Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)
VIDEO: (Insert Video Title here in Bold)
Features
- 45A BLHeli_S ESC with Bluejay Firmware
- F745 Flight Controller
- 16M Blackbox
- 5 UARTs
USE BULLETED FEATURE HERE INÂ BOLD CAPS.
Add additional feature descriptions here to describe the above.
USE BULLETED FEATURE HERE INÂ BOLD CAPS.
Add additional feature descriptions here to describe the above.
Specifications
- Firmware: Bluejay: G-H-30-96-v0.16/ BLS: G-H-30 16.7
- ESC Programming: Bluejay(default)/BLHeli-S optional
- Continuous /Burst Current: 45A x 4/ 50A x 4
- Mounting Hole: 25.5X25.5mm, Φ3mm/M2
- Fireware: BF: FOXE-FOXEERF745V3_AIO
- Input Voltage: 2~6S Lipo(8.4~25.2V)
- DJI/Vista Connector: Supported, 7pin
- Power Supply: 2~6S Lipo(8.4~25.2V)
- Working Temperature: -20℃ ~ +55℃
- Storage Temperature: -20℃ ~ +70℃
- Stick Programming: Supported
- Model: FOXEER Reaper AIO V3
- Black Box: 16M Flash Memory
- Working Humidity: 20~95%
- Input signal: Dshot300/600
- Current sensor: Supported
- BEC Output: DC5V/2.5A
- Size: 32.5X32.5mm
- Current scale: 100
- CPU: STM32F745
- USB: Micro USB
- Weight(g): 8.9g
- Telemetry: No
- OSD: BF OSD
- UART: 5 Set
IMPORTANT NOTES
- Insert important warnings or notes here. Example: "Do not overheat." or "Always use the included charger for best performance."
Recommended (Not Included)
- Â (Insert recommended products here. Example: "Battery: Lumenier 10000mAh 6s 25c Lipo Battery")
Links
- Â (Insert links such as manuals, firmware, etc)
Includes
- 1x Foxeer Reaper F745 AIO V3 - F7 FC + 45A 2-6S BLHeli_S 4-in-1 Bluejay ESC
- 1x Rubycon 35V 470uF CapacitorÂ
- 1x AMASS XT60H-M Connector
- 1x 16AWG Black Wire
- 1x 14AWG Black Wire
- 1x 16AWG Red Wire
- 1x 14AWG Red Wire
- 1x 6-Pin FC Wire
- 1x Hardware Kit
