Foxeer Mini F722 V2 20x20 Flight Controller

More Views

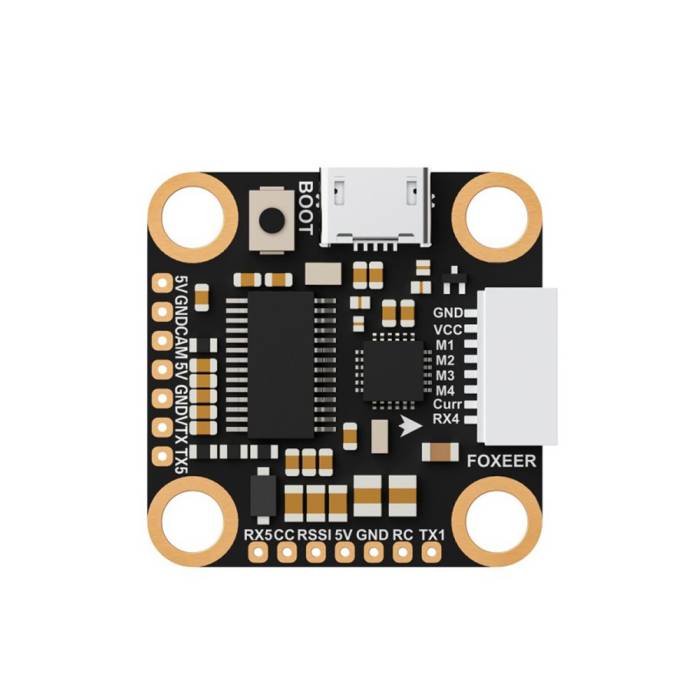

Foxeer Mini F722 V2 20x20 Flight Controller
The Mini F722 V2 Flight Controller by Foxeer features the latest F7 processing technology, STM32F722RET6, MPU6000 Gyro, and many other specs that make this 20x20 FC a winner!
In Stock
$46.99
OR
Description

The Mini F722 V2 Flight Controller by Foxeer features the latest F7 processing technology, STM32F722RET6, MPU6000 Gyro, and many other specs that make this 20x20 FC a winner!

Specifications

  • Model: Mini F722 V2
  • CPU: STM32F722RET6
  • Power Supply: 2~6S Lipo (6.5V~30V)
  • BEC Output: DC5V/2A
  • OSD: BF OSD
  • Black Box: 16M Flash Memory
  • UART: 4 Set
  • ESC Telemetry: RX4
  • Buzzer: YES
  • Smart Audio: YES
  • LED: 1 Set 2812 LED
  • USB: Micro USB
  • Fireware: FOXEERF722V2(FOXE)
  • Size: 26X26mm
  • Mounting Hole: 20X20mm, Φ4mm
  • Weight(g): 4g
  • Working Temperature: -20℃ ~ +55℃
  • Working Humidity: 20~95%
  • Storage Temperature: -20℃ ~ +70℃

Includes

  • 1 x FC
  • 4 x Rubbers Columns

Additional Information
SKU 13682
Manufacturer Foxeer
UPC (GTIN) 789862850465
