Flywoo GOKU Versatile F405 AIO - F405 FC + 12A BLHELI_S 1-2S ESC - No Rx (MPU6000)
Flywoo GOKU Versatile F405 AIO - F405 FC + 12A BLHELI_S 1-2S ESC - No Rx (MPU6000)
$98.99
Flywoo GOKU Versatile F405 AIO - F405 FC + 12A BLHELI_S 1-2S ESC - No Rx (MPU6000)
The Flywoo GOKU Versatile F405 AIO features a 2S 12A ESC, OSD, 6 serial ports I2C functionality, and 2XWS2812 LEDs. Building made easy in a compact whoop board!
About this product

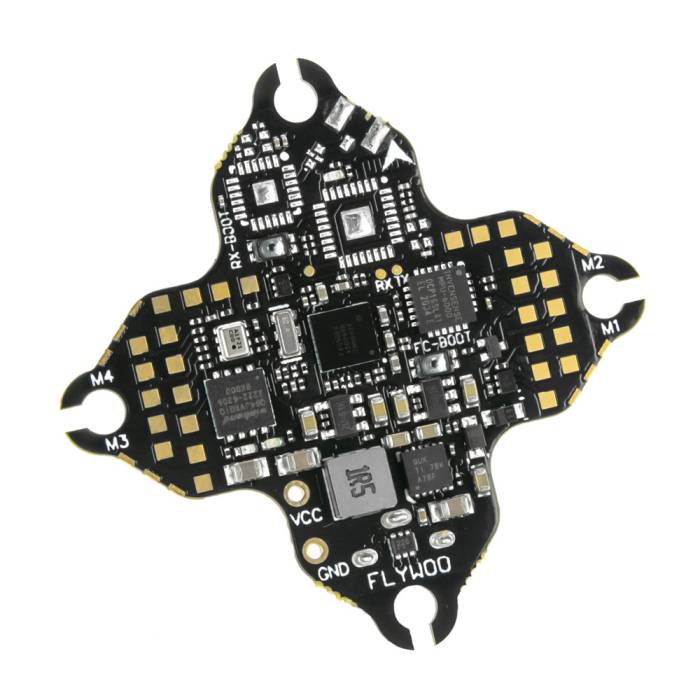

The Flywoo GOKU Versatile F405 AIO is another versatile and highly integrated circuit board in the GOKU Versatile series! This AIO features a 2S 12A ESC, OSD, 6 serial ports I2C functionality, and 2XWS2812 LEDs. Building made easy in a compact whoop board!
Note: No Rx
VIDEO: (Insert Video Title here in Bold)
Features
- Configured with the powerful F405 BGA MCU
- Can work with different RX at the same time
- Opened 6 serial ports and 12C functionality
- Reasonable layout, easy to build
- Black box \ Barometer \ CURR
- Built-in 2XWS2812 LEDs
- MPU6000 Gyroscope
- 2S 12A ESC, OSD
USE BULLETED FEATURE HERE INÂ BOLD CAPS.
Add additional feature descriptions here to describe the above.
USE BULLETED FEATURE HERE INÂ BOLD CAPS.
Add additional feature descriptions here to describe the above.
Specifications
FLIGHT CONTROLLER
- SIZE: 30*30mm
- Weight: 4.1g
- Hole: 25.5*25.5-3mm
- MCU: STM32F405
- UARTS: 1,2,3,4,5,6
- MOTOR: M1-M4 OUTPUT I2C: SCL/SDA
- GYRO: ICM42688
- Barometer: BMP280
- LED:2*WS2812
- Flash: 8M
- BEC: 5V 2A
- Firmware: FLYWOOF405S_AIO
ONBOARD 4-in-1 ESC
- Built-in 1S/2S 12A BL_S 4in1 ESC
- Support Oneshot125, Oneshot42, Multishot,
- Dshot150, Dshot300, Dshot600
- Input Voltage: 1-2S Lipo
- Firmware: BLHELI_S
- Firmware: Z_H_30_REV16.7
IMPORTANT NOTES
- Insert important warnings or notes here. Example: "Do not overheat." or "Always use the included charger for best performance."
Recommended (Not Included)
- Â (Insert recommended products here. Example: "Battery: Lumenier 10000mAh 6s 25c Lipo Battery")
Links
- Â (Insert links such as manuals, firmware, etc)
Includes
- 1x Flywoo GOKU Versatile F405 AIO - F405 FC + 12A BLHELI_S 1-2S ESC - No Rx (MPU6000)
- 1x Amass XT3OU-M Connector
- 1x 25v 220w Capacitor
- 1x Connecting Wire
Featured Videos
ADD VIDEO TITLE HERE IN BOLD CAPS
ADD VIDEO TITLE HERE IN BOLD CAPS
More Information
SKU | 19785 |
---|---|
UPC (GTIN) | 724376346158 |
Manufacturer | Flywoo |
NDAA Compliant | No |
Mounting Pattern | 30.5x30.5mm |
Item Returns | This item can be returned |
