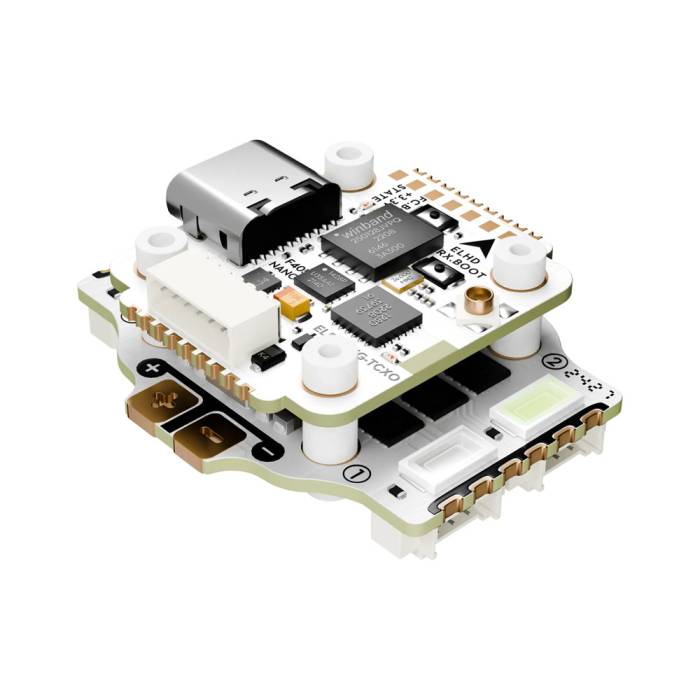

The Flywoo GOKU V3 HD Stack combines high-performance components in a compact 16x16mm design, ideal for QUAD drone builds. Featuring an F4 flight controller and a 20A 2-4S 4-in-1 BLHeli_S ESC, this stack ensures smooth and reliable power delivery for your drone. The ESC supports DShot and other popular protocols, providing precise control over your motors. Equipped with a built-in LED, the stack not only enhances your drone’s aesthetics but also improves visibility during flight. Designed for versatility and performance, the Flywoo GOKU V3 HD Stack is a perfect choice for FPV enthusiasts seeking efficiency, durability, and seamless integration for their HEX drone setups.

• Direct Plug-in for DJI O3/O4 Air Unit
• FC/ESC Pin Header Interface
• Built-in TCXO ELRS Receiver
• Universal USB-C Interface
• 16x16 Mounting Holes
• Built-in Barometer
• 16MB Black Box

ESC

• Supports: PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
• Size: 27×35mm board, 16mm mounting holes (M2)
• Continuous Current: 20A
• ESC MCU: BB21F16G
• Input: 2-4S LiPo
• Power LED: Yes
• Weight: 4.5g

FLIGHT CONTROLLER

• Input Voltage: 7.4V - 24V / 2 - 6S LiPo
• Hole Position: M2 16x16mm
• Size: 25mm x 23mm x 8mm
• IMU (Gyro): ICM42688P
• MCU: STM32F405 BGA
• Gyro: ICM-42688P (SPI)
• BEC: 5V 2A / 3.3V 0.5A
• USB Port Type: Type-C
• UARTs: 1, 2, 3, 4, 5, 6
• Barometer: DP310
• Black Box: 16MB
• Weight: 3g
• OSD: No

• 1x Flywoo GOKU QUAD V3 20A 2-4S 6-in-1 BLHeli_S ESC w/ LED - 16x16
• 1x Flywoo GOKU V3 F4 Flight Controller w/ ELRS 2.4GHz - 16x16
• 1x DJI O3 Connection Cable
• 8x Shock-Absorbing Balls
• 1x XT30U Power Cable
• 1x Hardware Kit
• 1x Capacitor
