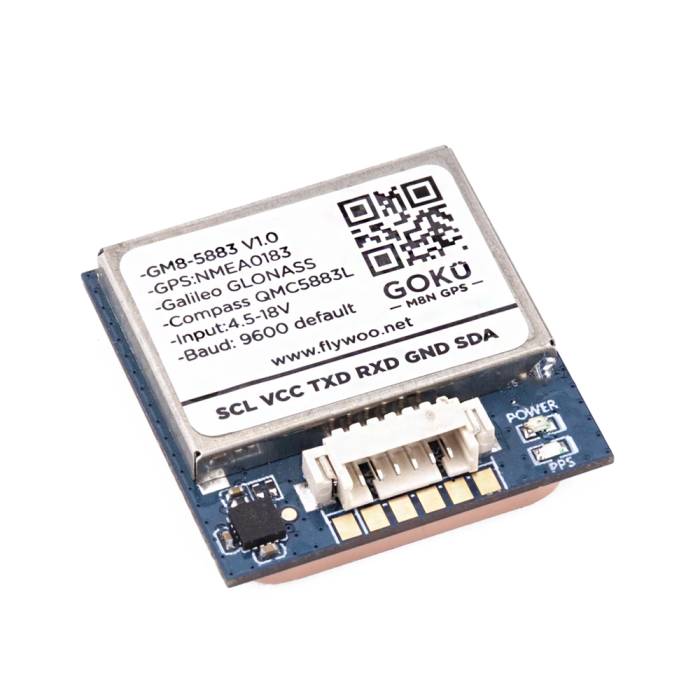

Flywoo GOKU GM8-5883 V1.0 GPS Module

More Views

Flywoo GOKU GM8-5883 V1.0 GPS Module

Get precise location data for your drone with the Flywoo GOKU GM8-5883 V1.0 GPS Module. Featuring IC HMC5883L dual integrated compass, 1.25mm spacing between 6 pins, M8030-KT chipset, and many other cool features!

In Stock
$18.99
OR
Description

Get precise location data for your drone with the Flywoo GOKU GM8-5883 V1.0 GPS Module. Featuring IC HMC5883L dual integrated compass, 1.25mm spacing between 6 pins, M8030-KT chipset, and many other cool features!

Features

  • GPS Module,Dual Module Compass
  • With electronic compass IC HMC5883L
  • 1.25mm spacing between the 6pins patch seat

Specifications

  • Brand: FLYWOO
  • Model: GM8-5883 V1.0 GPS
  • Dimension: 28mm*28mm*8.5mm
  • Weight: 10g
  • Connector: 1.25mm spacing between the 6pins patch seat

Electrical Characteristics

  • Chipset: M8030-KT
  • Receiving Format : GPS,GLONASS,Galileo,BeiDou,QZSS and SBAS
  • Frequency : GPS L1,GLONASS L1,BeiDou B1,SBAS L1,Galileo E1
  • Channels : 72 Searching Channel

Sensitivity

  • Tracking : -167dBm
  • Reacquisition : -160dBm
  • Cold start : -148dBm
  • Hot start : -156dBm

Accuracy

  • Position Horizontal : 2.0 m CEP 2D RMS SBAS Enable (Typical Open Sky)
  • Velocity : 0.1m/sec 95% (SA off)
  • Timing : 1us synchronized to GPS time

Acquisition Time

  • Cold Start : 26s
  • Warm start : 25s
  • Hot start : 1s

Data and Update Rate

  • Support Rate : 4800bps to 921600bps,Default 9600bps
  • Data Level : TTL or RS-232,Default TTL level
  • Data Protocol : NMEA-0183 or UBX, Default NMEA-0183
  • Single GNSS : 1Hz-18Hz
  • Concurrent GNSS : 1Hz-10Hz,Default 1Hz

Operational Limits

  • Altitude: 50,000m Max
  • Velocity : 515m/s Max
  • Acceleration: Less than 4g

Power consumption

  • VCC : DC Voltage 4.5V-18V
  • Current : Capture 50mA/5.0V
  • Operating temp : -40 °C ~ +85°C
  • Storage Temp : -40°C ~ +105°C

Indicator

  • TX LED:RED.The data output, TX LED flashing
  • PPS LED:red.PPS LED not bright when GPS not fixed,flashing when fixed
  • The Module’s Pins:SCL VCC TX RX GND SDA

Includes

  • 1 x GM8-5883 V1.0 GPS Module
  • 1 x 30cm Cable
Additional Information
SKU 13073
Manufacturer Flywoo
UPC (GTIN) 751313213976
