Flywoo GOKU F722 FC + 40A 2-6S 4-in-1 ESC + VTX625 20x20 Mini Stack

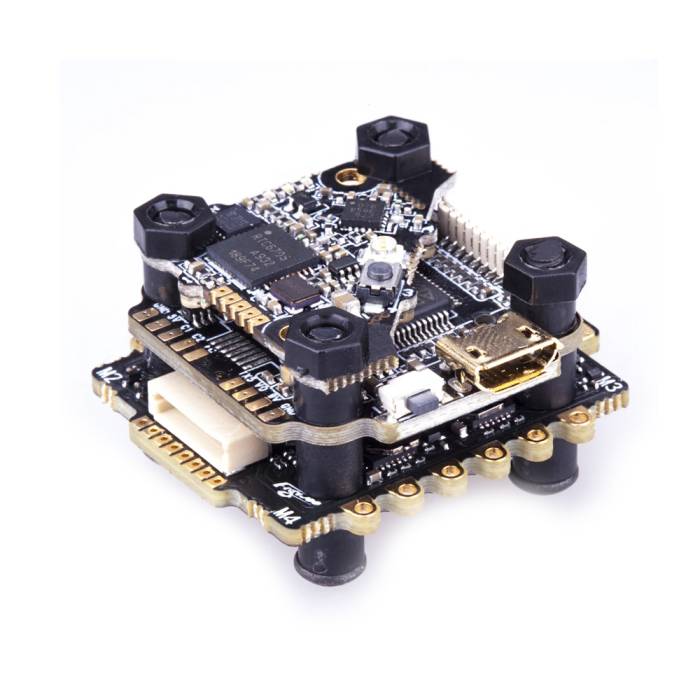

The Flywoo GOKU F722 FC Mini Stack comes with the GOKU F722 FC, 40A 2-6S 4-in-1 Brushless ESC, as well as the GOKU VTX625 VTX. Use this stack to push your 20x20 FPV builds to the max!
Share

About this product

The Flywoo GOKU F722 FC Mini Stack comes with the GOKU F722 FC, 40A 2-6S 4-in-1 Brushless ESC, as well as the GOKU VTX625 VTX. Use this stack to push your 20x20 FPV builds to the max!

Specifications

GOKU F722 MINI FC

  • Hole: 20*20-3mm
  • MCU: STM32F722RET6 216MHz
  • GYRO: MPU6000
  • BARO: BMP280/FLASH: 16M
  • Input Voltage: 3-8s/BEC: 5V 2A/9V 2A
  • Dual camera switch&Support Camera Menu Settings
  • Max voltage 50V input
  • 6 Functional UARTS (UART1,2,3,4,5,6)
  • Max 6 motor output
  • Firmware: FLYWOOF722DUAL

40A BLheli_32 2-6S 4in1 Brushless ESC

  • Peak Current: 50A
  • Input Voltage: 2-6S
  • Firmware: BLheli_32
  • BEC: NO
  • Weight: 7.2g (including heatsink)
  • Mounting Hole: 20x20mm ( M3)
    • Support Telemetry/Current Meter
    • Support Oneshot, Multishot, DShot150/300/600 and DShot1200

GOKU VTX625 VTX

  • Output Power: PIT/25mW/50mW/100mW/200mW/450mW Switchable
  • Control Mode: BFOSD Control(RX)/Button
  • BAT: 5V
  • LED: 4*WS2812LED
  • Video System: NTSC/PAL
  • Antenna: IPEX
  • Size: 31MM*31MM
  • hole: 16*16mm/20*20mm/25.5*25.5mm
  • Weight: 3g

Includes

  • 1 x Flywoo GOKU F722 Mini FC
  • 1 x Flywoo 40A BLheli_32 2-6S 4in1 Brushless ESC
  • 1 x Flywoo GOKU VTX625 VTX

Download

More Information

SKU 13033
UPC (GTIN) 751313214027
Manufacturer Flywoo
NDAA Compliant No
