Flywoo GOKU F411 FC - 13A 2-4S 4-in-1 ESC + 16x16 Micro VTX625 Stack

Flywoo GOKU F411 FC - 13A 2-4S 4-in-1 ESC + 16x16 Micro VTX625 Stack

Back Ordered

Only left for same day shipping. Order now!
Flywoo GOKU F411 FC - 13A 2-4S 4-in-1 ESC + 16x16 Micro VTX625 Stack

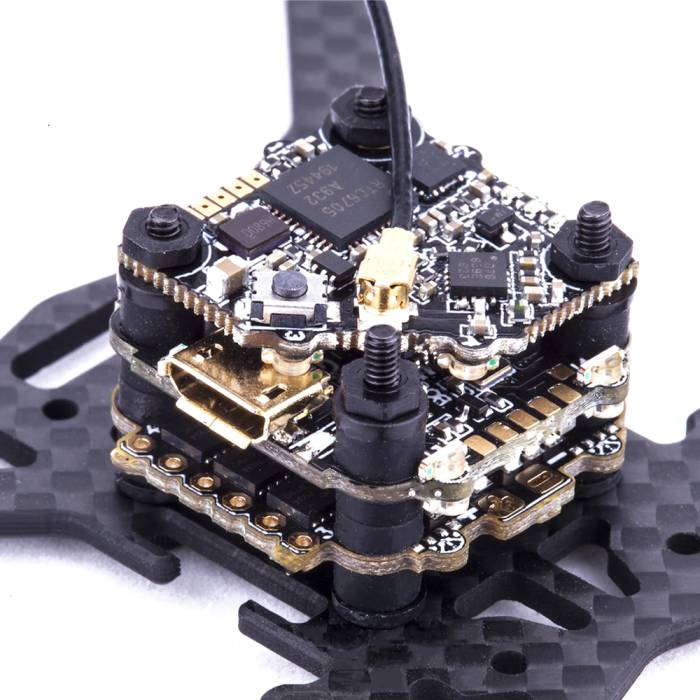

The Flywoo GOKU F411 FC Stack comes with the GOKU BS13A ESC, as well as the GOKU VTX625 VTX, which can push your FPV micro and toothpick builds to the max!

About this product

The Flywoo GOKU F411 FC Stack comes with the GOKU BS13A ESC, as well as the GOKU VTX625 VTX, which can push your FPV micro and toothpick builds to the max!

Video

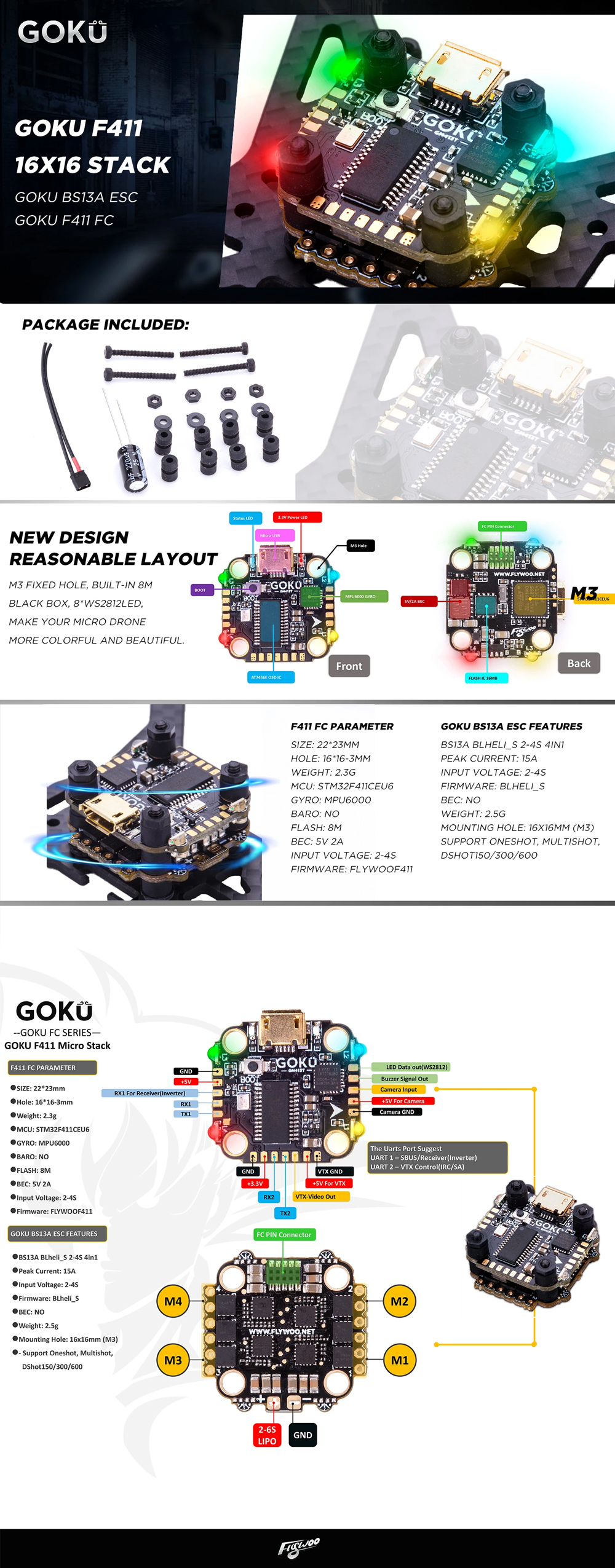

Specifications

GOKU F411 FC

  • Model: GOKU F411 FC
  • MCU: STM32F411
  • IMU: MPU6000 gyro/accelerometer (SPI)
  • OSD: BetaFlight OSD w/ AT7456E chip
  • Baro: no
  • black box: 8M
  • LED:8*WS2812
  • BEC Output: 5V@2A
  • Integrated LC Filter
  • Firmware target: FLYWOOF411
  • Size: 24×24mm board,16mm mounting holes (M3)
  • Weight: 2.6g

GOKU BS13A ESC

  • Model: GOKU BS13A ESC
  • ESC MCU: BB21F16G
  • Continuous current: 13A
  • Input:2-4s lipo
  • Supports Dshot600, Oneshot, Multishot
  • Size: 24×24mm board,16mm mounting holes (M3)
  • Weight: 2.6g

GOKU VTX625

  • Output Power: PIT/25mW/50mW/100mW/200mW/450mW Switchable
  • Control Mode: BFOSD Control(RX)/Button
  • BAT: 5V
  • LED: 4*WS2812LED
  • Video System: NTSC/PAL
  • Antenna: IPEX
  • Size: 31MM*31MM
  • hole: 16*16mm/20*20mm/25.5*25.5mm
  • Weight: 3g

Includes

  • 1 x Flywoo GOKU F411 FC
  • 1 x Flywoo GOKU BS13A ESC
  • 1 x Flywoo GOKU VTX625

Download

More Information

SKU 13035
UPC (GTIN) 751313214010
Manufacturer Flywoo
Item Returns This item can be returned
