Flysky FS-i6S 10CH 2.4GHz AFHDS 2A Radio Transmitter w/ FS-iA6B Receiver

Flysky FS-i6S 10CH 2.4GHz AFHDS 2A Radio Transmitter w/ FS-iA6B Receiver

Back Ordered

Only left for same day shipping. Order now!
Flysky FS-i6S 10CH 2.4GHz AFHDS 2A Radio Transmitter w/ FS-iA6B Receiver

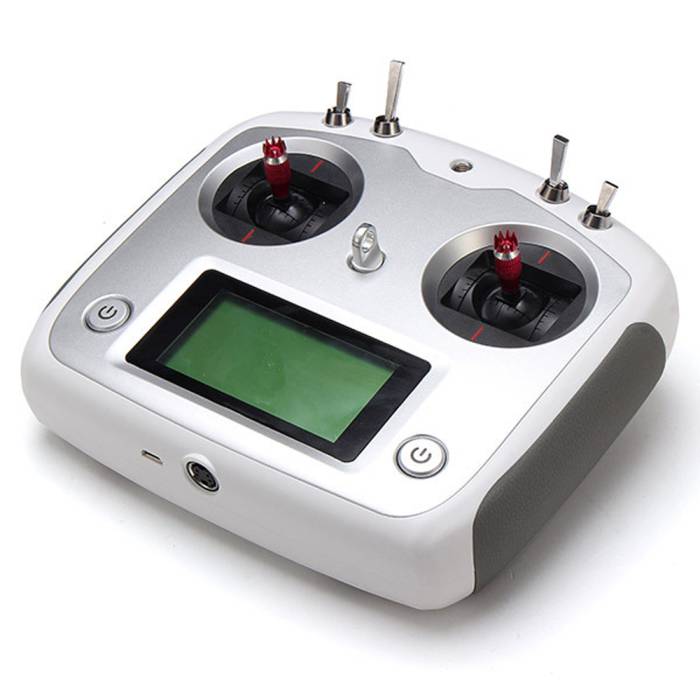

The FlySky FS-i6S is a 10CH 2.4GHz Radio Controller with FS-iA6B Receiver

About this product

The FS-i6S transmitter and FS-iA6B receiver constitute a 10 channel 2.4GHz AFHDS 2A digital proportional computerized RC System. This system supports quadcopters.

The AFHDS 2A (Automatic Frequency Hopping Digital System Second Generation) developed and patented by Flysky is specially developed for all radio control models. Offering superior protection against interference while maintaining lower power consumption and high reliable receiver sensitivity, Flysky's AFHDS technology is considered to be one of the leaders in the RC market today.

Features

  • Full touchscreen interface, more convenient to control
  • Bidirectional Communication
    • Capable of sending and receiving data, each transmitter is capable of receiving data from temperature, altitude and many other types of sensors, servo calibration, and i-BUS Support.
  • Multi-channel Hopping Frequency
    • This system's bandwidth ranges from 2.4055GHz to 2.475GHz. This band is divided into 140 channels. Each transmitter hops between 16 channels (32 for Japanese and Korean versions) in order to reduce interference from other transmitters.
  • Omni-directional Gain Antenna
    • The high efficiency Omni-directional high gain antenna cuts down on interference while using less power and maintaining a strong reliable connection.
  • Unique ID Recognition System
    • Each transmitter and receiver has its own unique ID. Once the transmitter and receiver have been paired, they will only communicate with each other, preventing other systems from accidentally connecting to or interfering with the system's operation.
  • Low Power Consumption
    • The system is built using highly sensitive low power consumption components, maintaining high receiver sensitivity, while consuming as little as one-tenth the power of a standard FM system, dramatically extending battery life.
  • New Firmware Features
    • New (Trims) function
    • New (Rate/Exp.) function
    • New(Throttle curve) function
    • NEW(Throttle mode) function
    • New(models) function, supports 5 modes groups
    • New Context-aware reset function
    • New low signal alarm function

Specifications

  • Remote Distance:1000M
  • Band: 140
  • Channels: 10
  • Code Type: GFSK
  • Sensitivity: 4096
  • Model Type: Quadcopter
  • RF Range: 2.4055-2.475GHz
  • Bandwidth: 500 kHz
  • RF Power: Less than 20dBm
  • 2.4GHz System: AFHDS 2A
  • DSC Port: Micro USB, PPM
  • Power Input: 4.2V-6.0V
  • Low Voltage Alarm: Yes (Lower than 4.2V)
  • Antenna Length: 26mm*2
  • Weight: 410g
  • FS-i6S Transmitter Size: 179mmx81mmx161mm
  • FS-iA6B Receiver Size: 47*26.2*15mm

Includes

  • 1 x FS-i6 S transmitter
  • 1 x FS-iA6B receiver
  • 1 x  Manual (CD)


More Information

SKU 11582
UPC (GTIN) 032733835949
Manufacturer FlySky
Item Returns This item can be returned
