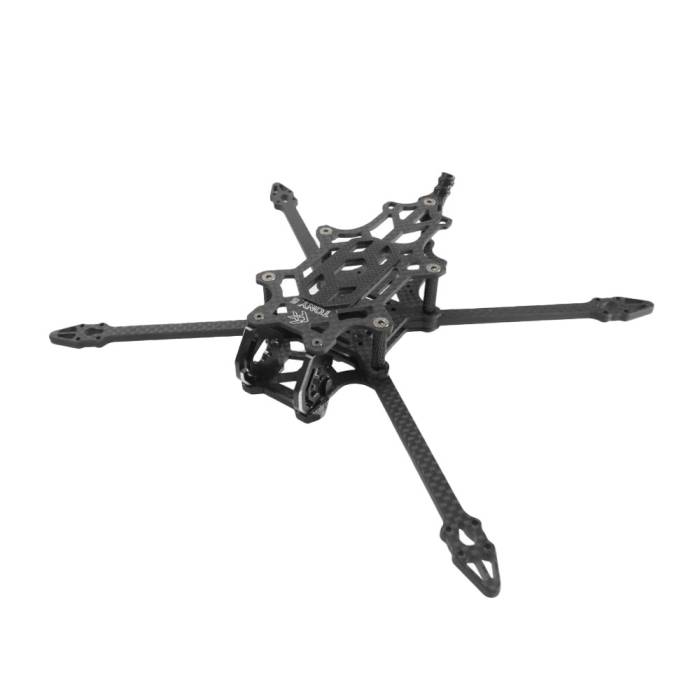

FlyFishRC Tony 5 O4 Pro Sub250 Freestyle Frame Kit

The FlyFishRC Tony 5 is a lightweight, durable frame created to make building a sub-250g 5-inch drone a possibility. The straightforward and easy-to-build platform is fully O4-ready and equipped with CNC aluminum camera plates to ensure your valuable camera remains maximally protected during all types of crashes.

VIDEO: FlyFishRC TONY5 | The Best Sub250 5-Inch Freestyle Frame?

• Only 57g (w/TPU)
• Sub-250g capable
• High-end T700 carbon fiber
• 12.9-grade strength hardware with Loctite threadlocker pre-applied

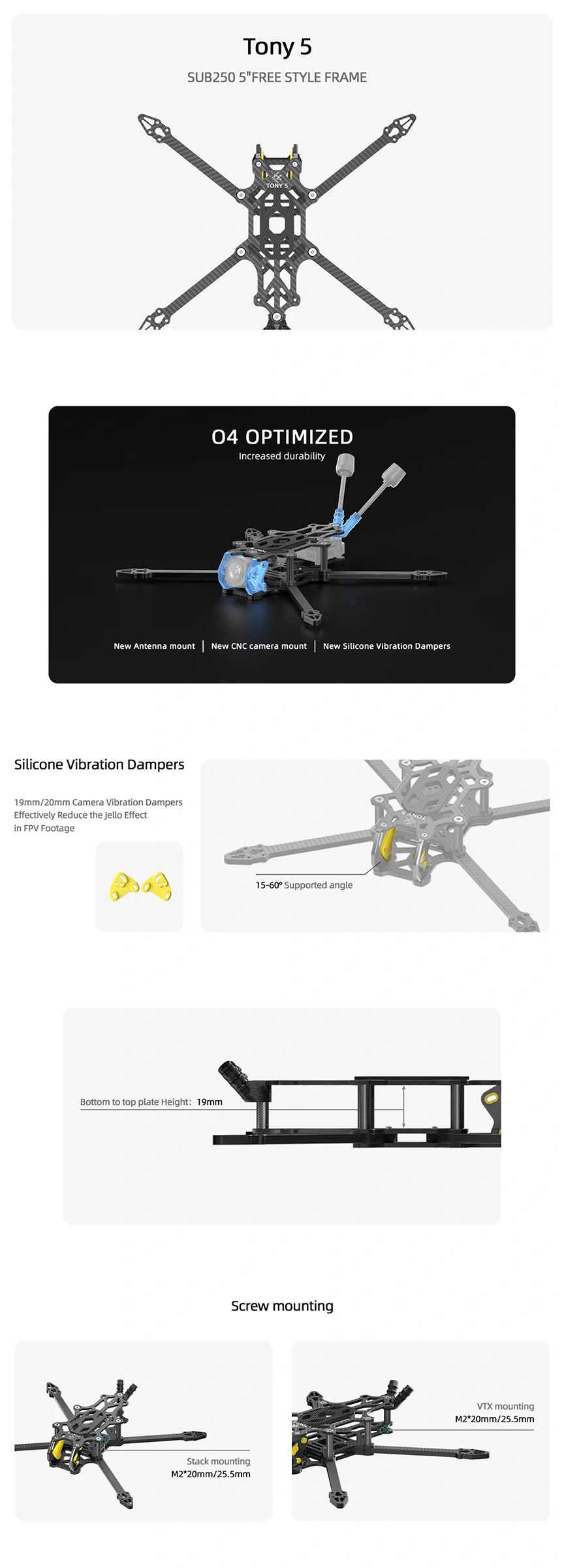

• CNC aluminum camera plates
• Silicone shock-absorbers for O4 AU
• Compatible with both 19/20mm cameras
• Compatible with most VTX
• Compact body, well-suited for freestyle

• Model:Tony 5
• Geometry: True-X
• Wheelbase:215mm
• Arm thickness: 4mm
• Top plate thickness: 2mm
• Middle plate thickness: 2mm
• Bottom plate thickness: 2mm
• Propeller size: 5"
• CNC plate thickness: 4mm
• FPV cam spacing: 19mm/20mm
• Weight: 57g (with TPU parts)
• Total Dimensions:133.7mm*168*29mm
• Motor mounting hole:12mm*12mm(M2)
• Stack mounting holes: 20mm*20mm/25.5mm*25.5.5mm(M3)
• VTX mounting holes: 20mm*20mm/25.5mm*25.5mm(M2)
• Motor mounting holes:12*12mm(φ2mm)

• Tony 5 Manual

• 1x FlyFishRC Tony 5 O4 Pro Sub250 Freestyle Frame Kit
