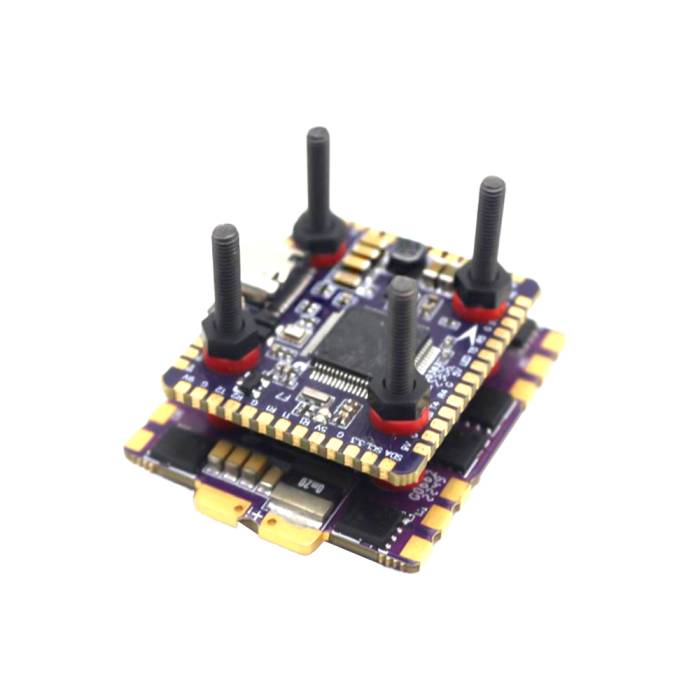

Flycolor Raptor TR20 Mini Stack - F722 FC + 60A ESC - 20x20
Flycolor Raptor TR20 Mini Stack - F722 FC + 60A ESC - 20x20
In Stock
About this product
The Flycolor Raptor TR20 Mini Stack features an F722 Flight Controller, equipped with dual VTX and dual LED pads, offering a convenient selection nearby for enhanced customization. With a voltage output range of 3.3V/0.1A, 5V/3A, and 9V/1.5A, this stack ensures stable power distribution. The MPU-6500 SPI gyro and STM32F722 MCU provide precise control, while the 60A ESC, with configurator support via BLHeliSuite32, INAV firmware compatibility, and a 20x20mm mounting pattern, delivers optimal performance for your FPV drone. Compact at 44x36mm and lightweight at 23g, the Raptor TR20 is designed for efficiency, supporting LiPo batteries from 3-6S and making it an ideal choice for your FPV drone and cinematography endeavors.
Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)
VIDEO: Diatone Mamba H743 MK4 FC & 128K ESC Unboxing
Features
- Damped light does regenerative braking, causing very fast motor retardation, and inherently also does active freewheeling
- The code supports regular 1-2ms pulse width input, as well as Oneshot125, Oneshot42, and *Multishot
- MOSFET with high performance and low Rds, not afraid of large current, more suitable for rapid flight
- Miniaturized and lightweight design, better routing, and component layout
- Configurator for ESC Parameter setting and upgrading: BLHeliSuite32
- MCU STM32G0, ARM 32-bit Cortex MCU, frequency up to 64 MHz
- All Dshot and Proshot signals are supported
- 20x20mm, M3 mounting pattern
- PWM frequency up to 128K
- Flycolor_Raptor_5 firmware
USE BULLETED FEATURE HERE IN BOLD CAPS.
Add additional feature descriptions here to describe the above.
USE BULLETED FEATURE HERE IN BOLD CAPS.
Add additional feature descriptions here to describe the above.
Specifications
F722 FLIGHT CONTROLLER
- Dual VTX and dual LED pads for convenient selection nearby.
- Voltage output: 3.3V/0.1A, 5V/3A , 9V/1.5A
- Gyro: MPU-6500 SPI
- FC BEC: 3.3V5V9V
- MCU: STM32F722
- Const Curr.: 60A
- Size(mm): 44*36
- Burst Curr.: 70A
- USB: Type C
- Weight: 23G
- Lipo: 3-6S
60A ESC
- Configurator for ESC Parameter setting and upgrading: BLHeliSuite32
- INAV firmware is supported: FLYCOLORF7MINI
- ARM: 32-bit Cortex, frequency up to 64 MHz
- ESC firmware: Flycolor_Raptor_5
- Mounting pattern: 20x20mm, M3
- PWM frequency: up to 128K
- MCU: STM32G0
IMPORTANT NOTES
- Insert important warnings or notes here. Example: "Do not overheat." or "Always use the included charger for best performance."
Recommended (Not Included)
- (Insert recommended products here. Example: "Battery: Lumenier 10000mAh 6s 25c Lipo Battery")
Links
- (Insert links such as manuals, firmware, etc)
Includes
- 1x Flycolor Raptor TR20 Mini Stack - F722 FC + 60A ESC - 20x20
- 1x 3mm Mounting Accessories Set
- 1x ESC /FC connecting wire
- 1x Electrolytic capacitor
- 1x Power wire(XT60)
Featured Videos
ADD VIDEO TITLE HERE IN BOLD CAPS
ADD VIDEO TITLE HERE IN BOLD CAPS
More Information
SKU | 21610 |
---|---|
UPC (GTIN) | 724376358014 |
Manufacturer | FlyColor |
NDAA Compliant | No |
Mounting Pattern | 20x20mm |
Item Returns | This item can be returned |
