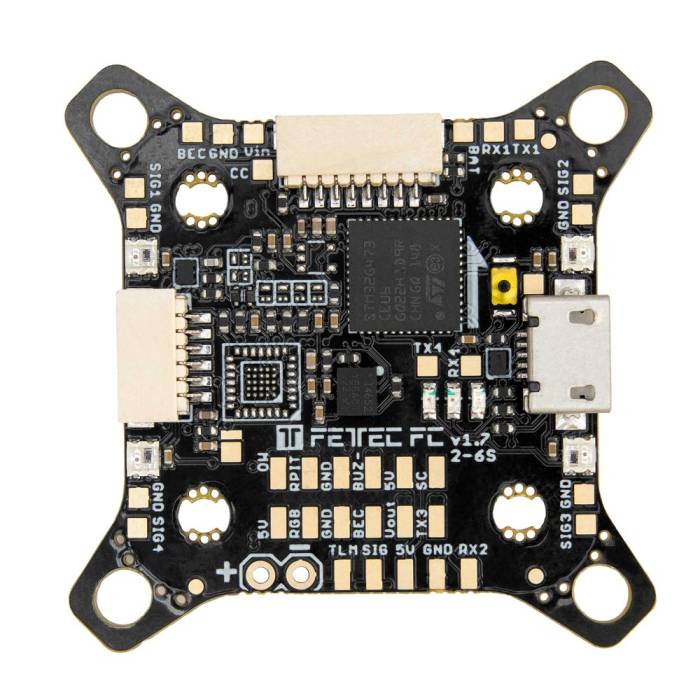

FETtec G4 - N v1.7 Flight Controller
FETtec G4 - N v1.7 Flight Controller
In Stock
About this product
What does "N" version mean?
This product has no onboard analog OSD.
Use of digital OSDs is still possible as usual.
There is also the option of connecting to a FETtec OSD board for using analog systems.
Comparison:
Features:
-
Latest STM32G4 Processor
- 180Mhz + Math accelerator
- Gyro IIM-42652 SPI
-
Supply voltage 6-27V (2S-6S Lipo)
-
2x dedicated onboard BEC (2A each)
- 5V BEC for RX
- 5V/16V BEC for VTX (switchable and real Pit*)
-
Improved IO protection
- All IOs of the microcontroller e.g. in connectors or solder pads are protected against voltage or current spikes
-
2x 8 pin connector for solder free ESC connection
- Connector 1: ESC signal 1-4, telemetry, VCC, GND
- Connector 2: ESC signal 5-8 (depending on UAV type 1-4), telemetry, VCC, GND
-
1x 8 pin connector for solder free VTX, cam connection and OSD or digital systems
-
real Pit* VCC, GND, Video in, Video out, BEC 5V/16V, VCS/TX3, RX3
-
-
2x 6 pin connectors for serials
- RX1, TX1, 3.3V, VCC, 5V, GND
- RX3, VCS/TX3, RGB LED, VCC, 5V, GND
-
1x 4 pin connector for receiver
-
Signal, TLM, 5V, GND
-
-
5 UART serials
- UART 1 free
- UART 2 used for Receiver
- UART 3 free
- UART 4 free
- UART 5 used for ESCs / TLM / Onewire
-
4 ESC solder pads (Signal/GND) in each corner
-
Buzzer pads
-
4 tiny RGB LEDs (selectable color)
-
Supported ESC protocols
-
PWM, Oneshot125, Oneshot42, Dshot150/300/600/1200/2400, FETtec Onewire
-
- FETtec Alpha FC firmware (KISS FC firmware flashable)
-
Connector type: JST-SH-1mm
*real Pit-Mode: A power supply pin which is remotely switchable
Dimensions:
-
Maximum outside dimensions: 37,2 x 37,2mm, without outside tips 30 x 30mm
-
Mounting hole arrangement:
- 20 x 20mm with M2 mounting hole (expandable to M3)
- 30 x 30mm with M3 mounting hole
- 30 x 30mm mounting hole tips are removable to reduce overall FC size
-
Overall height: 7,9mm
-
Weight: 5,37g
Firmware:
- FETtec Alpha FC firmware (KISS FC firmware flashable)
Includes:
- 1x FETtec FC G4 - N v1.7
- 1x 8 pin cable (open on one side)
- 1x 6 pin cable (open on one side)
- 1x 4 pin calbe (open on one side)
More Information
SKU | 18108 |
---|---|
UPC (GTIN) | 4260740040056 |
Manufacturer | FETtec |
Mounting Pattern | Convertible 20x20/30.5x30.5 |
NDAA Compliant | No |
Item Returns | This item can be returned |
