FETtec FC G4 v1.7 Flight Controller

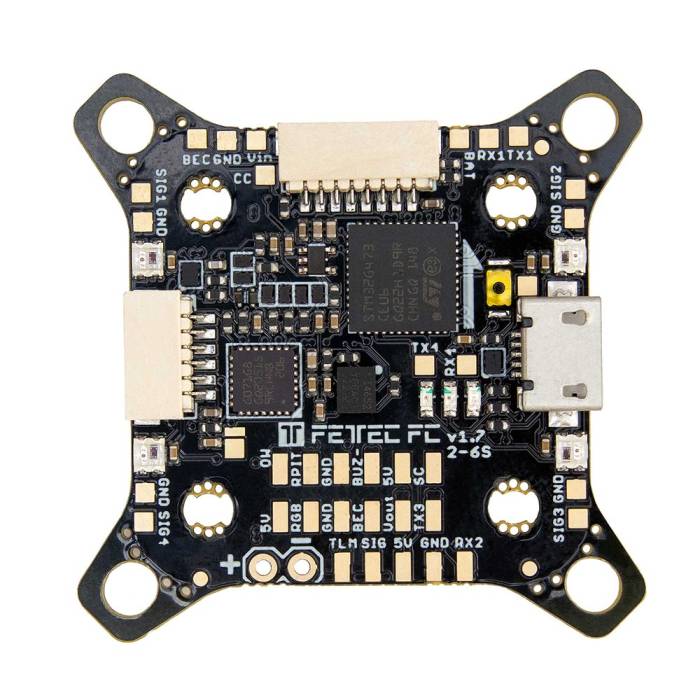

The FETtec FC G4 v1.7 features the latest STM32G4 processor. Providing unparalleled processing power to your aircraft. Along with an IIM-42652 SPI gyro, two 5v BECs, 6-27V (2-6S) power handling, and a host of other features, the G4 from FETtec is on the cutting edge of Flight Controller technology.

About this product

Features:

  • Latest STM32G473 Processor

    • 180Mhz + Math accelerator
    • Gyro IIM-42652 SPI
  • Supply voltage 6-27V (2S-6S Lipo)

  • 2x dedicated onboard BEC (2A each)

    • 5V BEC for RX
    • 5V/16V BEC for VTX (switchable and real Pit*)
  • Improved IO protection

    • All IOs of the microcontroller e.g. in connectors or solder pads are protected against voltage or current spikes

  • 2x 8 pin connector for solder free ESC connection

    • Connector 1: ESC signal 1-4, telemetry, VCC, GND
    • Connector 2: ESC signal 5-8 (depending on UAV type 1-4), telemetry, VCC, GND
  • 1x 8 pin connector for solder free VTX, cam connection and OSD or digital systems

    • real Pit* VCC, GND, Video in, Video out, BEC 5V/16V, VCS/TX3, RX3

  • 2x 6 pin connectors for serials

    • RX1, TX1, 3.3V, VCC, 5V, GND
    • RX3, VCS/TX3, RGB LED, VCC, 5V, GND
  • 1x 4 pin connector for receiver

    • Signal, TLM, 5V, GND

  • 5 UART serials

    • UART 1 free
    • UART 2 used for Receiver
    • UART 3 free
    • UART 4 used for onboard OSD, can be set free
    • UART 5 used for ESCs / TLM / Onewire
  • 4 ESC solder pads (Signal/GND) in each corner

  • Buzzer pads

  • 4 tiny RGB LEDs (selectable color)

  • Supported ESC protocols

    • PWM, Oneshot125, Oneshot42, Dshot150/300/600/1200/2400, FETtec Onewire

  • FETtec Alpha FC firmware (KISS FC firmware flashable)

  • Updated onboard OSD

    • Graphic OSD (STM32)
    • Full KISS Tuning
    • Filter (PIDs, Rates, Settings)
    • LED control (RGB LED, Racewire)
    • VTX
    • Live data graphs (Voltage, motor rpm, current, motor temp, gyro values, link quality)
    • KISS GPS support + live map
    • Custom graphic pilot logo
    • Stick overlay
    • Custom layout
    • can be deactivated for usage of digital systems
  • Connector type: JST-SH-1mm



*real Pit-Mode: A power supply pin which is remotely switchable



Dimensions:

dimensionsO2BNL0T723GCJ

  • Maximum outside dimensions: 37,2 x 37,2mm, without outside tips 30 x 30mm

  • Mounting hole arrangement:

    • 20 x 20mm with M2 mounting hole (expandable to M3)
    • 30 x 30mm with M3 mounting hole
    • 30 x 30mm mounting hole tips are removable to reduce overall FC size
  • Overall height: 7,9mm

  • Weight: 5,37g

Firmware:

  • FETtec Alpha FC firmware (KISS FC firmware flashable)

  • FETtec OSD Firmware

Scope of delivery:

  • 1x FETtec FC G4 v1.7
  • 1x 8 pin cable (open on one side)
  • 1x 6 pin cable (open on one side)
  • 1x 4 pin calbe (open on one side)
Available downloads:


More Information

SKU 17236
UPC (GTIN) 764613336795
Manufacturer FETtec
Mounting Pattern Convertible 20x20/30.5x30.5
