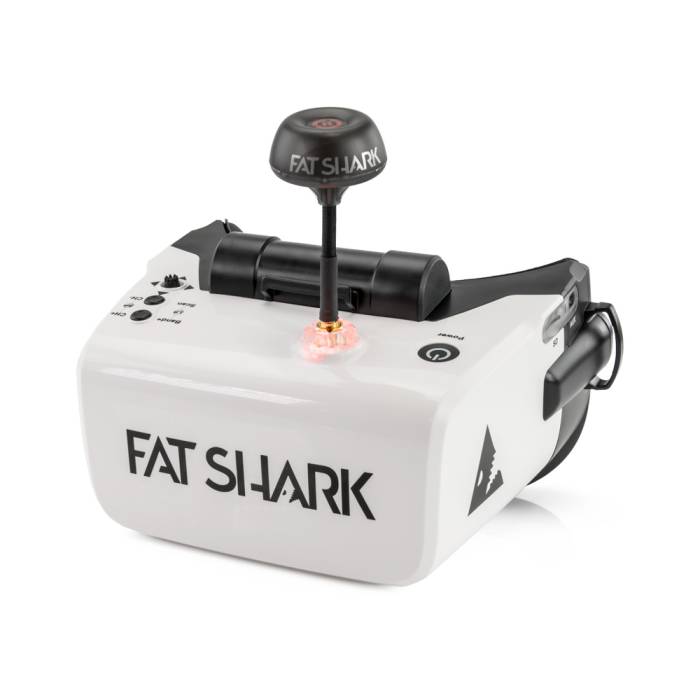

Fat Shark Scout FPV Goggles

Fat Shark Scout FPV Goggles

In Stock

Only left for same day shipping. Order now!
Earn
Fat Shark Scout FPV Goggles
The Scout is the newest Fat Shark product line. It is the culmination of years of work to design a high-performance google at an entry-level price.

About this product

The Scout is the newest Fat Shark product line. It is the culmination of years of work to design a high-performance google at an entry-level price. The Scout uses a patented panel goggle optical module to deliver a 50-degree field of view (FOV), 1136 x 640 resolution and a 60 fps refresh rate in a comfortable-to-wear headset.

In addition to an impressive display, the Scout has completely overhauled electronics performance. It has a diversity RX with an embedded 10 dB patch antenna to maximize reception, an overhauled OSD, an updated DVR, and simple USB charging. The Scout also has several user conveniences including an embedded fan, removable foam to allow for pilots to wear glasses while flying and even an LED indicator on the antenna to provide channel notification.

The Scout is the headset for aspiring pilots that don’t want to upgrade for a long time or a second headset for those that are used to premium performance.

Specifications

Optics

  • FOV (field of view): 50 degrees diagonal
  • Type: Plastic optics

Display

  • 4.0 inch
  • Resolution 1136 X 640
  • NTSC/PAL auto selecting

Audio

  • Stereo

User Controls

  • Channel Selection
  • Band Selection
  • Display Control
  • Volume Control
  • Beep Control
  • RX set
  • Fan Control
  • Clock set
  • Mode Selection (RX/AV/AUX)
  • DVR Control

Electrical

  • Power Supply: Standard 18650 Li-ion battery
  • RF Modules: Infinite channel support on multiple bands
  • Analog DVR: MicroSD support to 64 GB
  • Record Rate: 6Mbps (MJPG compression, 60 fps, MOV)
  • File playback: (native recording, no codec support)
  • Upgradeable via SD card

Battery

  • 3.7V, 2600mAh (18650 cell)

Interface:

  • 3.5mm AV in port
  • 3.5mm 3p earphone port
  • MicroSD
  • USB-C
  • AUX port

Mechanical: Ergonomically molded headset w/ adjustable headband
Dimensions: 170 x 120 x 95 mm
Weight: 336.5 g
Package size: 517g, 189x 133 x 100mm

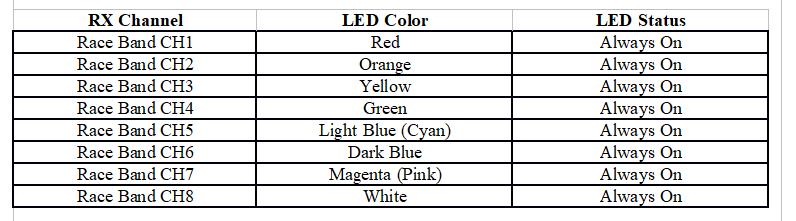

LED Color Meanings

Resources

Scout Manual

Includes

  • 1x Fat Shark Scout FPV Goggles
  • 1x ImmersionRC SpiroNET 5.8GHz SMA Antenna
  • 1x 5G8 Patch Antenna (built-in headset)
  • 1x 18650 2600mAh Battery(built-in headset)

Warning: Exposing the lens to direct sunlight will result in LCD damage.



More Information

SKU 10431
UPC (GTIN) 082652056574
Manufacturer Fat Shark
NDAA Compliant No
Item Returns This item can be returned
