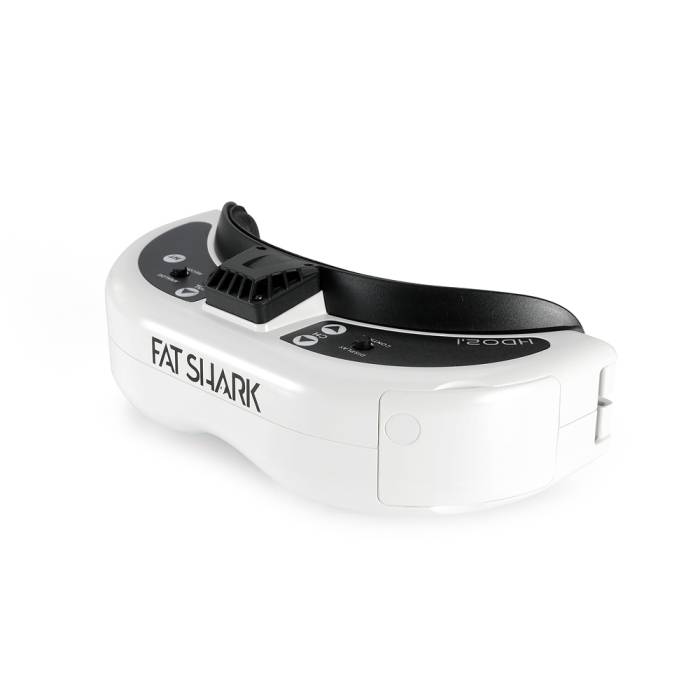

Fat Shark Dominator HDO 2 FPV Goggles

Fat Shark Dominator HDO 2 FPV Goggles

Are you ready to experience FPV like never before? The HDO 2 goggles feature 1280 x 960 OLED panels to provide a dramatically improved image with a 46-degree field of view.


12/10 - Next shipment is estimated to send out around mid-December.

Back Ordered - Ships When Available
$499.99
OR
Description

Things just got personal.

The Dominator HDO2 headset launches as the successor to the much-loved Dominator HDO. The HDO2 uses big 1280 x 960 OLED panels to provide a dramatically improved image with a 46-degree field of view. Display customization is now possible using a new OSD with expanded controls. The HDO2 can be further personalized with adjustable focus, adjustable IPD, adjustable face plate curvature, selectable image ratio, and a configurable power button. The HDO2 is the perfect headset for an experienced pilot looking for the best flight experience.

Click here for the Ultimate FPV Bundle with the HDO 2 Goggles, Receiver module, AXII 2 antenna combo, and accessories.

Fat Shark HDO 2 Overview

Fat Shark HDO 2 Overview

Specifications

Optics

  • FOV (field of view): 46 degrees diagonal
  • IPD (interpupillary distance): 54 to 74 mm (adjustable)
  • Focus: +2 to -6 diopters (adjustable)

Display

  • Two Sony 0.5” OLED displays
  • Resolution 1280 X 960
  • NTCS/PAL auto selecting
  • AV Mode 4:3
  • AV Mode 16:9
  • HDMI Mode 16:9

Audio

  • Stereo

User Controls

  • Channel Selection
  • Volume Control
  • Mode Selection
  • Display Control (Brightness and Contrast)
  • DVR Control
  • Power Button / Fan Control

Electrical

  • Power Supply:
  • 7 – 13V input voltage (2S – 3S Supply)
  • Power Consumption: 320mA @ 7.5V input power (no RX module)
  • 770mA @ 7.5V input power (Rapid
  • Analog DVR: MicroSD support to 32 GB
  • Record Rate: 6Mbps (MJPG compression, 30 fps, AVI)
  • File playback (native recording, no codec support)
  • Upgradeable via SD card

Battery

  • 7.4V, 1.8A 18650 Battery Case (optional))

Interface

  • 3.5mm AV in/out port
  • Power input port
  • 3.5mm 3p earphone port
  • MicroSD
  • RF Module Bay
  • HT connector 3 pin internal connection
  • Power Button

Mechanical

  • Ergonomic molded headset w/ adjustable headband
  • Dimensions: 169.2 x 80 x 45.5 mm
  • Weight: 206.8 g

Includes

  • 1 x Fat Shark Dominator HDO 2 FPV Goggles
  • Carrying Case
  • 7.4V 1865 Battery Case
  • Lens Cleaning Cloth

Warning: Exposing the lens to direct sunlight will result in LCD damage.

How to & Manuals

Videos

Additional Information
SKU 11428
Manufacturer FatShark
UPC (GTIN) 032733834669
