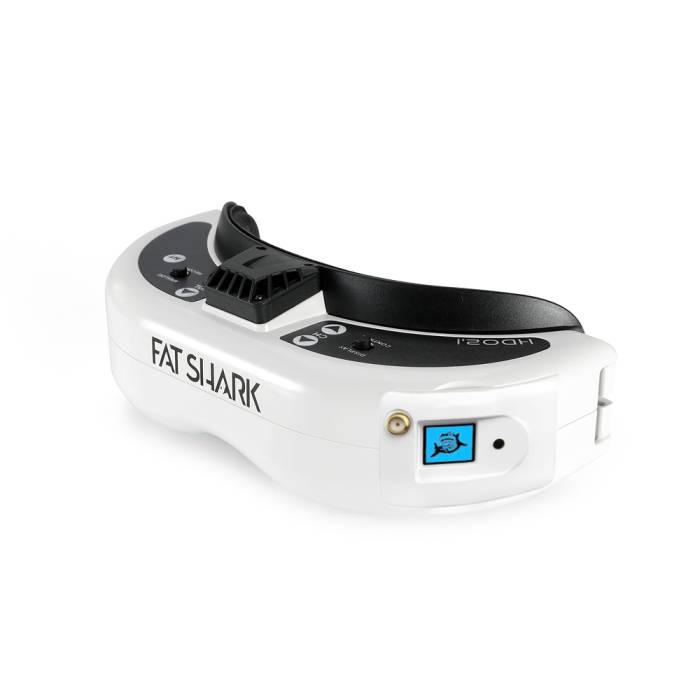

Fat Shark Dominator HDO 2.1 FPV Goggles w/ RX Module

Fat Shark Dominator HDO 2.1 FPV Goggles w/ RX Module

In Stock

Only left for same day shipping. Order now!
Fat Shark Dominator HDO 2.1 FPV Goggles w/ RX Module
The Fat Shark Dominator HDO2.1 headset launches as the successor to the much-loved Dominator HDO2. This version includes an RX Module.

About this product

The Fat Shark Dominator HDO2.1 headset launches as the successor to the much-loved Dominator HDO2. This 2.1 version features updated IPD and Focus Adjuster buttons. The HDO2.1 uses big 1280 x 960 OLED panels to provide a dramatically improved image with a 46-degree field of view. Display customization is now possible using a new OSD with expanded controls. The HDO2.1 can be further personalized with adjustable focus, IPD, face plate curvature, selectable image ratio, and a configurable power button. The HDO2.1 is the perfect headset for an experienced pilot looking for the best flight experience. These goggles include the RX Module.

Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)

Features

  • High Definition Multimedia Interface 1080p Support
  • Updated 2.1 IPD and Focus Adjuster buttons
  • 54-74 mm IPD Range (Adjustable)
  • Switchable 16:9 and 4:3 Format
  • 1280x960 OLED Display
  • Adjustable Face Radius
  • Integrated Analog DVR
  • 2 Sony OLED Displays
  • Modular Reciever Bay
  • RX Module Included
  • 46° Diagonal FOV
  • Adjustable Focus
  • Expansion Port

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

Specifications

GOGGLES

  • User Control: Channel Selection, Volume Control, Mode Selection, Display Control (Brightness and Contrast), DVR Control, Power Button / Fan Control
  • Power Consumption: 320mA @ 7.5V input power (no RX module) / 770mA @ 7.5V input power (Rapid
  • Power Supply:7 – 13V input voltage (2S – 3S Supply)
  • Record Rate: 6Mbps (MJPG compression, 30 fps, AVI)
  • File playback: (native recording, no codec support)
  • Battery: 7.4V, 1.8A 18650 Battery Case (optional)
  • FOV (field of view): 46 degrees diagonal
  • HT connector: 3-pin internal connection
  • Analog DVR: MicroSD support to 32 GB
  • IPD (interpupillary distance):  54-74 mm
  • Focus: +2 to -6 diopters (adjustable)
  • OLED: Two Sony 0.5” OLED displays
  • Earphone port: 3.5mm 3p
  • Upgradeable: via SD card
  • NTCS/PAL auto-selecting
  • Resolution: 1280 X 960
  • AV in/out port: 3.5mm
  • Memory: MicroSD
  • HDMI Mode: 16:9
  • Power input: port
  • Module Bay: RF
  • AV Mode: 16:9
  • Power: Button
  • Audio: Stereo
  • AV Mode 4:3

RX MODULE

  • Designed for: Dominator V2, V3, HD3, HDO 2.1, and Attitude V4 goggles
  • Model: FATSHARK 32CH 5.8 GHZ OLED RECEIVER MODULE
  • 32-channel selection: A, E, Fat Shark, and Race bands
  • OLED screen: Integrated  for channel management
  • Clean integration into Fat Shark headsets: Yes
  • Spectrum Analyzer: Built-in

IMPORTANT NOTES

  • The Fat Shark HDO 2.1 uses an 18650 battery case that requires x2 18650 batteries (Not included). You will also need an additional 18650 Charger to charge your goggle's batteries.

Recommended (Not Included)

Links

  •   (Insert links such as manuals, firmware, etc)

Includes

  • 1x Fat Shark Dominator HDO 2.1 FPV Goggles
  • 1x 7.4V 18650 Battery Case
  • 1x Lens Cleaning Cloth
  • 1x Receiver Module
  • 1x Carrying Case

Featured Videos

ADD VIDEO TITLE HERE IN BOLD CAPS

ADD VIDEO TITLE HERE IN BOLD CAPS



More Information

SKU 21498
UPC (GTIN) 724376356539
Manufacturer Fat Shark
Item Returns This item can be returned
