Fat Shark Attitude V6 FPV Goggles

Fat Shark Attitude V6 FPV Goggles

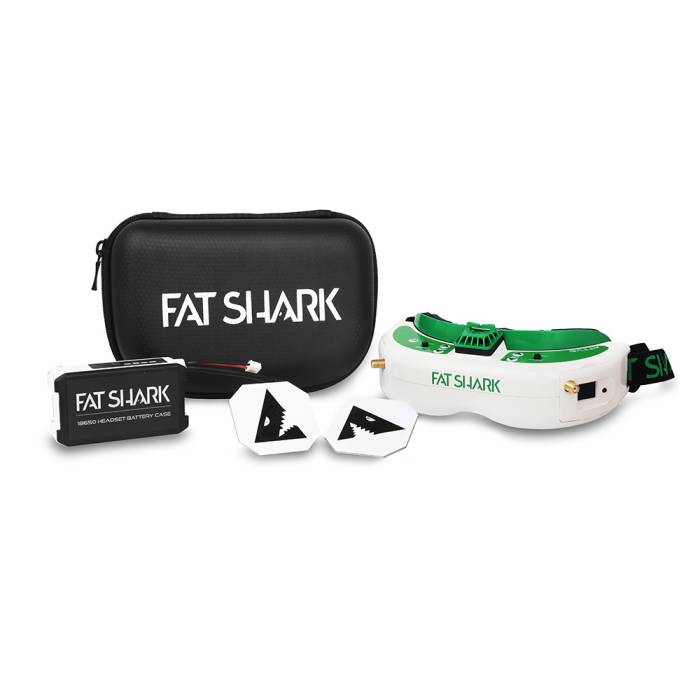

The Fat Shark Attitude V6 FPV Goggles (FSV1124). The modular UVGA LCOS FPV goggles with integrated DVR for analog recording.


First shipment estimated to arrive in Jan. 2021

In Stock
$349.99

Only 1 left

OR
Description

The Fat Shark Attitude V6 FPV Goggles (FSV1124). The modular UVGA LCOS FPV goggles with integrated DVR for analog recording.

Specifications

Optics:
      FOV (field of view):                       39 degrees diagonal

      IPD (interpupillary distance):        54 to 74 mm (adjustable)

      Focus:                                          +2 to -6 diopters (adjustable)



Display:                                              Two citizen 0.4” LCOS displays

                                                            Resolution 1280 X 960

                                                            NTCS/PAL auto selecting

                                                            AV Mode 4:3

                                                            AV Mode 16:9

                                                            HDMI Mode 16:9



Audio:                                                Stereo



User Controls:                                  Channel Selection

                                                             Volume Control

                                                            Mode Selection

                                                            Display Control (Brightness and Contrast)

                                                            DVR Control

                                                            Power Button / Fan Control

Electrical:

      Power Supply:                              7 – 13V input voltage (2S – 3S Supply)

      Power Consumption:                    320mA @ 7.5V input power (no RX module)

                                                            770mA @ 7.5V input power (Rapid

      Analog DVR:                                MicroSD support to 32 GB

                                                            Record Rate:  6Mbps (MJPG compression, 30 fps, AVI)

                                                            File playback (native recording, no codec support)

                                                            Upgradeable via SD card



Battery:                                              7.4V, 1.8A 18650 Battery Case



Interface:                                           3.5mm AV in/out port

                                                            Power input port

                                                            3.5mm 3p earphone port

                                                            MicroSD

                                                            RF Module Bay

                                                            HT connector 3 pin internal connection

                                                            Power Button

Mechanical:                                       Ergonomic molded headset w/ adjustable headband

      Dimensions:                                 169.2 x 80 x 45.5 mm

      Weight:                                         199g

User Manual

Includes

  • 1x Fat Shark Attitude V6 FPV Goggles
  • 1x Carry Case
  • 1x 18650 Headset Battery Case (batteries not included)
  • 1x True Diversity OLED Receiver already installed in the headset
  • 2x Patch Antennas
Additional Information
SKU 14984
Manufacturer FatShark
UPC (GTIN) No
