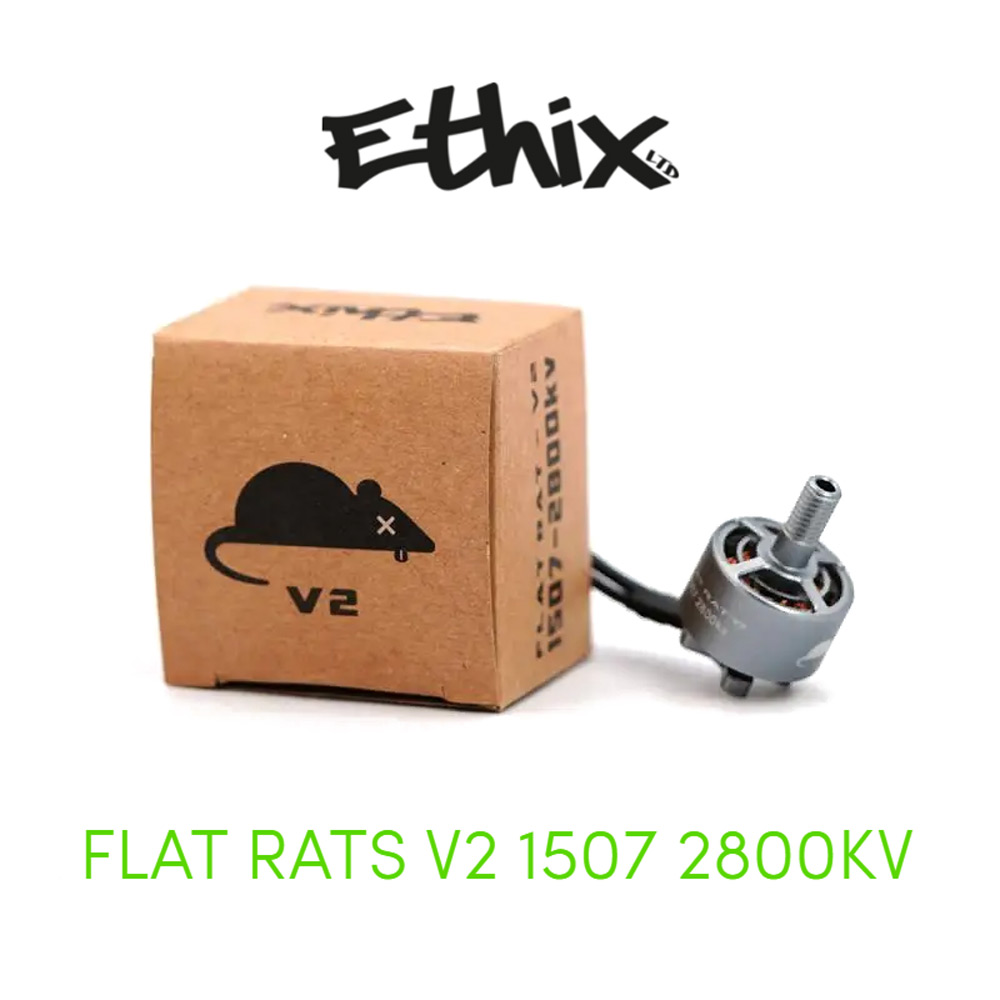

Ethix Flat Rats V2 1507 Motor - 2800KV

The Ethix Flat Rats V2 motors take a twist off the previous model but add a little more power to your existing package and new unibell design.

Realizing that flight times needed to be increased with the weight of newer HD camera options getting bigger, Ethix decided to go with a higher kv winding to increase the thrust but still keep the motor as smooth as possible to achieve more time to get that buttery cinematic footage on your 3” cine frames. Having more power gives you better control and stability in small frames. This motor is 6S capable.

Features

• Higher KV Winding
• Unibell design
• 6S Capable

Specifications

• Stator Size (Diameter): φ15mmx7φ15mmx7
• Motor Overall Dimensions: φ19.8mmx17.5mm
• Shaft Length (mm): 12.5mm 12.5mm
• Base Mounting Thread: M2 Thread
• Internal Resistance (Rm): 0.23mΩ
• Base Mounting Pattern: 12x12mm
• Weight (With Wires) (g): 15.8g
• Wire Spec (AWG): AWG 24#
• Max Burst Current (A): 20A
• Shaft Diameter (mm): 2mm
• Windings: 13.5 turns DLRK
• Magnets N52SH: Curved
• Max Current (A): 15A
• Shaft material: steel
• Bearing: 4x2x2.5
• Cells (Lipo): 6S
• KV: 2800

Includes

• 1x Ethix Flat Rats V2 1507 Motor - 2800KV
