EMAX Tinyhawk Nanoscout AIO - F4 FC + 6A 1S ESC + 400mW VTX + ELRS RX
$87.49
In Stock
Only left for same day shipping. Order now!

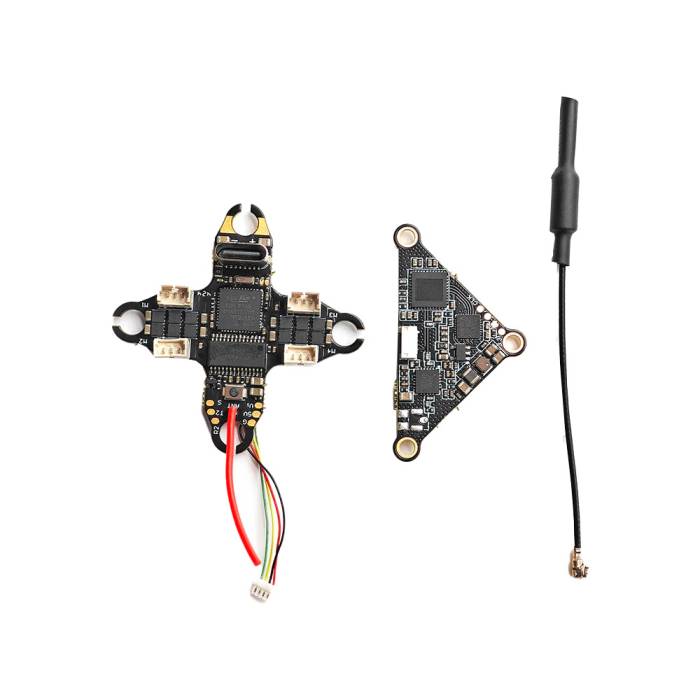

EMAX Tinyhawk Nanoscout AIO - F4 FC + 6A 1S ESC + 400mW VTX + ELRS RX
The EMAX Tinyhawk Nanoscout AIO combines an F4 FC, 6A 1S ESC, 400mW VTX, and ELRS RX for precise control, efficient power, clear video, and long-range connectivity.
About this product
The EMAX Tinyhawk Nanoscout AIO combines an F4 FC, 6A 1S ESC, 400mW VTX, and ELRS RX for precise control, efficient power, clear video, and long-range connectivity. Designed for compact builds, it simplifies assembly without sacrificing performance.
Features
- Compact and Lightweight
- Perfect for Micro Drones
- Built-In ELRS Receiver
- F4 Flight Controller
- All-in-One Design
- 400mW VTX
- 6A 1S ESC
Specifications
- VTX Power Options: Adjustable output at 25mW, 100mW, 200mW, or 400mW
- Onboard Receiver: Built-in ELRS (2.4G) receiver with SPI communication
- 4-in-1 ESC: Integrated 6A 8-bit ESC with 1S input voltage
- Main Control: STM32F411 (100MHz)
- Firmware: EMAX 32-bit
- Mounting Pattern: 25x25
Includes
- 1x EMAX Tinyhawk Nanoscout AIO - F4 FC + 6A 1S ESC + 400mW VTX + ELRS RX
More Information
| SKU | 22714 |
|---|---|
| UPC (GTIN) | 727370524560 |
| Manufacturer | EMAX |
| Country of Manufacture | China |
| NDAA Compliant | No |
| Mounting Pattern | N/A |
| Amps | 6 Amps |
| Flight Controller Processor | F4 |
| Voltage | 1S |
| Number of ESC's | 4 ESC's in 1 |
