EMAX TinyHawk Micro Brushless FPV Drone (RTF Bundle)

EMAX TinyHawk Micro Brushless FPV Drone (RTF Bundle)

EMAX TinyHawk Micro Brushless FPV Drone (RTF Bundle)

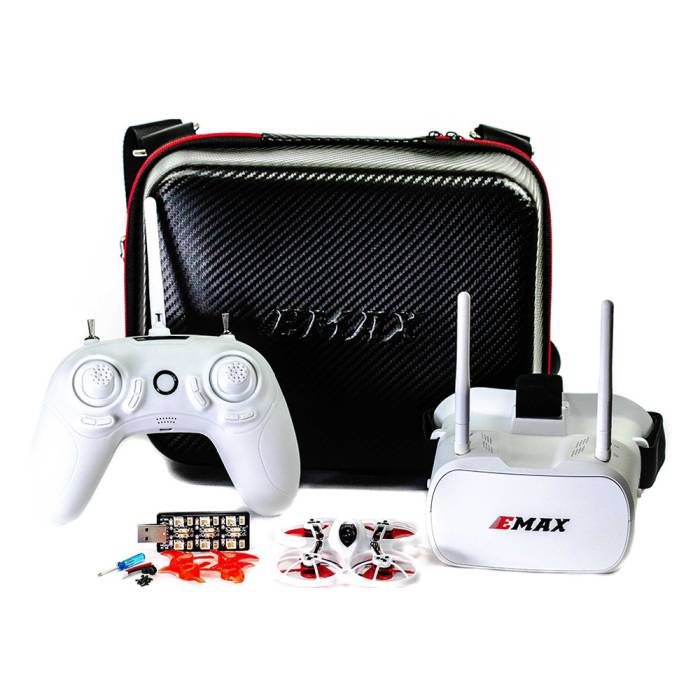

The RTF Bundle gives you everything you need to start flying in just minutes. Everything is included, goggles, radio, and of course the TinyHawk quadcopter!

About this product

The TinyHawk is a micro brushless quadcopter equipped with an amazing F4 processor, FPV camera, 15000kv brushless motors with durable ball bearings

Designed from the ground up, EMAX's innovative design allows the TinyHawk to perform maneuvers that would normally only be able to be done on larger quads.

The RTF Bundle gives you everything you need to start flying in just minutes. Everything is included, goggles, radio, and of course the TinyHawk quadcopter! This bundle is the perfect solution for anyone to learn the basic of FPV flying, beginners and pros alike.

The included receiver is compatible with FrSky D8 mode.

Features

  • 75mm Indoor racing drone
  • 08025 brushless motor with durable ball bearing for increase flight and low maintenance
  • Durable polypropylene plastic frame with propeller guards
  • Motor beeper function. Find your TinyHawk after a crash
  • Speeds up to 56kph
  • Up to 4 minutes flight time on a single battery
  • Fast F4 Processor for smooth stable flight characteristics
  • MPU6000 gyro for vibration free operations
  • Unique inverted motor design to keep CG as low as possible to fit in the smallest of spaces
  • 25mw VTX and 600tvl Camera included for fun FPV flight via FPV style goggles
  • Smart Audio function to change VTX channel via your transmitter
  • OSD settings control to customize flight feel
  • Pre-tuned from the factory with expert pilots and new pilots in mind. 3 rate profile settings for all types of flying feel
  • Plug in type motors for easy maintenance
  • 1s High Voltage (HV) 450mah lipo included
  • FrSky compatible D8 receiver built into FC
  • Custom carbon fiber themed carrying case

Specifications

TinyHawk Specifications

Size and Weight

  • 75mm motor to motor L 110mm x W 95mm x H 39mm
  • Dry Weight: 29g
  • All Up Weight: 42g with 450mah 1s Battery
  • Frame Material: Polypropylene

Propeller Properties

  • Diameter: 40mm
  • Blades: 3
  • Pitch: 23mm
  • Weight: 0.5 g

Motor Properties

  • Stator: 8mm x 2.5mm (08025)
  • Kv: 15000kv
  • Weight: 2.5g
  • Bearing Size: Φ1.5*Φ4*2mm
  • Shaft Diameter: Φ1.5mm
  • Propeller Mount: Press Fit Over Bell

Main PCB

  • Flight Controller: F4(MATEKF411 firmware)
  • ESCs: 4in1 3A
  • Receiver: EMAX Tiny receiver (Compatible with Frsky D8 mode)
  • Battery Connector: JST-PH2

Camera and VTX

  • VTX Power: 25mw
  • Channels: 37CH
  • Camera Properties: 600TVL CMOS
  • Smart Audio

Battery

  • Voltage: 1s 4.35v HV
  • Capacity: 450 mAh
  • Discharge rating: 80c/160c

EMAX Transporter Goggles Specifications

  • Maximum appearance size 140×153×90(mm)
  • Weight (without battery) 398g
  • Resolution 480×272
  • Battery 1 cell 18650 lipo battery

EMAX E6 Transmitter Specifications

  • Maximum appearance size 181×213×80(mm)
  • Weight (without battery) 211g
  • Number of channels 6 Channels
  • Transmission frequency 2.4GHz ISM Band(2400MHz~2483.5MHz)
  • Output Power 22dbm
  • Modulation GFSK
  • Battery 1 cell 18650 lipo battery

Included

  • Lightweight soft carry case, with carbon fiber design
  • Tiny Hawk indoor flying drone
  • USB High Voltage capable 4 port USB Charger
  • 1s High Voltage (HV) 450mah lipo battery.
  • FPV Goggle: EMAX Transporter 40 channel
  • EMAX E6 Transmitter: 6 Channel
  • USB Cable for charging goggle, radio
  • Parts Bag
  • Phillips screwdriver
  • 2x 18650 Battery already pre-installed
  • 1 Set spare AVAN Tinyhawk 3 blade propellers.

Return Policy

Please note that this product is from a manufacturer who requires RMAs to be processed directly with the manufacturer themselves, not GetFPV.

If you feel that your product is defective please contact them directly. GetFPV is asked to follow this policy by the manufacturer.

More Information

SKU 9615
UPC (GTIN) 721248875792
Manufacturer EMAX
NDAA Compliant No
Item Returns This item can be returned
