RS1106 II Motors now come with open bottoms! Prop mounts are now all 4mm apart.
Legendary RS power for micro FPV racing quadcopters available in 7500, 6000 and 4500KV.
The new RS1106 brushless motor line sets a new standard in performance for the 2” propeller class. With 3 KV choices, each optimized for 2s and 3s batteries for insane speed in a tiny package.
The RS1106 has 6mm tall stator to provide the instantaneous torque that is usually lacking in high KV 1104 motors. The RS1106 is also one of the only micro brushless motors with active cooling fins integrated into the bell to keep magnets cooler so the power is consistent lap after lap.
For micro builds it’s important to have as little mechanical vibration to get the best performance from your flight controller. To ensure smoothness each motor is precision CNC, uses premium ball bearings and comes factory balanced.
- Perfect with 2 to 3 inch paddle, pull up to 330g
- N52SH super magnet
- Open bottoms save weight

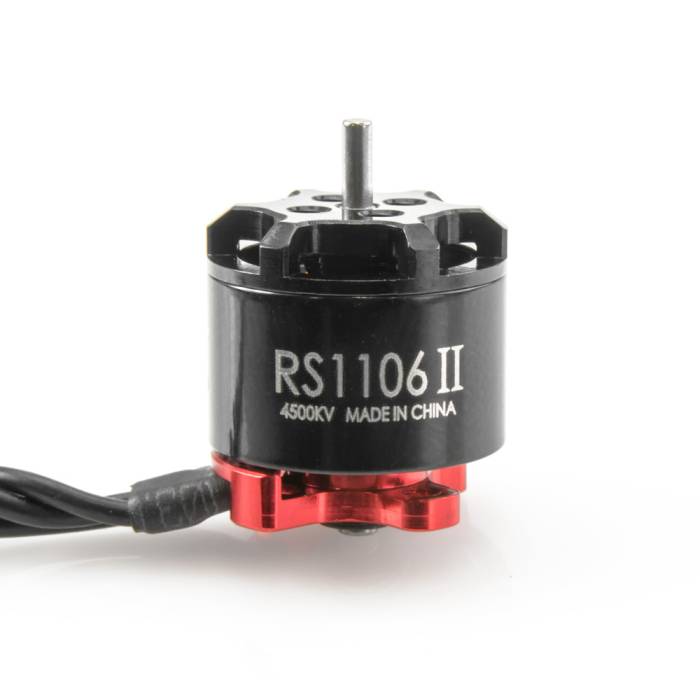

- Item name: RS1106 II RaceSpec Motor
- KV: 4500KV/6000KV/7500KV
- Framework: 9N12P
- Length: 14.5mm
- Diameter: 14.2mm
- No.of cells: 2-3S lipo
- Shaft: 1.5mm
- Weight: 7g
- 1x EMAX RS1106 II 4500KV Micro Brushless
- Additional Information
SKU 7570 Manufacturer EMAX UPC (GTIN) 769923257037 Popo Compatible No
Regular Price: $17.90
Special Price $15.99
