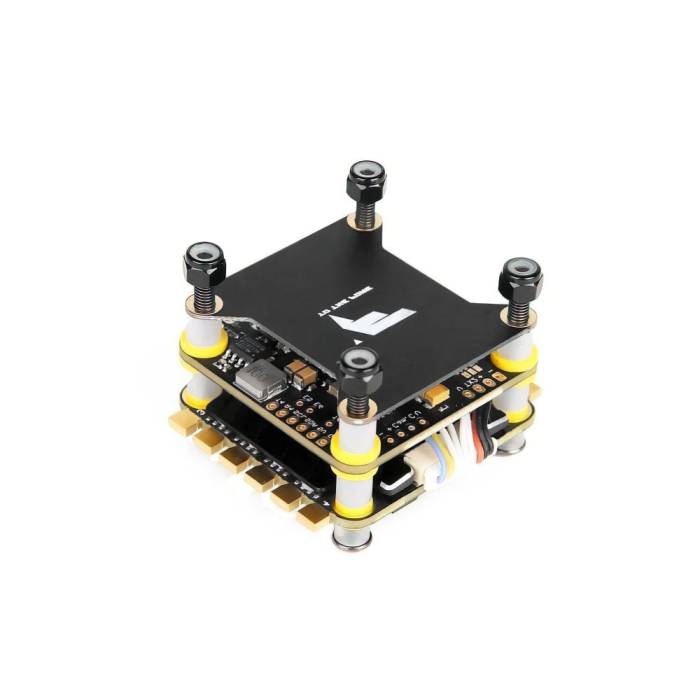

T-Motor Pro II HD Stack - F7 FC + 55A 3-6S AM32 4-in-1 ESC - 30x30
$174.99
Out of Stock
Only left for same day shipping. Order now!
T-Motor Pro II HD Stack - F7 FC + 55A 3-6S AM32 4-in-1 ESC - 30x30
The T-Motor Pro II HD Stack combines an F7 flight controller with a 55A 3-6S AM32 4-in-1 ESC for precision and reliability.
About this product
The T-Motor Pro II HD Stack combines an F7 flight controller with a 55A 3-6S AM32 4-in-1 ESC for precision and reliability. Its 30x30 mounting design ensures wide compatibility, while AM32 firmware delivers smooth throttle response. Ideal for freestyle, racing, and cinematic builds, it offers exceptional power and control.
Features
- 30x30 Mounting Design
- Versatile Applications
- Durable Construction
- 55A 3-6S 4-in-1 ESC
- F7 Flight Controller
- AM32 Firmware
Specifications
ESC
- Support DSHOT150/300/600/1200
- Weight: 17.3g (Including Heatsink)
- Continuous current: 4*55A
- BEC Output: 10V @2.0A
- Burst current: 4*75A
- Firmware: BLHeli_32
- Size: 45x41x7.3mm
FC
- Firmware Target: TMOTORF7 (Betaflight)
- Mounting Holes: 30.5mm x 30.5mm
- Input Voltage: 12v-25-2v (3-6S)
- Dimensions: 37mm x 37mm
- MCU: STMF722RET6
- BEC: 5V/2A, 10V 2A
- Memory: 16M
- Gyro: BMI270
- Weight: 8.4g
Includes
- 1x T-Motor Pro II HD 55A 3-6S AM32 4-in-1 ESC
- 1x T-Motor F722 Flight Controller - 30x30
- 1x Electronic Capacitor
- 1x Hardware Kit
- 1x ESC Cable
More Information
| SKU | 22878 |
|---|---|
| UPC (GTIN) | 6977814600877 |
| Manufacturer | Tiger Motors |
| Country of Manufacture | China |
| NDAA Compliant | No |
| Mounting Pattern | 30.5x30.5mm |
| Amps | 55 Amps |
| Flight Controller Processor | F7 |
| Voltage | 3-6 Cell (12.6-25.2V) |
| ESC Firmware | AM32 |
| Number of ESC's | 4 ESC's in 1 |
