SkyStars Fly Tower Stack - F722 HD Pro2 FC + KM50 Pro 50A 3-6S 4-in-1 BLHeli_32 ESC - 30x30
SkyStars Fly Tower Stack - F722 HD Pro2 FC + KM50 Pro 50A 3-6S 4-in-1 BLHeli_32 ESC - 30x30
SkyStars Fly Tower Stack - F722 HD Pro2 FC + KM50 Pro 50A 3-6S 4-in-1 BLHeli_32 ESC - 30x30

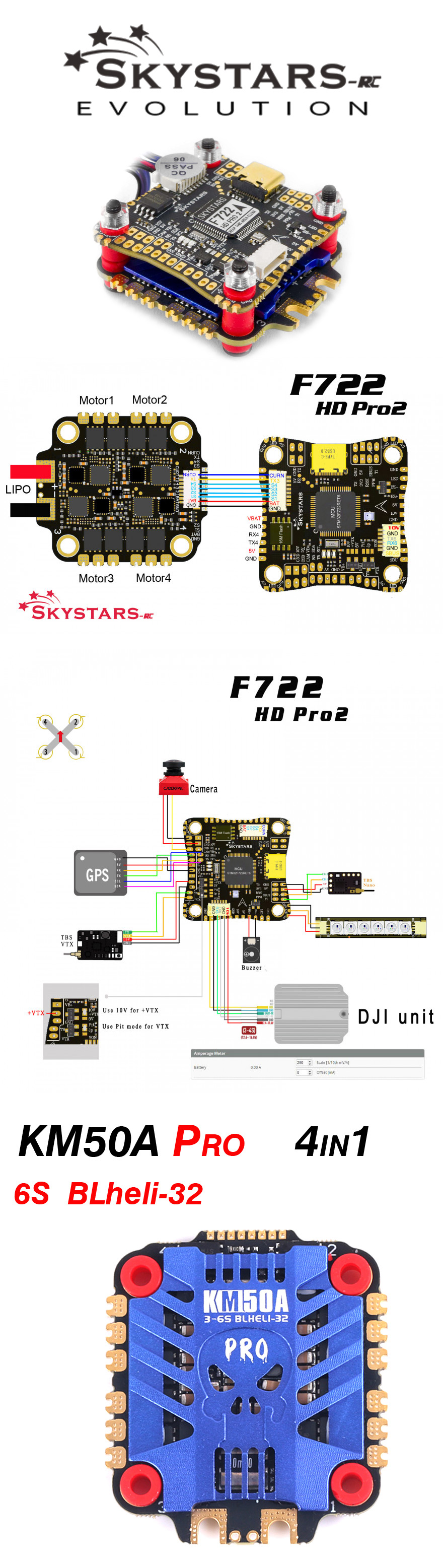

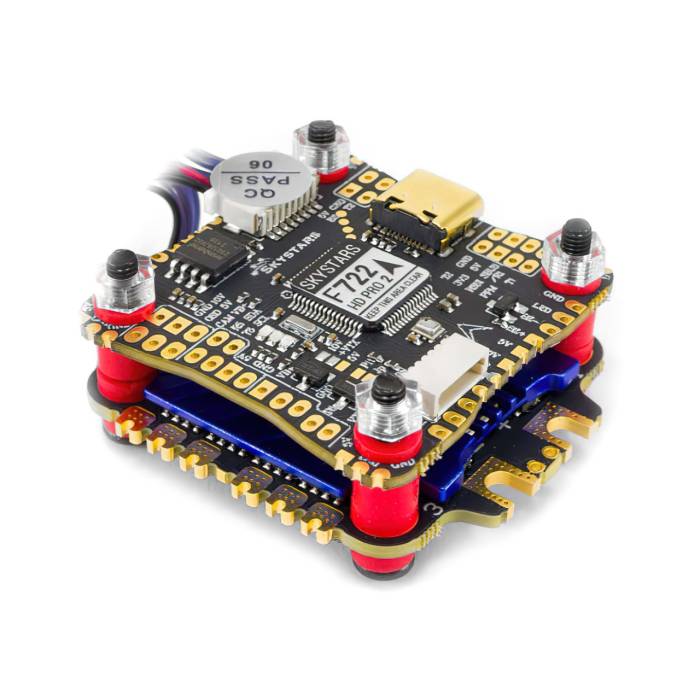

The SkyStars Fly Tower Stack features an F722 HD Pro2 Flight Controller and a KM50 Pro 50A 3-6S 4-in-1 BLHeli_32 ESC with a 30x30 mounting pattern.
About this product
The SkyStars Fly Tower Stack features an F722 HD Pro2 Flight Controller and a Kramam KM50 Pro 50A 3-6S 4-in-1 BLHeli_32 ESC with a 30x30 mounting pattern.
Features
- High efficiency heatsink (low specific heat capacity) for better cooling
- PCB uses 3 oz copper which reduces heat and increases system efficiency
- Rubber vibration isolation to prevent cracking in the event of a fall
- Supports telemetry functions (voltage, RPMS and current)
- Flashed with the latest Blheli_32 firmware
- Panasonic ZLH Ultra Low ESR Capacitor
- Supports custom ESC startup sounds
- Large motor pads for easy soldering
- Using aluminum alloy for heatsink
- F722 HD Pro2 Flight Controller
- Built-in overcurrent protection
- KM50 Pro 50A ESC
Specifications
KM50 PRO 50A ESC
- Mounting Hole Pattern : 30.5mm / M3
- Input voltage : 3-6S LiPo / LiHV
- ESC Protocol : Dshot 600/1200
- Product size : 41x46x7.6mm
- Overcurrent Protection : Yes
- Peak Current : 60A (10S)
- Continous Current : 50A
- Firmware : Blheli_32
- Weight : 17g
- BEC : NO
F722 HD PRO2 FC
- Receiver: Support Sbus, crsf, ibus, Spektrum 1024/2048, SBUS, XBUS, SumD and SumH RX. Built-in inverter, support 3.3v spectrum satellite receiver, support PPM receiver. The default receiver input is UART 1, the F7 has a built in inverter that can be used in any free UART.
- LED: 4 independent LED pads, support WS2812 programming
- Mounting Holes: Standard 30.5mm square to center of holes
- Item name: F722HD Pro 2 Betaflight Flight Controller
- OSD: Betaflight OSD & DJI HD OSD (UART6)
- Input Voltage: 3-6S LiPo(11.1V~22.2V)
- 6 Hardware UARTS (UART123456)
- MCU: STM32F722RGT6 216MHz
- Firmware: SKYSTARS F7HD
- Dimensions: 38.5x40x6.2mm
- USB connection: USB-C
- IMU: MPU6000 (SPI)
- BEC 5V 3A & 10V 3A
- Buzzer Pad: YES
- Black box: 16MB
- CURR pad: YES
- RSSI Pad: YES
- Weight: 6.8g
Includes
- 1x SkyStars Fly Tower Stack - F722 HD Pro2 FC + KM50 Pro 50A 3-6S 4-in-1 BLHeli_32 ESC - 30x30
- 1x Connecting Cable
- 1x XT60 Connector
- 1x Capacitor
More Information
SKU | 17760 |
---|---|
UPC (GTIN) | 764613343199 |
Manufacturer | SkyStars |
NDAA Compliant | No |
Mounting Pattern | 30.5x30.5mm |
Item Returns | This item can be returned |
