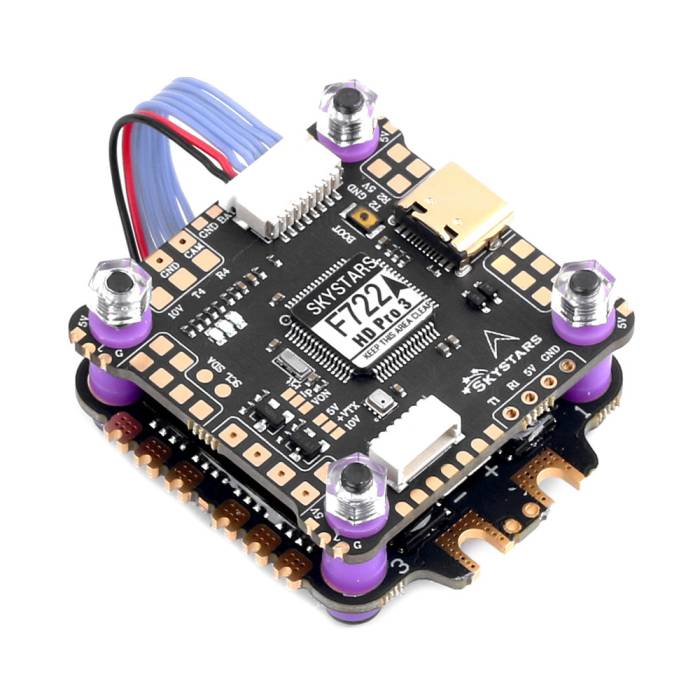

The SkyStars Fly Stack features an F722 HD Pro 3 OSD flight controller and a KO60 60A BLHeli_32 4-in-1 128K ESC with a 30x30 mounting pattern!

Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)

VIDEO: (Insert Video Title here in Bold)

• F722 HD Pro 3 OSD Flight Controller
• Betaflight OSD & DJI HD OSD
• 30x30 Mounting Pattern
• K060 60A 128K ESC
• 3-6S LiPo Support
• Barometer

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

F722 HD PRO 3 OSD FLIGHT CONTROLLER

• Receiver: Support Sbus, crsf, ibus, SBUS, XBUS, support 3.3v Spektrum satellite receiver, The default receiver input is UART1(You can solder ELRS RX on UART1), F7 has a
• Installation size: 30.5mm × 30.5mm (The installation hole is M4 and supports shock column installation)
• BEC: 5V/10V 3A max dual-channel BEC supports stable power supply on the sky side of DJI
• LED: 4 LED independent pads, support WS2812 programming lamp output.
• 1x JST-SH1.0_8pin connector (Gnd/Vbat/S1/S2/S3/S4/Rx3/Curr)
• LEDs for FC STATUS (Blue, Green) and 3.3V indicator(Red) :3
• 1x JST-SH1.0_6pin connector (R1/G/R6/T6/G/10V)
• OSD: Betaflight SPI OSD DJI HD OSD(UART6)
• BetaFlight firmware: SKYSTARSF722Pro
• INAV firmware: SKYSTARSF722HD
• MCU: STM32F722RGT6 216MHz
• External size: 39mm × 39mm
• 6x Uarts: UART 1/2/3/4/5/6
• USB Type: Type-C (USB2.0)
• Flight control weight: 6.9g
• LDO 3.3V: Max.250mA
• Barometer :Bmp280
• Input voltage: 3-6S
• Gyroscope: BMI270
• Black box: 16MB
• PWM outputs: 4
• I2C: 1

KO60 60A 4-IN-1 128K ESC

• Support 128K Dshot1200, Dshot600, Dshot300, Dshot150, Oneshot125, Multishot, PWM control signal
• Power supply voltage: 3-6S (12-26V)
• Screw hole spacing: 30.5*30.5MM
• Continuous working current: 60A
• No built-in 5V BEC output
• Firmware: BLHELI 32 ESC
• Aperture: 4MM
• Weight: 14.6g

IMPORTANT NOTES

• Insert important warnings or notes here. Example: "Do not overheat." or "Always use the included charger for best performance."

•  (Insert recommended products here. Example: "Battery: Lumenier 10000mAh 6s 25c Lipo Battery")

•   (Insert links such as manuals, firmware, etc)

• 1x SkyStars Fly Stack - F722 HD Pro 3 OSD FC + KO60 60A 3-6S 4-in-1 BLHeli_32 128K ESC - 30x30
• 1x JST-GH-6P cable for DJI port, 10cm
• 8x Silicon grommets M4 to M3
• 2x JST-SH1.0_8pin cable, 4cm
