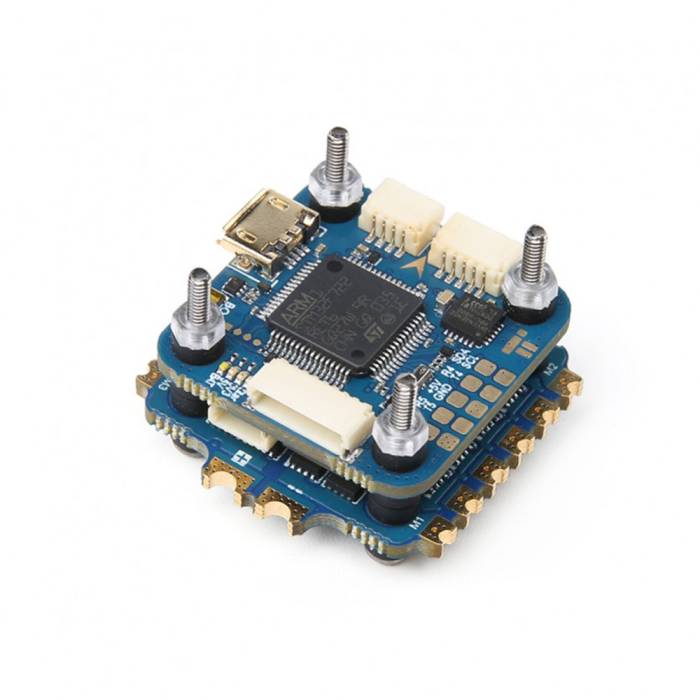

The SucceX-E Mini F7 Stac by iFlight includes the advanced SucceX-E Mini F7 Flight Controller along with the SucceX-E Mini 35A 4-in-1 ESC, which can handle up to 6S input voltage and push your FPV racer to the max!

This stack is plug and play - meaning that no soldering is needed. You can plug this stack into your Caddx Vista, analog VTX and it comes with a universal receiver plug!

FC // SucceX-E Mini F7

Features

• Gold-plated plug
• BlackBox: 8MB
• Vista HD Plug-and-Play. No need to solder tiny wires.
• BAT, +5V, 3.3, Start indicator
• Smart audio & IRC Tramp VTX protocol supported

Specifications

• MCU: STM32F22RET6 216 MHz
• Gyro: MPU6000
• Baro: BMP280(I2C）
• OSD: IFLIGHT OSD （AT7456E）
• BEC: 5V 2.5A
• BlackBox: 8MB
• Uart: 4*UART(UART1、UART2、UART4、UART5)
•  UART1 for VTX HD/Analog Telemetry
• UART2 for Receiver
• UART4 for GPS
• UART5 for ESC Telemetry
• 4×Dshot/PWM outputs
• Smart audio & IRC Tramp VTX protocol supported
• WS2812 led Strip: Yes
• Beeper: Yes
• Firmware: IFLIGHT_SUCCEX_E_F7 4.2.0
• Outer Size: 27*27mm / 20*20mm φ3 mounting
• Weight: 4.9g

Physical

• Mounting hole: 20*20mm，φ3mm
• Size: 27*27mm

ESC // SucceX-E Mini 35A

Features

• 6 layers double-sided PCB board
• 2oz 1.4mm thick power board
• TDK MLCC Low ESR ceramic capacitors
• Top grade 2R203 MOSFET

Specifications

• MCU: BB21 F16G
• BLHeliS
• Capacitance: 470uF/50V
• Current Sensor: Yes
• Input: 2-6S LIPO
• Constant: 35A / Burst: 40A
• BEC: No
• Supports up to Dshot600, Proshot, Oneshot, Multishot
• Target: G-H-30
• BLHeliSuite
• download: http://www.mediafire.com/file/1tn449x6815upat/BLHeliSuite16714901.zip/file
• Weight: 6.9g
• Mounting pattern: 20*20, φ3mm with Grommets φ2mm
• Dimensions: 31*30mm (including the power pads)
• 5.8G SucceX Micro 300mW VTX (OPTIONAL)
• Power: PIT/25/100/200mW/300mW
• VTX protocol : IRC Tramp
• Size: 13.5x14.5mm
• Weight: 1.4g
• Size Extender (stackable adapter):
• Mini VTX size: 20x20mm, 2mm hole, total weight (incl. VTX): 3.4g
• Antenna interface: IPEX (UFL)

Includes

• 1 x SucceX-E mini F7 Flight Controller
• 1 x SucceX-E mini 35A 4in1 ESC
