Holybro Kakute H7 BT Stack - Tekko32 F4 Metal 65A 4-in-1 ESC + AtlatI HV V2
Holybro Kakute H7 BT Stack - Tekko32 F4 Metal 65A 4-in-1 ESC + AtlatI HV V2
$212.99
Holybro Kakute H7 BT Stack - Tekko32 F4 Metal 65A 4-in-1 ESC + AtlatI HV V2

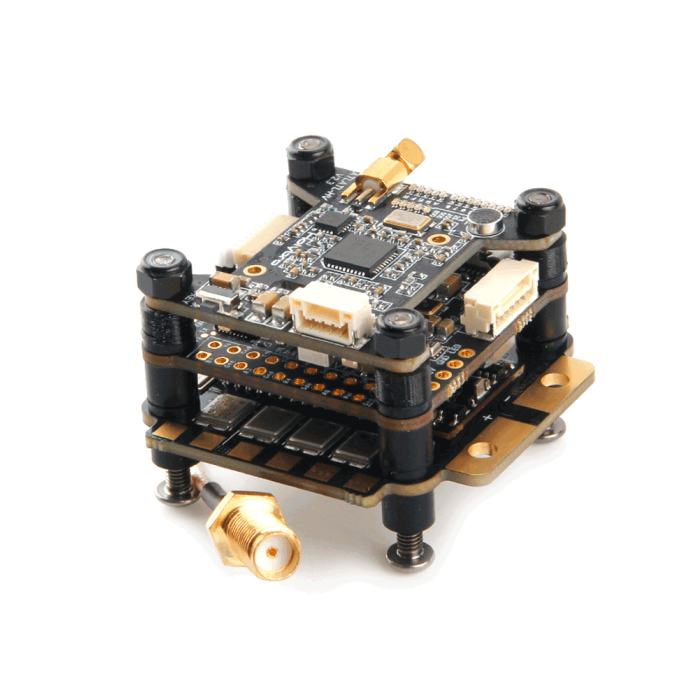

The Mini Kakute H7 BT Stack by Holybro comes with the Kakute H7 FC, Tekko32 F4 Metal 4-in-1 ESC (65A), and the Atlatl HV V2 VTX. Holybro is saving you time and guesswork by making this powerful stack that will give you max performance and great video quality!
About this product
The Mini Kakute H7 BT Stack by Holybro comes with the Kakute H7 FC, Tekko32 F4 Metal 4-in-1 ESC (65A), and the Atlatl HV V2 VTX. Holybro is saving you time and guesswork by making this powerful stack that will give you max performance and great video quality!
Kakute H7 Flight Controller
Specifications
- MCU - STM32H743 32-bit processor running at 480 MHz
- IMU - MPU6000
- Barometer - BMP280
- OSD - AT7456E
- Onboard Bluetooth chip - ESP32-C3
- SpeedyBee IOS & Android App Compatible
- Note: The Bluetooth onboard is set to automatically turn off when the flight controller is unlocked (arm) and turn on automatically when the flight controller is locked (disarm).
- 6x UARTs (1,2,3,4,6,7; UART2 is used for Bluetooth telemetry)
- 9x PWM Outputs (8 Motor Output, 1 LED)
- 2x JST-SH1.0_8pin port (4in1 ESCs, x8/Octocopter compatible)
- 1x JST-GH1.5_6pin port (For HD System like Caddx Vista & Air Unit)
- Battery input voltage: 7V to 42V
- BEC 5V 2A Cont.
- BEC 9V 1.5A Cont.
- Mounting - 30.5 x 30.5mm/Φ4mm hole with Φ3mm Grommets
- Dimension - 35x35mm
- Weight - 8g
Tekko32 F4 Metal 65A 4-in-1 ESC
Features
- New & faster F4 MCU @ 150Mhz (compared to F3 @108Mhz & F0 @48Mhz)
- PWM output up to 96K (default 48K)
- Metal-cased MOSFET for excellent heat dissipation
- Massive on-board capacitance for noise filtering at 2068uf
- 3 oz copper PCB design to allow bigger current and better heat dissipation
- A separate drive & control circuit broadens the current capability of the drive circuit while reducing the electrical interference to the control circuit.
Specification
- Continuous Current: 65A x4
- Burst Current: 75A x4
- Supports 4-6S battery
- Supports DShot 150/300/600/1200 & MultiShot/OneShot/Proshot/PWM etc.
- ESC telemetry Supported
- Onboard analog current sensor
- No output BEC
- BLHeli_32 firmware
- 1000uf 35v capacitor included (highly recommended for 6s setup)
- Amperage meter scale ratio: 168
- Dimensions: 43 x 44mm / Weight: 15.8g
- Mounting holes: M4 30.5x30.5mm (M3 grommets included)
PIN MAP
Atlatl HV V2 5.8GHz VTX
Specifications
- Output Power: 0.5 mW (pit mode), 25 mW, 200 mW, 500 mW, 800 mW
- Audio: 6.5 MHz Mono
- Antenna Connector: MMCX
- Input Voltage: 7 to 28 volts (2-6S LiPo) with absolute maximum 42 volts
- Dimensions: 35x25x7mm (Includes USB height)
- Mounting Holes: Standard 30.5mm square to the center of holes
- Weight: 9.3g
Includes
- 1 x Kakute H7 BT STACK
- 1 x Electrolytic capacito: 1000uF 35v
- 1 x 8pin to 8pin 1mm pitch 65mm cable
- 1 x 8pin to 8pin 1mm pitch 25mm cable
- 1 x JST GHR 8pin to JST GHR 6pin 80mm cable (for DJI/Caddx HD System)
- 1 x JST GHR 6pin 100mm cable(for Caddx HD Systems)
- 1 x 80mm SMA–MMCX Cable
- 1 x JST GHR 4pin 150mm cable
More Information
SKU | 17518 |
---|---|
UPC (GTIN) | 764613339840 |
Manufacturer | Holybro |
NDAA Compliant | No |
Mounting Pattern | 30.5x30.5mm |
Item Returns | This item can be returned |
