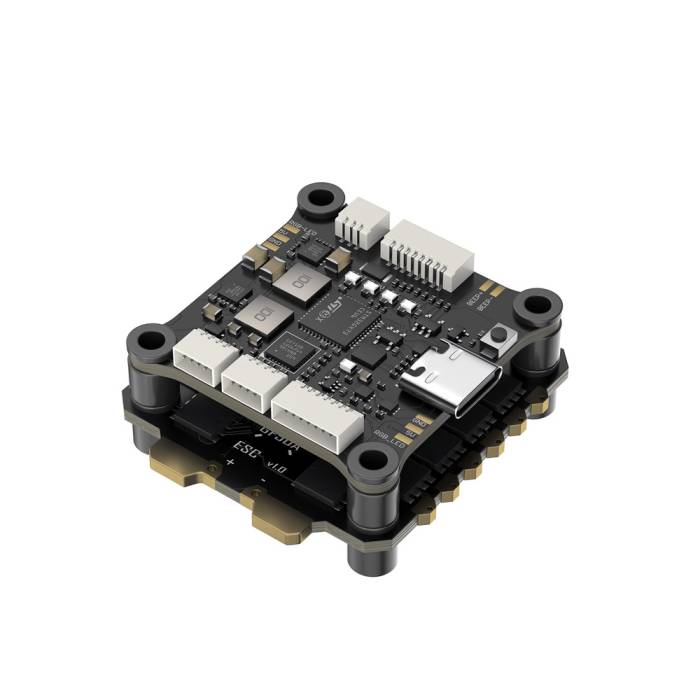

GEPRC FETtec Alpha Stack - G4 FC + 50A 2-6S 4-in-1 ESC - 30x30
Out of Stock
About this product
The co-branded GEPRC FETtec G4 Alpha GF50A Stack by GEPRC and FETTEC has been released. The flight controller features a G473 central controller, built-in FETTEC Alpha firmware, and S2M or Dshot2400 high-speed protocols, paired with the GF50A ESC to achieve exceptional stability and lightning-fast responsiveness. Additionally, the powerful FETTEC closed-source firmware and feature-rich software will elevate your FPV flight experience to new levels.
Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)
VIDEO: (Insert Video Title here in Bold)
Features
- SH1.0 Cable Connection
- High-Speed Protocols
- Dual-Socket Support
- Robust Design
- Firmware
USE BULLETED FEATURE HERE IN BOLD CAPS.
Add additional feature descriptions here to describe the above.
USE BULLETED FEATURE HERE IN BOLD CAPS.
Add additional feature descriptions here to describe the above.
Specifications
FLIGHT CONTROLLER
- BEC Output: 9V @ 2A (Max 2.5A), 5V @ 2A (Max 2.5A)
- Firmware: FETTEC ALPHA
- MCU: STM32G473CEU6
- USB Interface: Type-C
- External Buzzer: Yes
- OSD: FETTEC OSD
- External LED: Yes
- IMU: ICM 42602
- Weight: 6.6g
ESC
- Installation Hole Position: 30.5 mm x 30.5 mm (M4)
- Protocol: S2M + OW, S2M, Dshot300-2400
- Dimension: 32 x 32 mm Board
- Continuous Current: 50A
- Input: 2-6S (LiPo Battery)
- MCU: STM32G071
- Firmware: FETTEC
- Peak Current: 55 A
- Galvanometer: Yes
- Weight: 13g
IMPORTANT NOTES
- Insert important warnings or notes here. Example: "Do not overheat." or "Always use the included charger for best performance."
Recommended (Not Included)
- (Insert recommended products here. Example: "Battery: Lumenier 10000mAh 6s 25c Lipo Battery")
Links
- (Insert links such as manuals, firmware, etc)
Includes
- 1x SH1.0-6P to SH1.0-7Pin silicone cable 60 mm
- 1x GEPRC FETtec 50A 2-6S 4-in-1 ESC - 30x30
- 1x GEPRC FETtec G4 Alpha Flight Controller
- 1x SH1.0 7Pin to 6Pin 80 mm silicone cable
- 2x SH1.0-4Pin 100 mm silicone wire
- 1x SH1.0 8Pin 30 mm silicone cable
- 1x XT60 power cable 110 mm
- 1x 35V 1000 µF capacitor
- 1x Product manual
Featured Videos
ADD VIDEO TITLE HERE IN BOLD CAPS
ADD VIDEO TITLE HERE IN BOLD CAPS
More Information
| SKU | 22412 |
|---|---|
| UPC (GTIN) | 723326369407 |
| Manufacturer | GEPRC |
| Country of Manufacture | China |
| NDAA Compliant | No |
| Mounting Pattern | 30.5x30.5mm |
| Amps | 50 Amps |
| Flight Controller Processor | G4 |
| Voltage | 2-6 Cell (8.4v-25.2v) |
| Number of ESC's | 4 ESC's in 1 |
