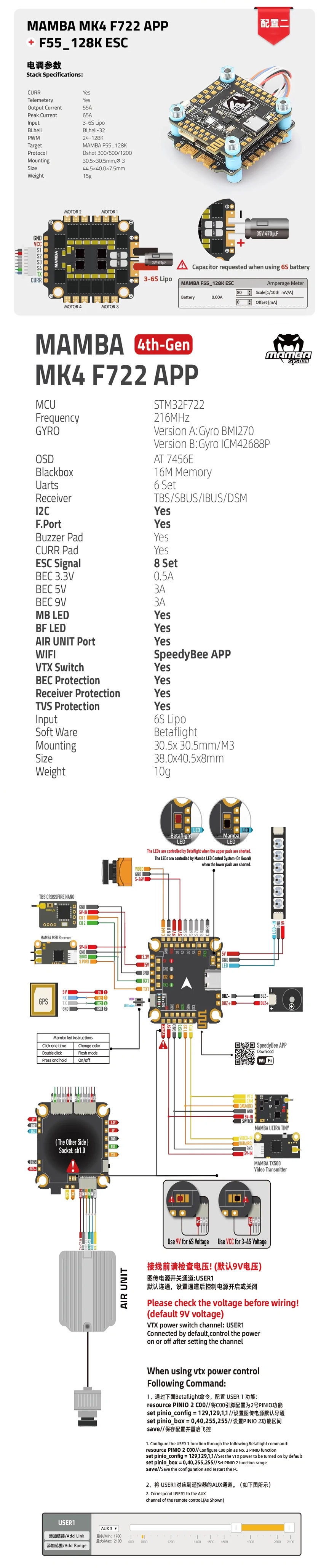

Diatone Mamba Stack - MK4 F722 APP FC + 55A 3-6S BHeli_32 128K ESC (ICM42688P)
Diatone Mamba Stack - MK4 F722 APP FC + 55A 3-6S BHeli_32 128K ESC (ICM42688P)
In Stock
About this product
The Diatone Mamba MK4 Stack features an MK4 APP F722 Flight Controller and 55A 128K ESC. Featuring an OSD, ICM42688P Gyro, and 128 Memory Blackbox, this stack is the perfect addition to your FPV build.
Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)
VIDEO: Diatone Mamba H743 MK4 FC & 128K ESC Unboxing
Features
- 30.5 x 30.5mm Mounting Pattern
- 128M Flash Memory Blackbox
- 3~6S Lipo (12.6~25.2V) Input
- MAMBA MK4 F722 APP FC
- F55 55A 128K ESC
- ICM42688P GYRO
- 6 Uarts
- Buzzer
- OSD
USE BULLETED FEATURE HERE INÂ BOLD CAPS.
Add additional feature descriptions here to describe the above.
USE BULLETED FEATURE HERE INÂ BOLD CAPS.
Add additional feature descriptions here to describe the above.
Specifications
MAMBA MK4 APP FC
- Receiver: TBS/SBUS/|IBUS/DSM
- Mounting: 30.5x 30.5mm/M3
- Receiver Protection: Yes
- Blackbox: 16M Memory
- Size: 38.0x40.5x8mm
- WIFI: SpeedyBee APP
- Frequency: 216MHz
- Software: Betaflight
- BEC Protection: Yes
- TVS Protection: Yes
- AIR UNIT Port: Yes
- MCU: STM32F722
- Gyro: ICM42688P
- ESC Signal: 8 Set
- Buzzer Pad: Yes
- VTX Switch: Yes
- OSD: AT 7456E
- BEC 3.3V: 0.5A
- CURR Pad: Yes
- Input: 6S Lipo
- MB LED: Yes
- Weight: 10g
- BF LED: Yes
- Uarts: 6 Set
- BEC 9V: 3A
- BEC 5: 3A
- F.Port: Yes
- 12C: Yes
55A 128K ESC
- Target：BLHeli_32 MAMBA F55_128K
- Input Voltage: 3~6S Lipo 12.6-25.2V
- Mounting Pattern: 30.5mm/M3
- Protocol: Dshot300/600/1200
- Continuous Current: 55A×4
- Burst Current: 65A (10S)
- BLHeli: BLHeli_Suite32
- TVS Protection: Yes
- PWM:24~128K
- BEC: No
(INSERT VTX TITLE HERE IN BOLD CAPS)
- Â
IMPORTANT NOTES
- Insert important warnings or notes here. Example: "Do not overheat." or "Always use the included charger for best performance."
Recommended (Not Included)
- Â (Insert recommended products here. Example: "Battery: Lumenier 10000mAh 6s 25c Lipo Battery")
Links
- Â (Insert links such as manuals, firmware, etc)
Includes
- 1x Diatone Mamba Stack - MK4 F722 APP FC + 55A 3-6S BHeli_32 128K ESC
- 5x M3 ESC Isolation Dampers
- 5x M3 Silicone Dampers
- 1x 6-Pin Air Unit Cable
- 2x 8-Pin Cable
Featured Videos
ADD VIDEO TITLE HERE IN BOLD CAPS
ADD VIDEO TITLE HERE IN BOLD CAPS
More Information
| SKU | 19101 |
|---|---|
| UPC (GTIN) | 764613348828 |
| Manufacturer | Diatone |
| NDAA Compliant | No |
| Mounting Pattern | 30.5x30.5mm |
| Item Returns | This item can be returned |
