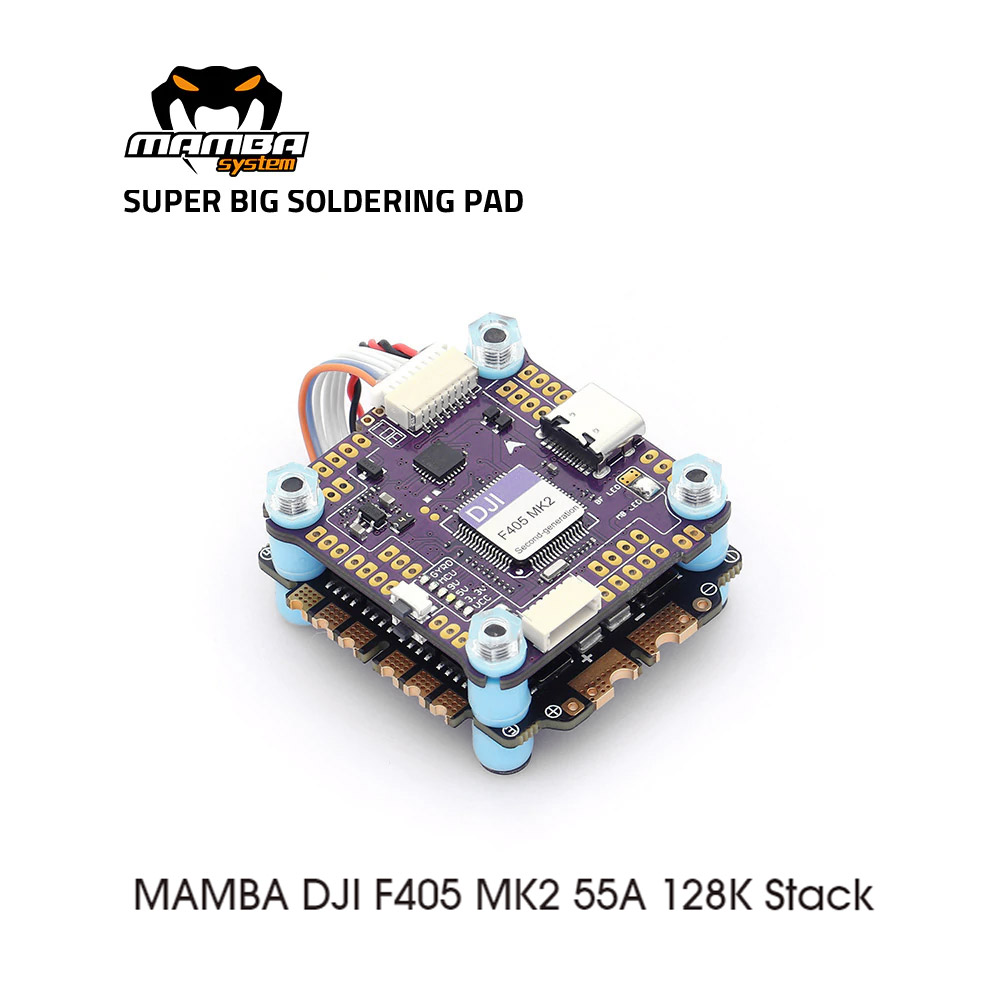

Diatone Mamba Stack - DJI F405 MK2 FC + F55 55A 128K ESC

The Diatone Mamba DJI F405 MK2 FC 55A Stack brings BIG power all in a 30.5x30.5 mounting size! This stack can push 55A all while bringing you the latest features! This stack includes the 128K version ESC. The built-in plugin allows you to easily connect to the DJI FPV Air System.

Features

• Easily connect to the DJI FPV Air System.
• 128K PWM

Specifications

MAMBA DJI F405 MK2

• LED Controller: BF LED/MB LED (4 Set 2812 LED)
• BEC:3.3V 0.5A& 5V 3A & (DJI) 9V 3A
• MCU: 168MHz STM32F405RGT6
• Input: 3~6S Lipo (12.6~25.2V)
• ESC Soft: Dshot300/600/1200
• Blackbox: 16M Flash Memory
• MOUNTING: 30.5mm,M3
• TVS Protection: Yes
• ESC Telemetry: Yes
• IMU: MPU6000
• Power Led: Yes
• Barometer: Yes
• Uarts: 6Set
• F.Port: Yes
• RSSI: Yes
• Buzz: Yes
• OSD: Yes

DIATONE MAMBA F55 55A 128K ESC

• Target：BLHeli_32 MAMBA F55_128K
• Input Voltage: 3~6S Lipo 12.6-25.2V
• Mounting Pattern: 30.5mm/M3
• Protocol: Dshot300/600/1200
• Continuous Current: 55A×4
• Burst Current: 65A (10S)
• BLHeli: BLHeli_Suite32
• TVS Protection: Yes
• PWM:24~128K
• BEC: No

Includes

• 1x Diatone Mamba Stack - DJI F405 MK2 FC + F55 55A 128K ESC
• 1x AMASS Original XT60
• 2x 12AWG 100mm Cable
• 1x Mounting Adapter
• 60x Hard Dampers
• 40x Soft Dampers
• 1x Hardware Kit
• 2x 8pin sh1.0
• 1x Capacitor
• 1x DJI 8 Pin
