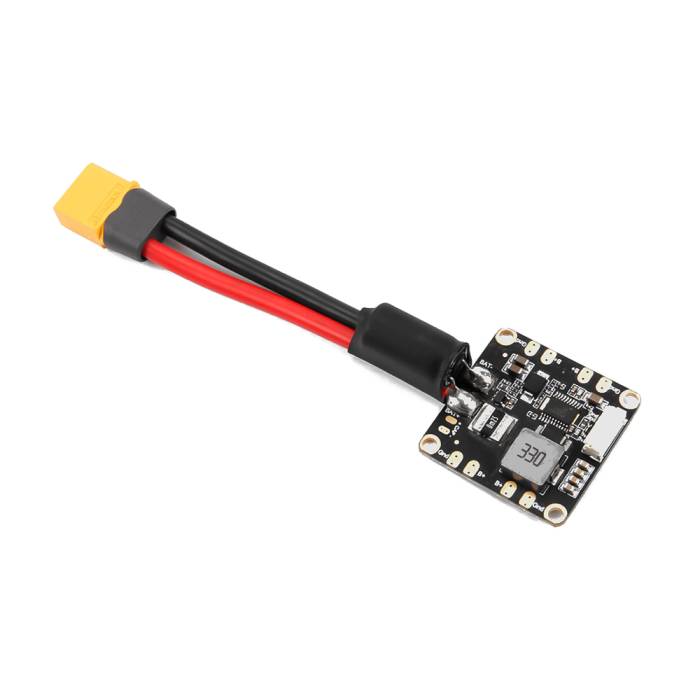

The Holybro PM06 V2 Power Module provides a regulated power supply from the battery, current consumption and battery voltage measurements for the Pixhawk 4, Pixhawk 4 Mini, Durandal, Pix32 V5 and up - all through a 6-Pin cable.

Note: This PM is not compatible with flight controllers that uses Digital PM such as the Pixhawk 5X.

Features

• Powers your Pixhawk 4, Pixhawk 4 Mini, Durandal, Pix32 V5 and up
• 3A Max Output Current
• 3-14S Input Voltage
• Plug & Play

Specifications

• UBEC output current: 3A Max (Note: To ensure proper heat dissipation, UBEC output current needs to be limited to <2A when using 14S battery.)
• Power Module max current: 120A (<60 sec)
• Power Module rated current: 60A
• Mounting hole: 30.5mmx30.5mm
• UBEC output: DC 5.1V~5.3V
• Amperes per Volt: 36.364
• Dimensions: 35x35x5mm
• Voltage Divider: 18.182
• Input voltage: 2S-14S
• Weight: 24g

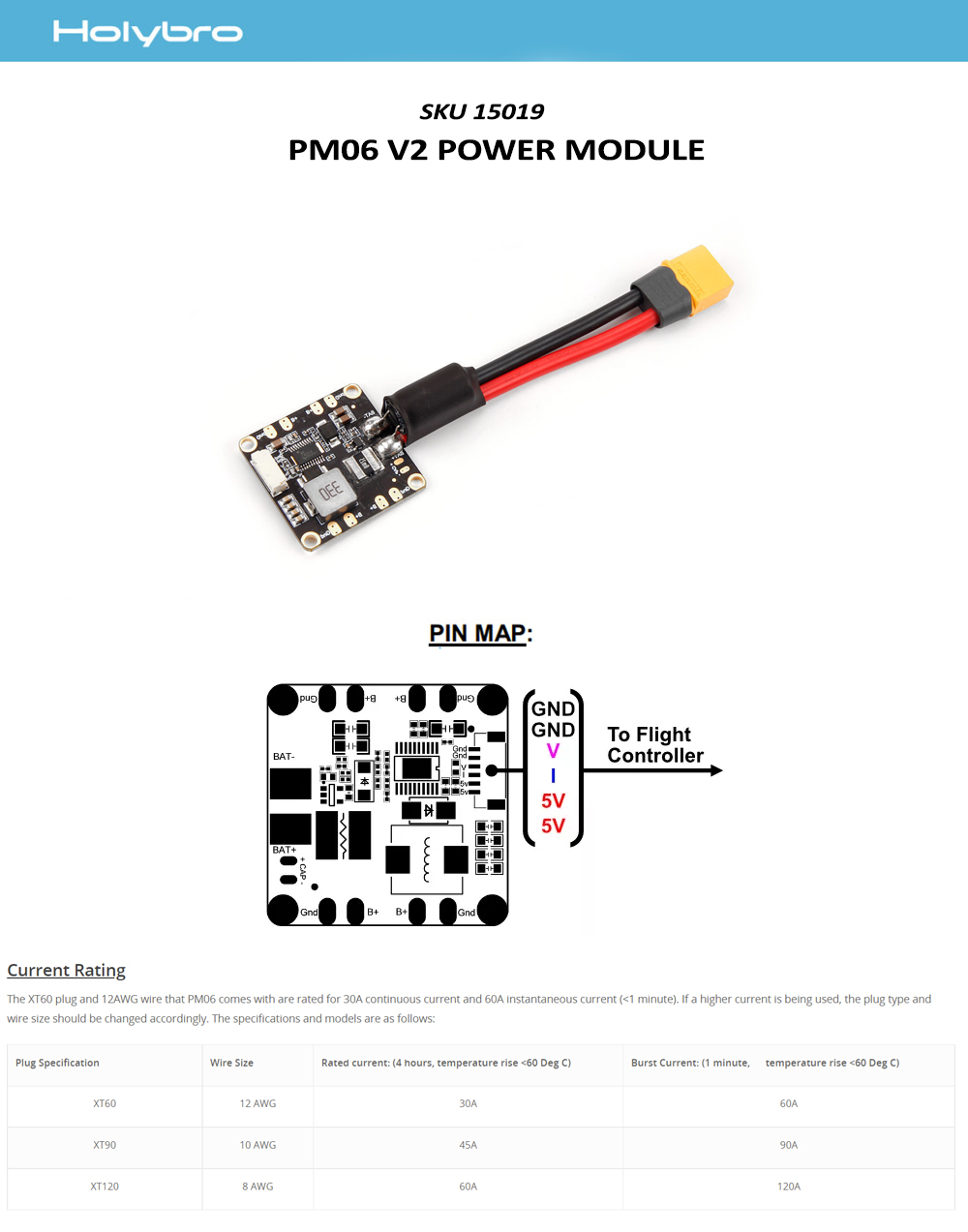

Note: The XT60 plug and 12AWG wire that PM03D comes with is rated for 30A continuous current and 60A instantaneous current (<1 minute). If a higher current is being used, the plug type and wire size should be changed accordingly.

Includes

• 1x Holybro PM06 V2 Power Module (for Analog FC)
• 1x Electrolytic Capacitor: 220uF 63V (Pre-soldered)
• 1x 80mm XT60 Connector wire (Pre-soldered)
• 1x 6-Pin JST GH Cable
