The MATEKSYS PM12S-3 Power Module features 9-55V DC IN (3-12S LiPo), 3x independent Step-Down Voltage Regulators and BEC 5V, 4A continuous, 6A Peak, BEC 12V 4A continuous, 6A Peak and BEC Vx, 5.25V/6V/8V options, 15A cont., 25A Peak 1K:20K voltage divider built-in (Volt 1/21 Input voltage).

Note: If the input voltage is noisy, capacitor is required to be soldered to the input pads.

VIDEO: (Insert Video Title here in Bold)

• BEC Vx, 5.25V/6V/8V options, 15A cont., 25A Peak 1K:20K voltage divider built-in (Volt 1/21 Input voltage)
• 3x independent Step-Down Voltage Regulators
• BEC 12V, 4A continuous, 6A Peak
• BEC 5V, 4A continuous, 6A Peak
• 9-55V DC IN (3-12S LiPo)

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

• BEC Vx: 5.2V / 6V / 8V output options. supports typical continuous output current of up to 15A, Peak current of up to 25A.
• Operating Input Range with TVS protection: 9V to 55V
• Voltage Divider: 1K:20K (Volt = 1/21 Input voltage)
• Voltage Regulators: 3x independent Step-Down
• BEC 12V: (Fixed), 4A continuous
• BEC 5V: (Fixed), 4A continuous

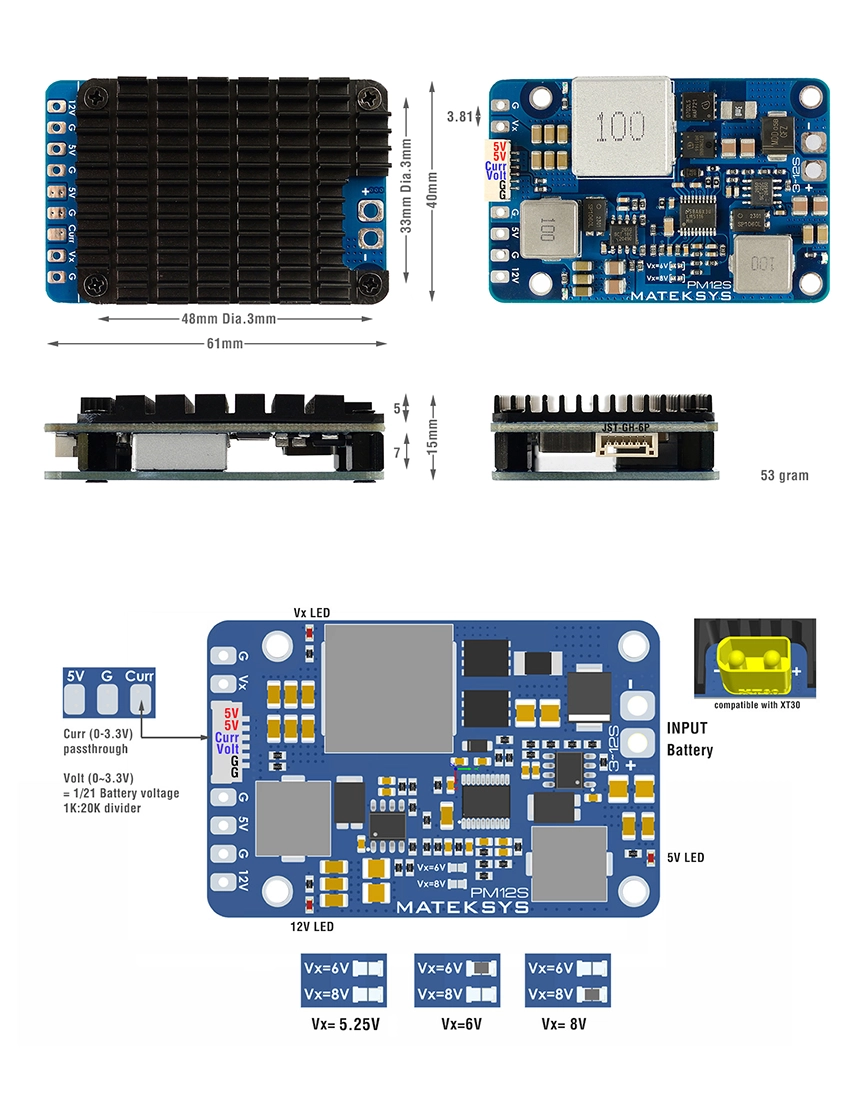

• Size: 61x40x15mm
• Weight: 53g

BEC Vx

• Synchronous switching step-down (or buck) regulator efficiencies: 90% to 96%
• Output ripple: 32mV (VIN=50V, Output 5.25V @ 15A), 43mV (VIN=50V, Output @ 5A)
• Supports typical continuous output current: Up to 15A, Peak current of up to 25A.
• Reverse Input voltage protection: NoOutput voltage tolerance 1.5%
• Output voltage: 5.25V / 6V / 8V options.
• Output Short-circuit tolerance: 2 seconds
• Standby current: 10~20mA

BEC 5V

• Output ripple: 20mV (VIN=24V, Output @ 5A), 50mV (VIN=50V, Output @ 5A)
• Continuous output: current of up to 4A, Peak current of 6A
• Output Short-circuit tolerance: 2 seconds
• Reverse Input voltage protection: No
• Output voltage: 5.2V, tolerance 1.5%

BEC 12V

• Output ripple: 18mV (VIN=24V, Output @ 5A), 32mV (VIN=50V, Output @ 5A)
• Continuous output current: Up to 4A, Peak current of 6A
• Tip: Input voltage >= 13V is required for stable 12V output
• Output Short-circuit tolerance: 2 seconds
• Reverse Input voltage protection: No
• Output voltage: 12V, tolerance 1.5%

IMPORTANT NOTES

• Insert important warnings or notes here. Example: "Do not overheat." or "Always use the included charger for best performance."

•  (Insert recommended products here. Example: "Battery: Lumenier 10000mAh 6s 25c Lipo Battery")

•   (Insert links such as manuals, firmware, etc)

• 1x MATEKSYS PM12S-3 Power Module
• 1x Low ESR capacitor ZLJ 63v 390uf
• 1x PM12S-3
